Vehicle Width And Distance Guide Lines Display Function At Rear View Monitor Display

• The vehicle width and distance guide lines are displayed at the rear view monitor display to allow the driver to more easily judge distances between the vehicle and objects and help the driver back into a parking space.

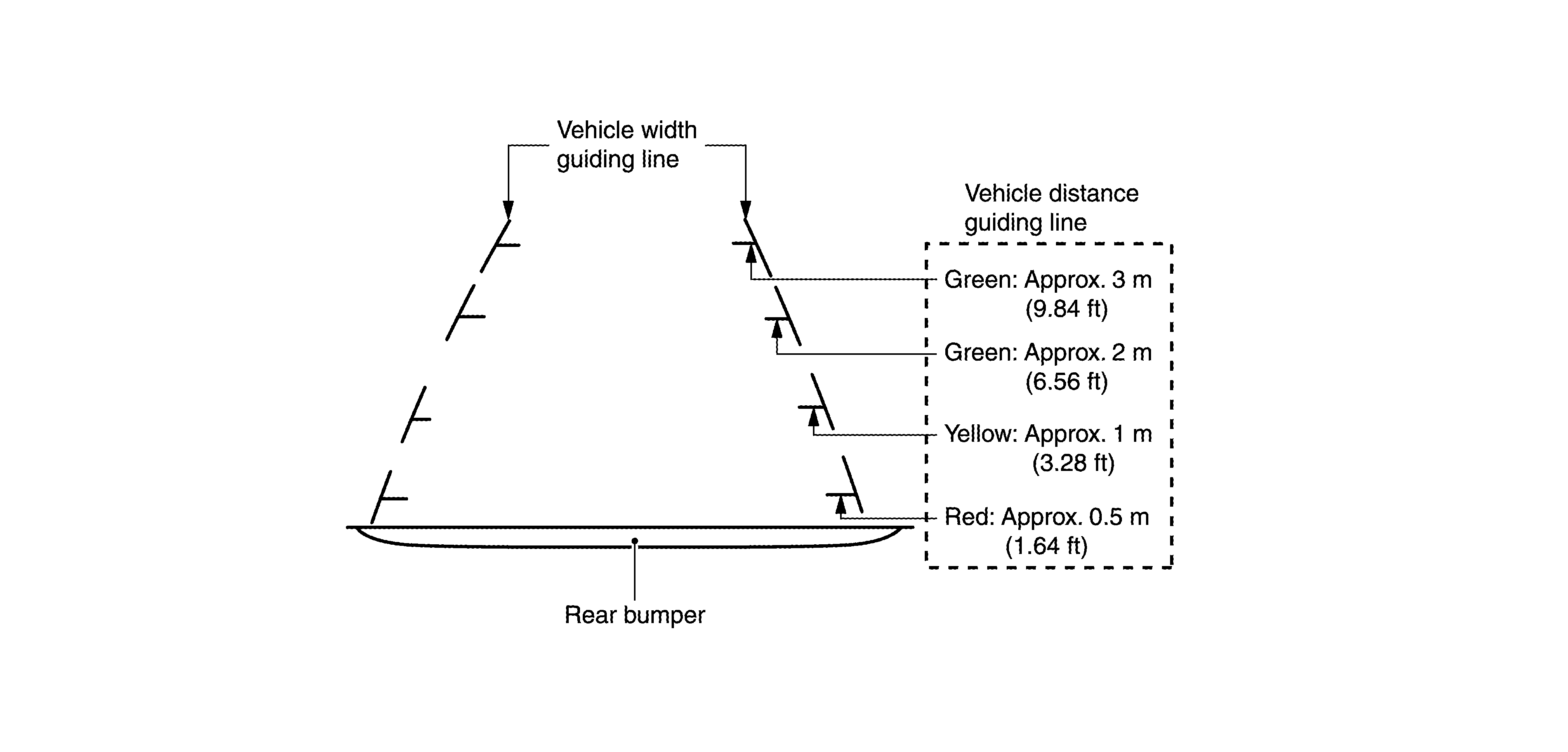

  Fig 1: Vehicle Width And Distance Guide Lines Display Function Diagram

  Courtesy of NISSAN NORTH AMERICA, INC.

Side Distance Guide Lines and Possible Route Lines Display Function at Rear View Monitor Display
