Component Parts Location

WARNING: This page is about a different car, the 2016 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.

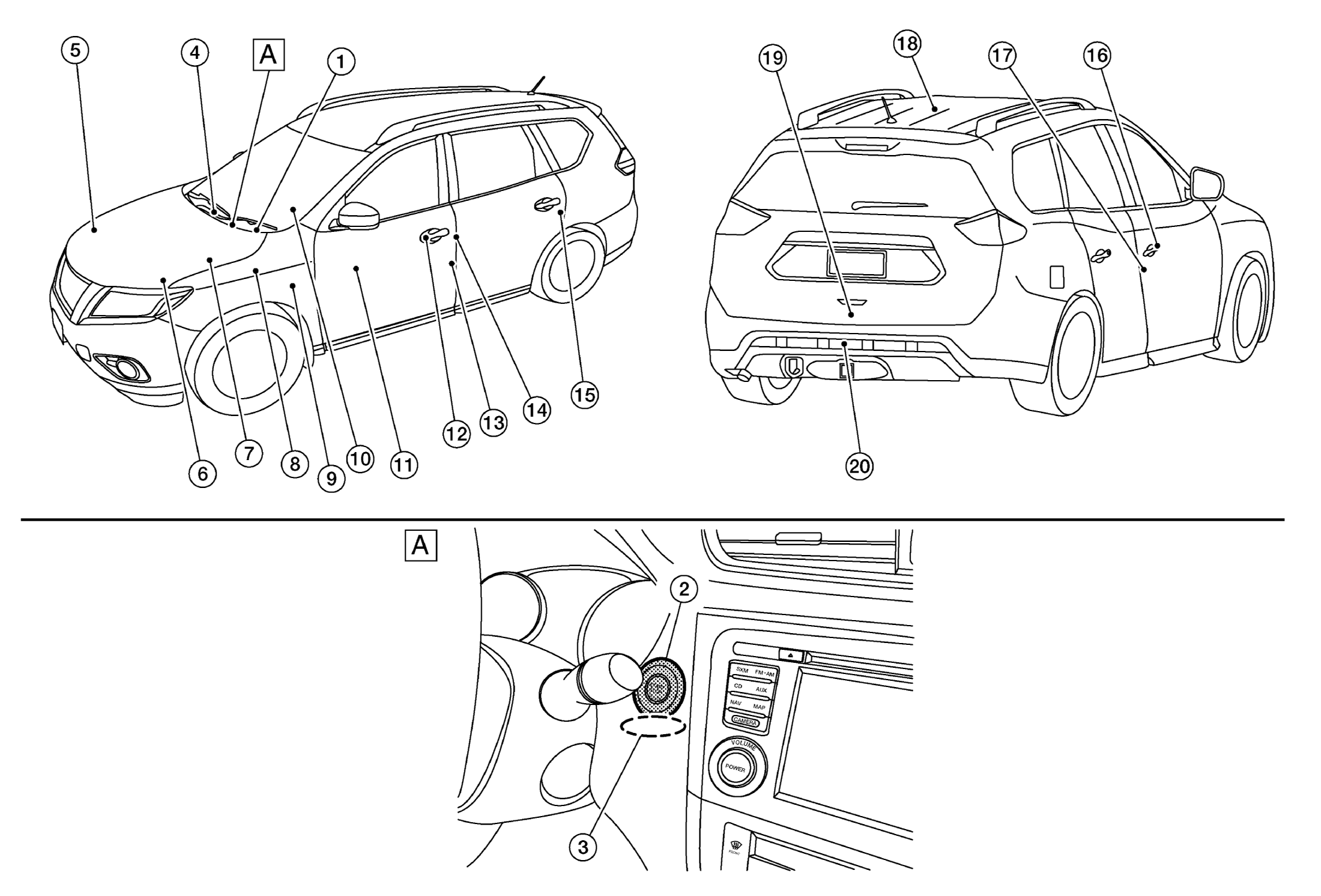

Fig 1: Security Control System (With Intelligent Key) Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

View right of steering column.

No.	Component	Function
1.	Combination meter	Combination meter transmits the vehicle speed signal to BCM via CAN communication. BCM also receives the vehicle speed signal from ABS actuator and electric unit (control unit) via CAN communication. BCM compares both signals to detect the vehicle speed. Security indicator lamp is located on combination meter. Security indicator lamp blinks when ignition switch is in any position other than ON to warn that NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS [NVIS (NATS)] is on board. Refer to COMPONENT PARTS LOCATION .
2.	Push-button ignition switch	Push-button ignition switch has push switch inside which detects that push-button ignition switch is pressed, and then transmits ON/OFF signal to BCM. BCM changes the ignition switch position with the operation of push-button ignition switch. BCM maintains the ignition switch position status while push-button ignition switch is not operated.
3.	NATS antenna amp.	Refer to NATS ANTENNA AMP. .
4.	Inside key antenna (instrument center)	Inside key antenna (instrument center) detects whether Intelligent Key is inside the vehicle or not, and then transmits the signal to the BCM. Refer to INSIDE KEY ANTENNA (INSTRUMENT CENTER) .
5.	Horn	Horn is operated when the panic button on the Intelligent Key is pressed or the alarm is activated.
6.	Transmission range switch	Refer to TRANSMISSION RANGE SWITCH .
7.	IPDM E/R	Refer to COMPONENT PARTS LOCATION .
8.	Stop lamp switch	Refer to STOP LAMP SWITCH .
9.	BCM	BCM controls INTELLIGENT KEY SYSTEM (ENGINE START FUNCTION), NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS [NVIS (NATS)] and VEHICLE SECURITY SYSTEM. BCM performs the ID verification between BCM and Intelligent Key when the Intelligent Key is carried into the detection area of inside key antenna, and push-button ignition switch is pressed. If the ID verification result is OK, ignition switch operation is available. Then, when the ignition switch is turned ON, BCM performs ID verification between BCM and ECM. If the ID verification result is OK, ECM can start engine. Refer to COMPONENT PARTS LOCATION for detailed installation location.
10.	CVT shift selector	Refer to COMPONENT PARTS LOCATION .
11.	Main power window and door lock/unlock switch (Front power window and door lock/unlock switch RH similar)	Door lock and unlock switch is integrated into the main power window and door lock/unlock switch. Door lock and unlock switch transmits door lock/unlock operation signal to BCM. Refer to MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH .
12.	Outside key antenna LH	Outside key antenna (LH) detects whether Intelligent Key is outside the vehicle or not, and then transmits the signal to the BCM. Refer to OUTSIDE KEY ANTENNA (LH) .
13.	Front door lock assembly LH	Door key cylinder switch is integrated into front door lock assembly (driver side). Door key cylinder switch detects door LOCK/UNLOCK operation using mechanical key, and then transmits the operation signal to BCM. Refer to FRONT DOOR LOCK ASSEMBLY (LH) .
14.	Front door switch LH	Door switch detects door open/close condition and then transmits ON/OFF signal to BCM.
15.	Rear door switch LH (rear door switch RH similar)	Door switch detects door open/close condition and then transmits ON/OFF signal to BCM.
16.	Outside key antenna RH	Outside key antenna (RH) detects whether Intelligent Key is outside the vehicle or not, and then transmits the signal to the BCM. Refer to OUTSIDE KEY ANTENNA (RH) .
17.	Front door switch RH	Door switch detects door open/close condition and then transmits ON/OFF signal to BCM.
18.	Inside key antenna (console)	Inside key antenna (console) detects whether Intelligent Key is inside the vehicle or not, and then transmits the signal to the BCM. Refer to INSIDE KEY ANTENNA (CONSOLE) .
19.	Back door lock assembly	Back door lock actuator locks/unlocks the back door latch assembly.
20.	Outside key antenna (rear bumper)	Outside key antenna (Rear bumper) detects whether Intelligent Key is outside the vehicle or not, and then transmits the signal to the BCM. Refer to OUTSIDE KEY ANTENNA (REAR BUMPER) .
