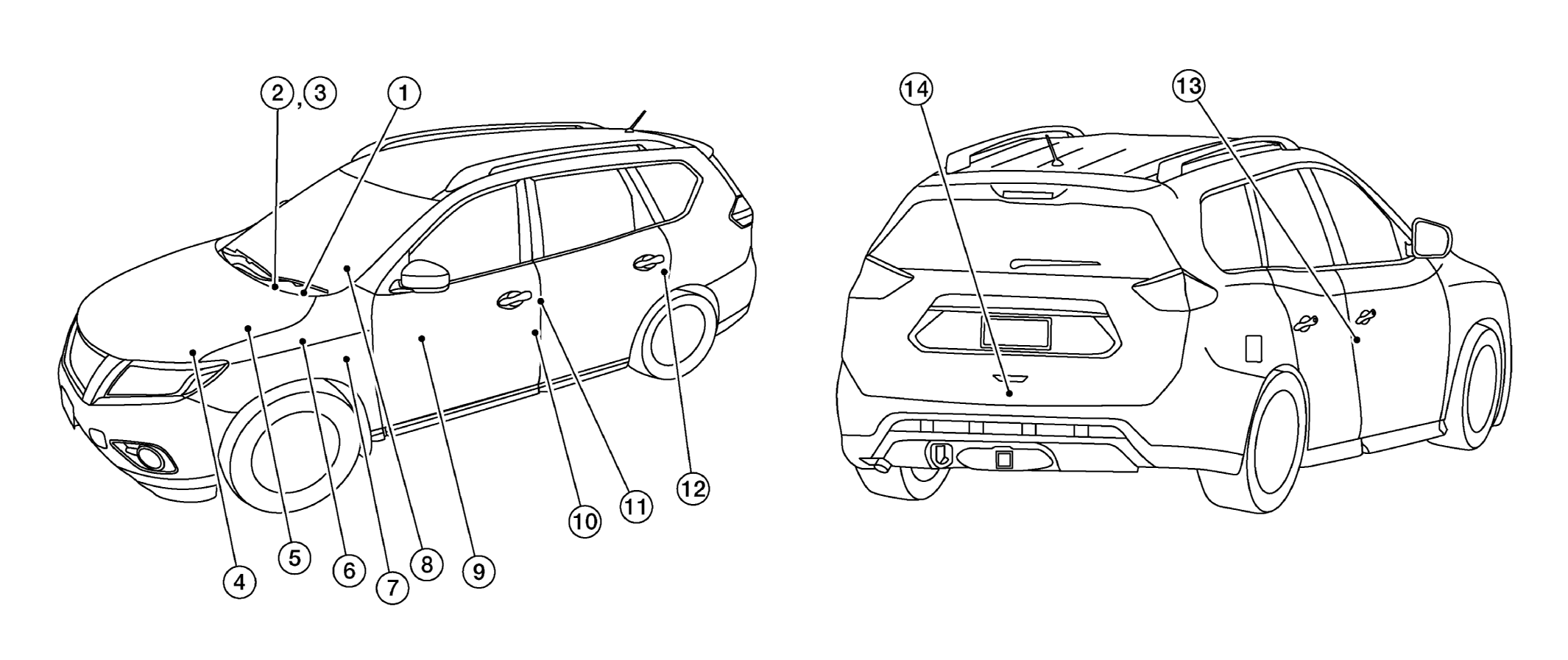

Component Parts Location
WARNING: This page is about a different car, the 2016 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.
| No. | Component | Function |
|---|---|---|
| 1. | Combination meter | Combination meter transmits the vehicle speed signal to BCM via CAN communication. BCM also receives the vehicle speed signal from ABS actuator and electric unit (control unit) via CAN communication. BCM compares both signals to detect the vehicle speed. Security indicator lamp is located on combination meter. Security indicator lamp blinks when ignition switch is in any position other than ON to warn that NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS [NVIS (NATS)] is on board. Refer to COMPONENT PARTS LOCATION . |
| 2. | Ignition switch | Ignition switch transmits ON/OFF signal to BCM. BCM changes the ignition switch position with the operation of ignition switch. |
| 3. | NATS antenna amp. | Refer to NATS ANTENNA AMP. . |
| 4. | Transmission range switch | Refer to TRANSMISSION RANGE SWITCH . |
| 5. | IPDM E/R | Refer to COMPONENT PARTS LOCATION . |
| 6. | Stop lamp switch | Refer to STOP LAMP SWITCH . |
| 7. | BCM | BCM controls NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS [NVIS (NATS)] and VEHICLE SECURITY SYSTEM. Then, when the ignition switch is turned ON, BCM performs ID verification between BCM and ECM. If the ID verification result is OK, ECM can start engine. Refer to COMPONENT PARTS LOCATION for detailed installation location. |
| 8. | CVT shift selector | Refer to COMPONENT PARTS LOCATION . |
| 9. | Main power window and door lock/unlock switch | Door lock and unlock switch is integrated into the main power window and door lock/unlock switch. Door lock and unlock switch transmits door lock/unlock operation signal to BCM. Refer to MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH . |
| 10. | Front door lock assembly LH | Door key cylinder switch is integrated into front door lock assembly (driver side). Door key cylinder switch detects door LOCK/UNLOCK operation using mechanical key, and then transmits the operation signal to BCM. Refer to FRONT DOOR LOCK ASSEMBLY (DRIVER SIDE) . |
| 11. | Front door switch LH | Door switch detects door open/close condition and then transmits ON/OFF signal to BCM. |
| 12. | Rear door switch LH | Door switch detects door open/close condition and then transmits ON/OFF signal to BCM. |
| 13. | Front door switch RH | Door switch detects door open/close condition and then transmits ON/OFF signal to BCM. |
| 14. | Back door lock assembly | Back door lock actuator locks/unlocks the back door latch assembly. |
