Terminal Layout

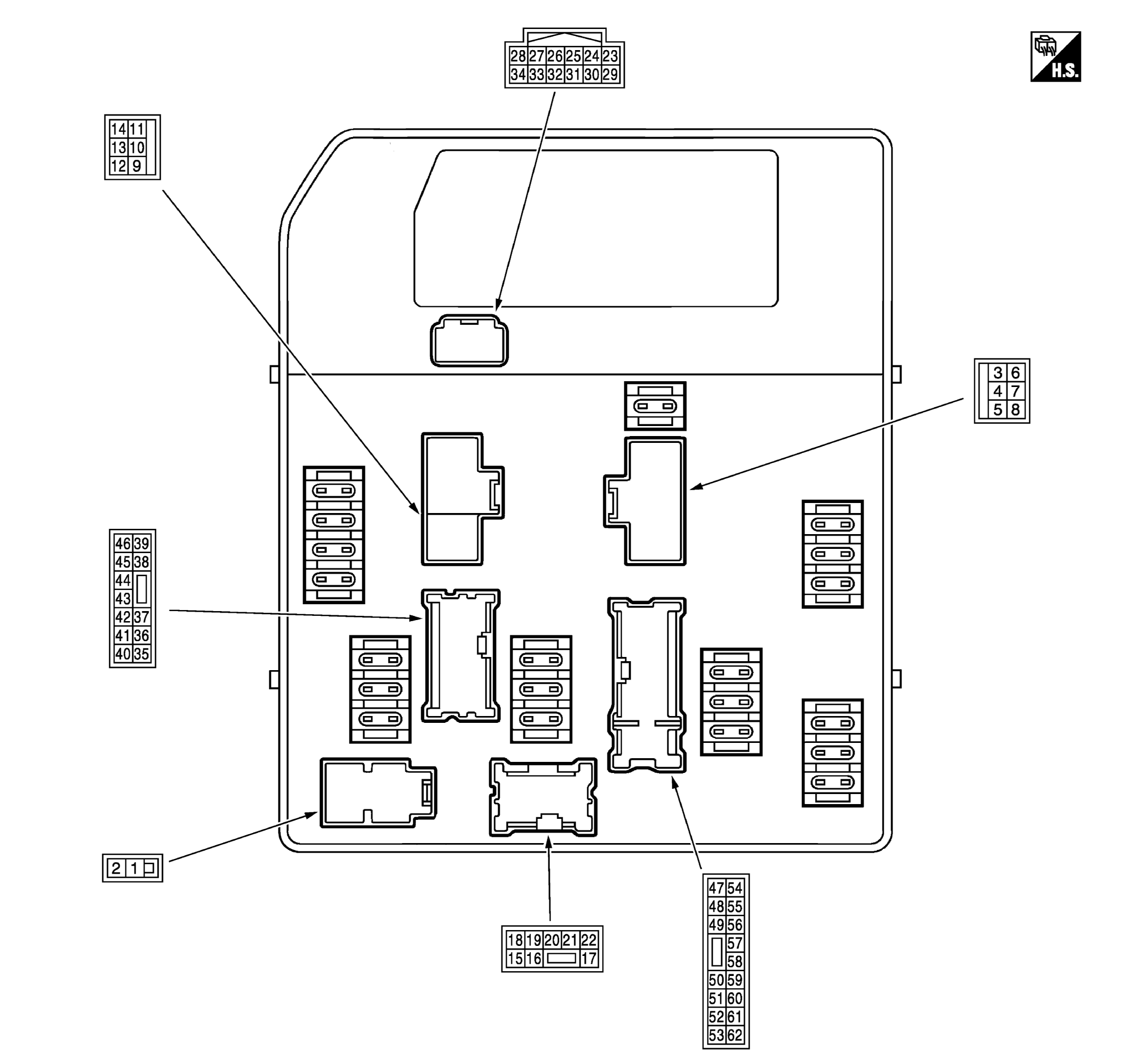

Fig 1: IPDM E/R (Intelligent Power Distribution Module Engine Room) Terminals Layout
G07135638Courtesy of NISSAN NORTH AMERICA, INC.
