Diagnostic Test

Turn ignition switch OFF, and restart engine.

Does the engine start?

YES-1

With CONSULT: GO TO STEP 2  .

YES-2

Without CONSULT: GO TO STEP 3  .

NO

Go to DIAGNOSIS PROCEDURE .

With CONSULT

1. Perform "POWER BALANCE" in "ACTIVE TEST" mode with CONSULT.
2. Check that each circuit produces a momentary engine speed drop.

Is the inspection result normal?

YES

INSPECTION END

NO

Go to DIAGNOSIS PROCEDURE .

Without CONSULT

1. Let engine idle.
2. Read the voltage signal between ECM harness connector and ground.

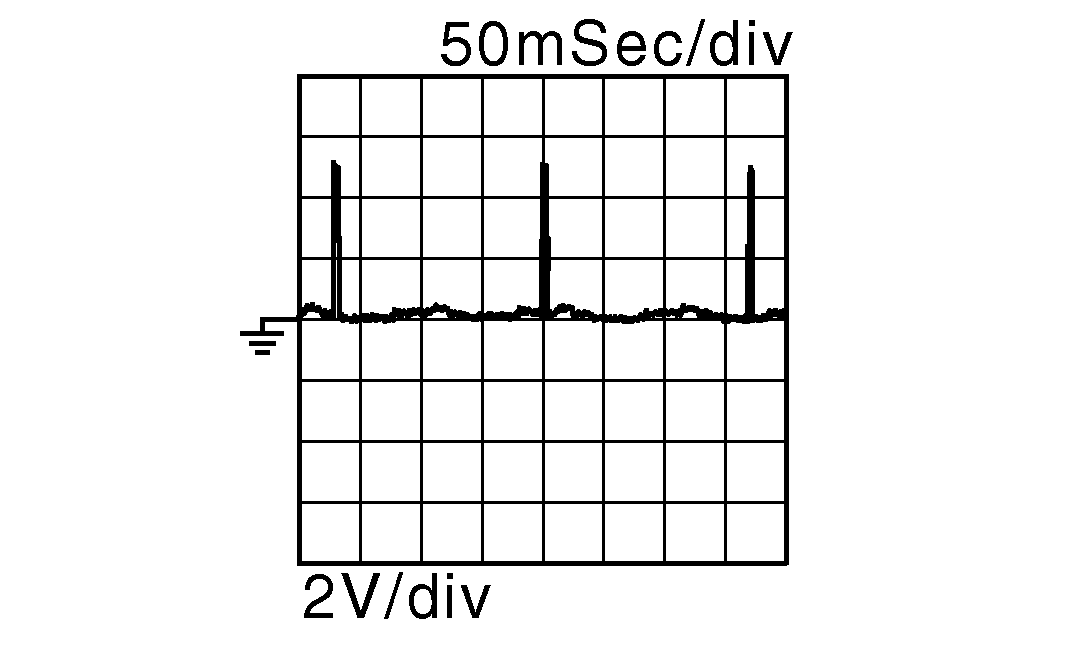

   ECM		Ground	Voltage signal
   Connector	Terminal
   F7	9	Ground	Courtesy of NISSAN NORTH AMERICA, INC.
   	10
   	11
   	21

   NOTE:

   The pulse cycle changes depending on RPM at idle.

Is the inspection result normal?

YES

INSPECTION END

NO

Go to DIAGNOSIS PROCEDURE .
