Component Parts Location

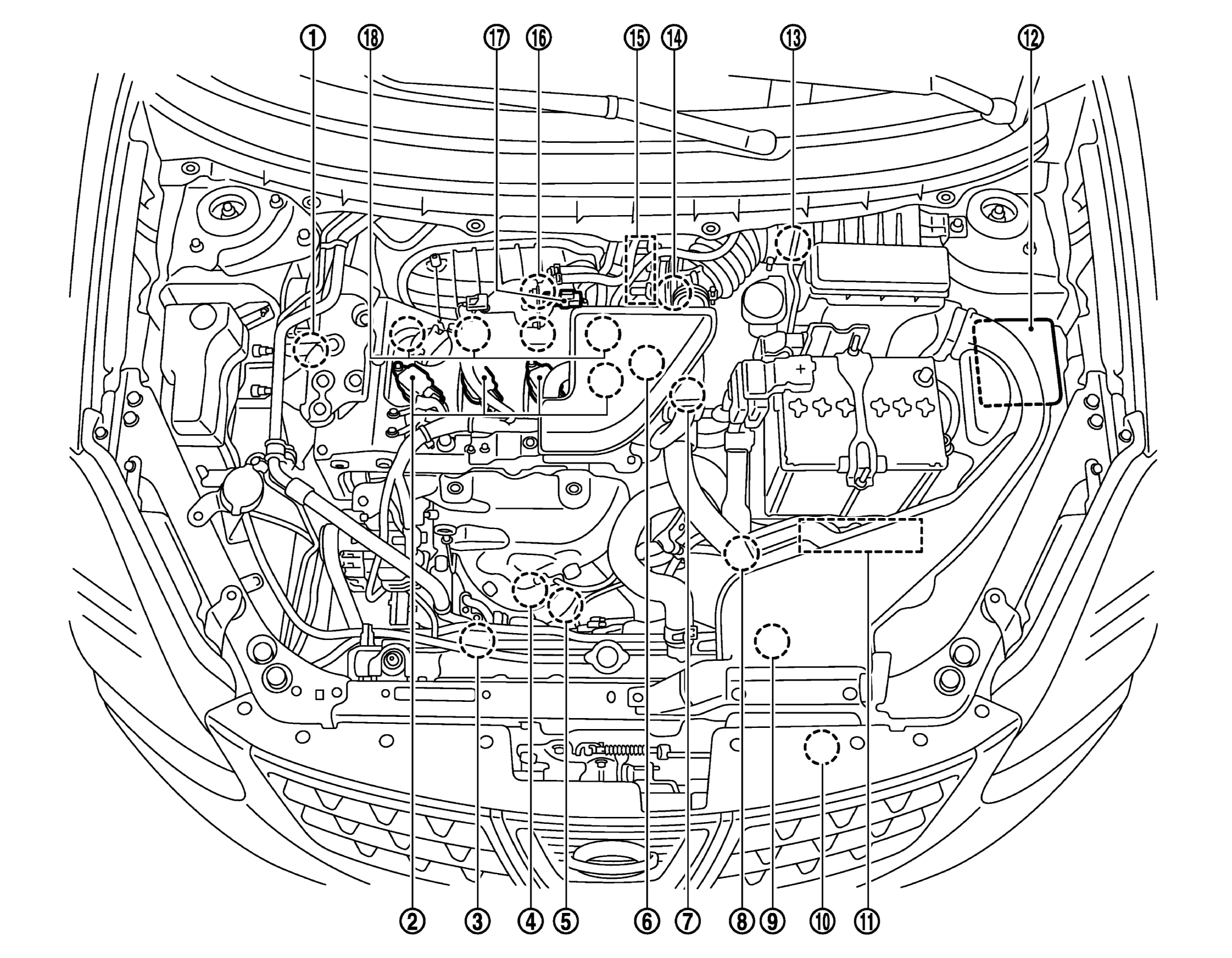

Fig 1: Automatic Speed Control Device (ASD) System Components Location

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Intake valve timing control solenoid valve	2.	Ignition coil (with power transistor) and spark plug	3.	Cooling fan motor-2
4.	Air fuel ratio (A/F) sensor 1	5.	Heated oxygen sensor 2	6.	Camshaft position sensor (PHASE)
7.	Engine coolant temperature sensor	8.	Transmission range switch	9.	Cooling fan motor-1
10.	Refrigerant pressure sensor	11.	ECM	12.	IPDM E/R
13.	Mass air flow sensor (with intake air temperature sensor)	14.	Crankshaft position sensor (POS)	15.	Electric throttle control actuator (with built in throttle position sensor and throttle control motor)
16.	Knock sensor	17.	EVAP canister purge volume control solenoid valve	18.	Fuel injector

Fig 2: View Of Electric Throttle Control Actuator And Camshaft Position Sensor (PHASE) Component Locations

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Electric throttle control actuator	2.	Camshaft position sensor (PHASE)
	Vehicle front

Fig 3: Mass Air Flow Sensor And Engine Coolant Temperature Sensor Component Locations

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Mass air flow sensor (with intake air temperature sensor)	2.	Engine coolant temperature sensor
	Vehicle front

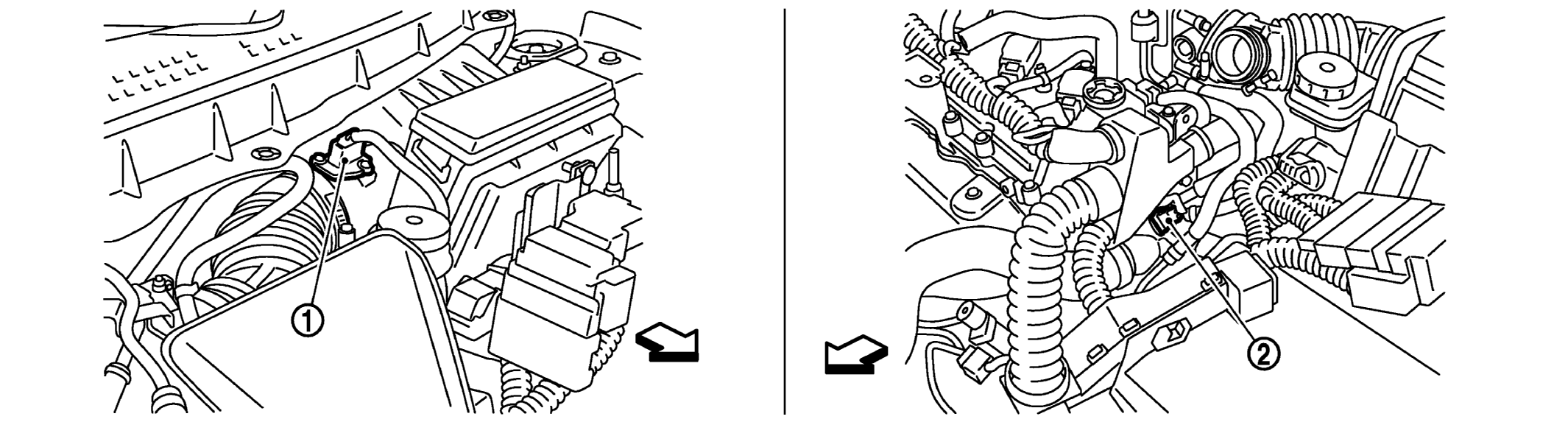

Fig 4: Cooling Fan Motor 1 And 2 With Harness Connector Component Locations

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Cooling fan motor-1 harness connector	2.	Cooling fan motor-1	3.	Cooling fan motor-2 harness connector
4.	Cooling fan motor-2	5.	Crankshaft position sensor (POS)
	Vehicle front

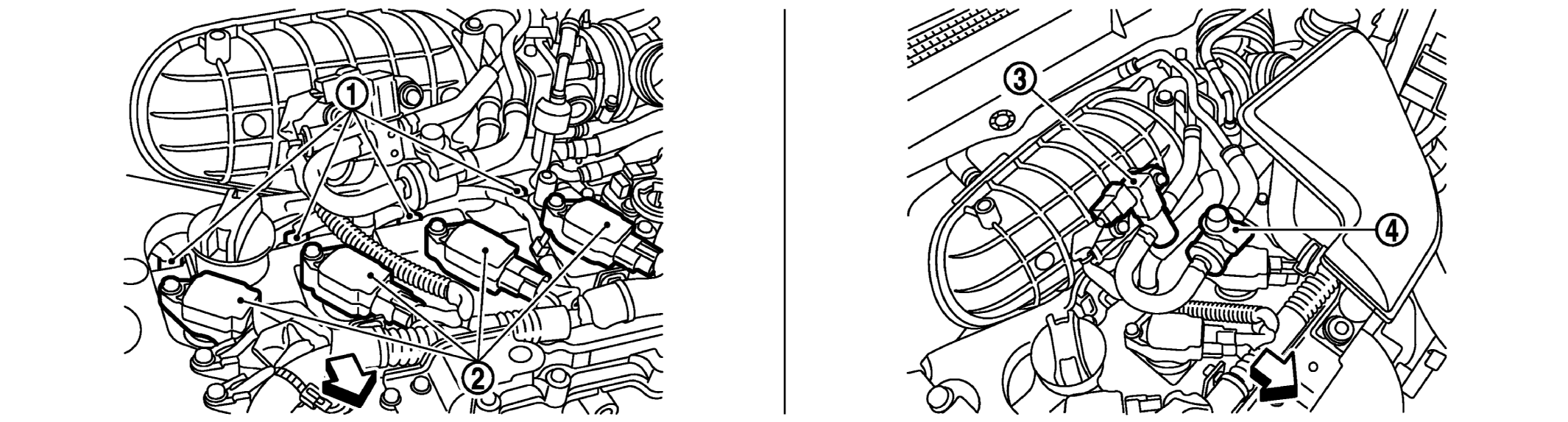

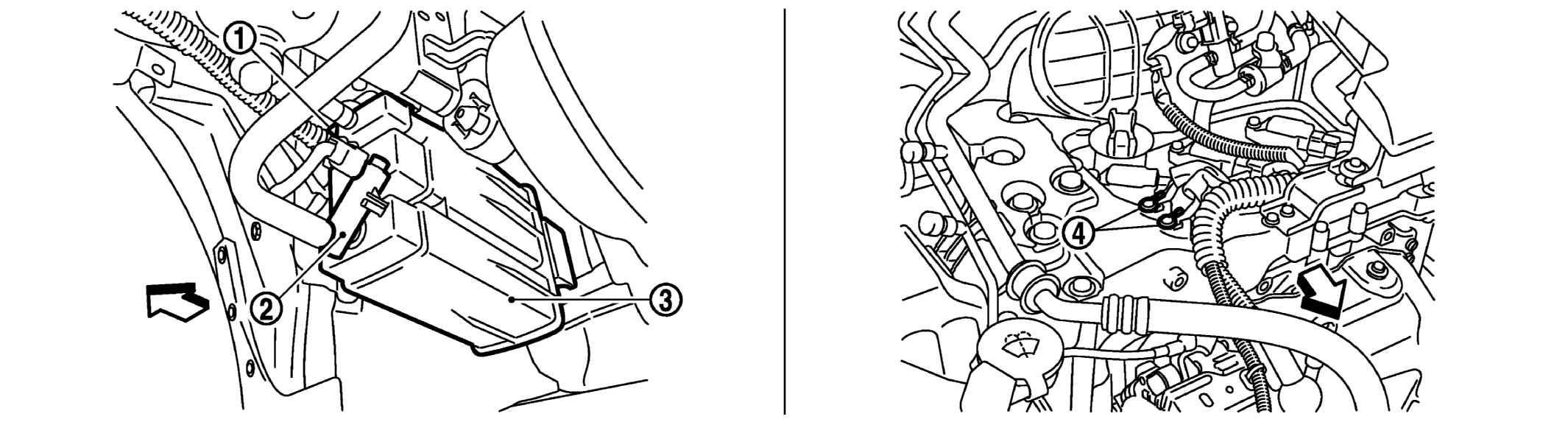

Fig 5: View Of Fuel Injector, Ignition Coil And EVAP Canister Purge Volume Control Solenoid Valve Component Locations

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Fuel injector	2.	Ignition coil (with power transistor) and spark plug	3.	EVAP canister purge volume control solenoid valve
4.	EVAP service port
	Vehicle front

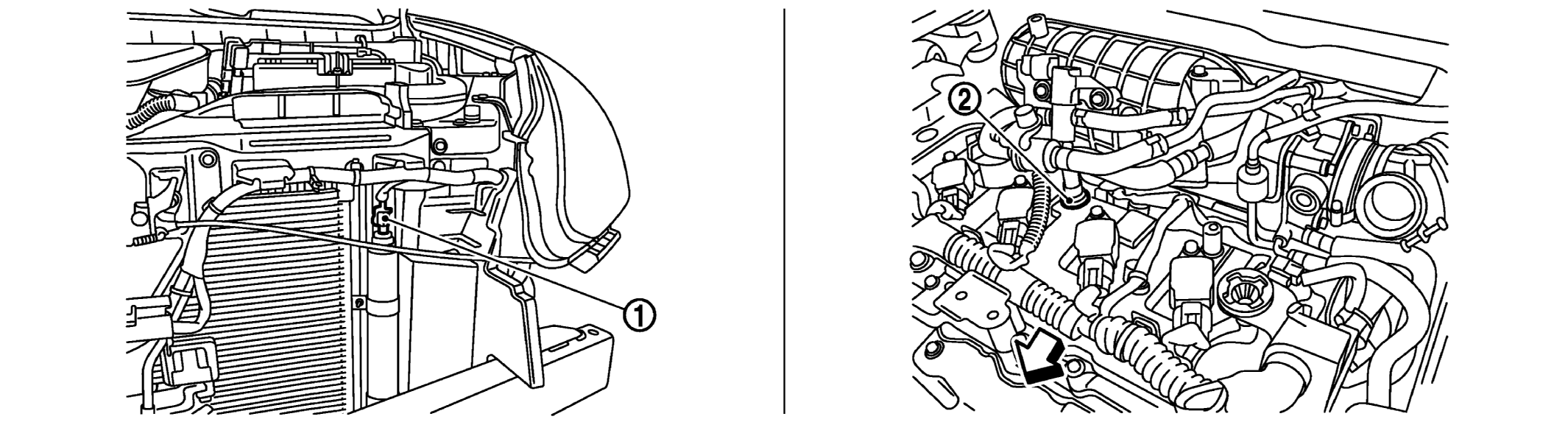

Fig 6: View Of Refrigerant Pressure Sensor And PCV Valve Component Locations

Courtesy of NISSAN NORTH AMERICA, INC.

Refrigerant pressure sensor

PCV valve

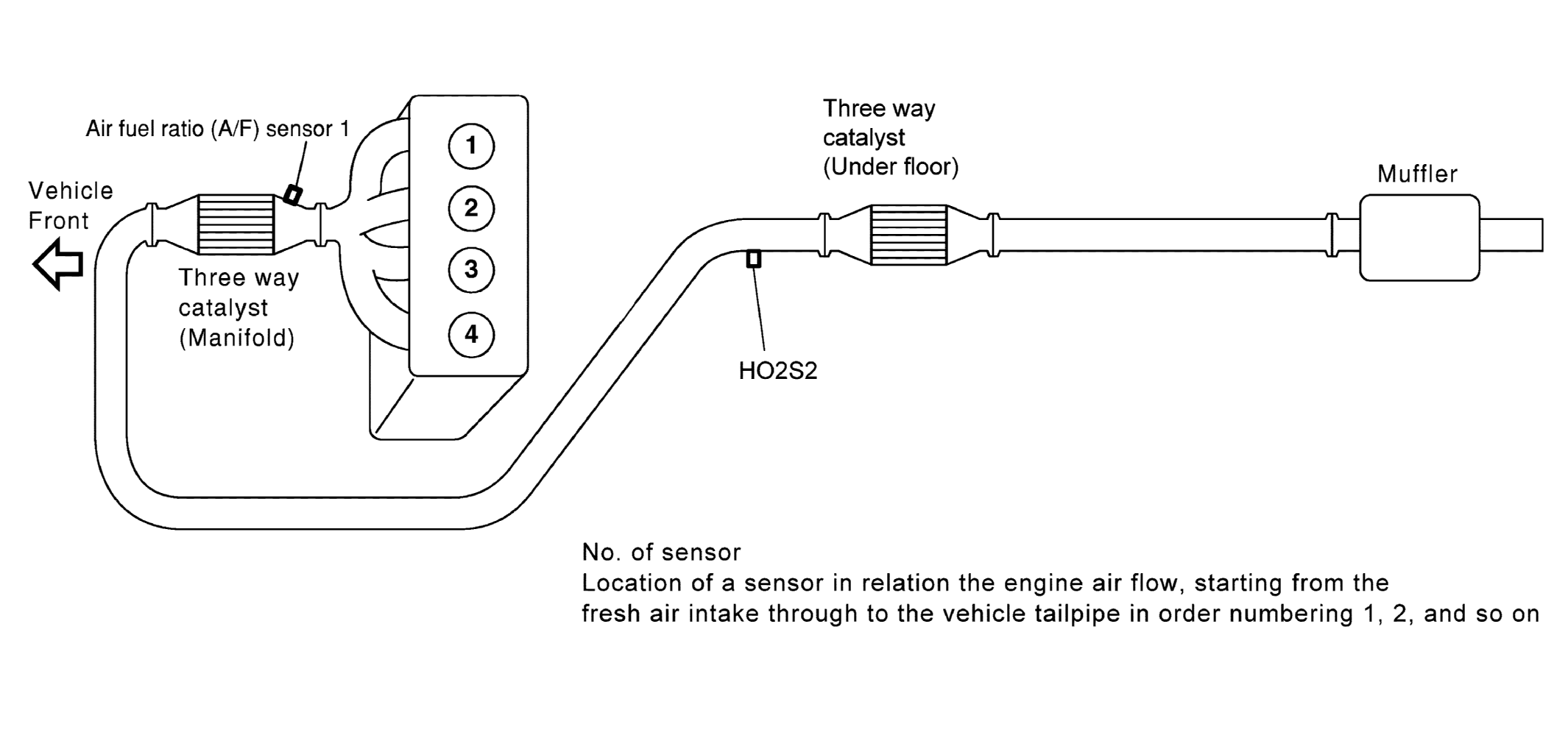

Fig 7: Location Of Sensor Relation With Engine Airflow

Courtesy of NISSAN NORTH AMERICA, INC.

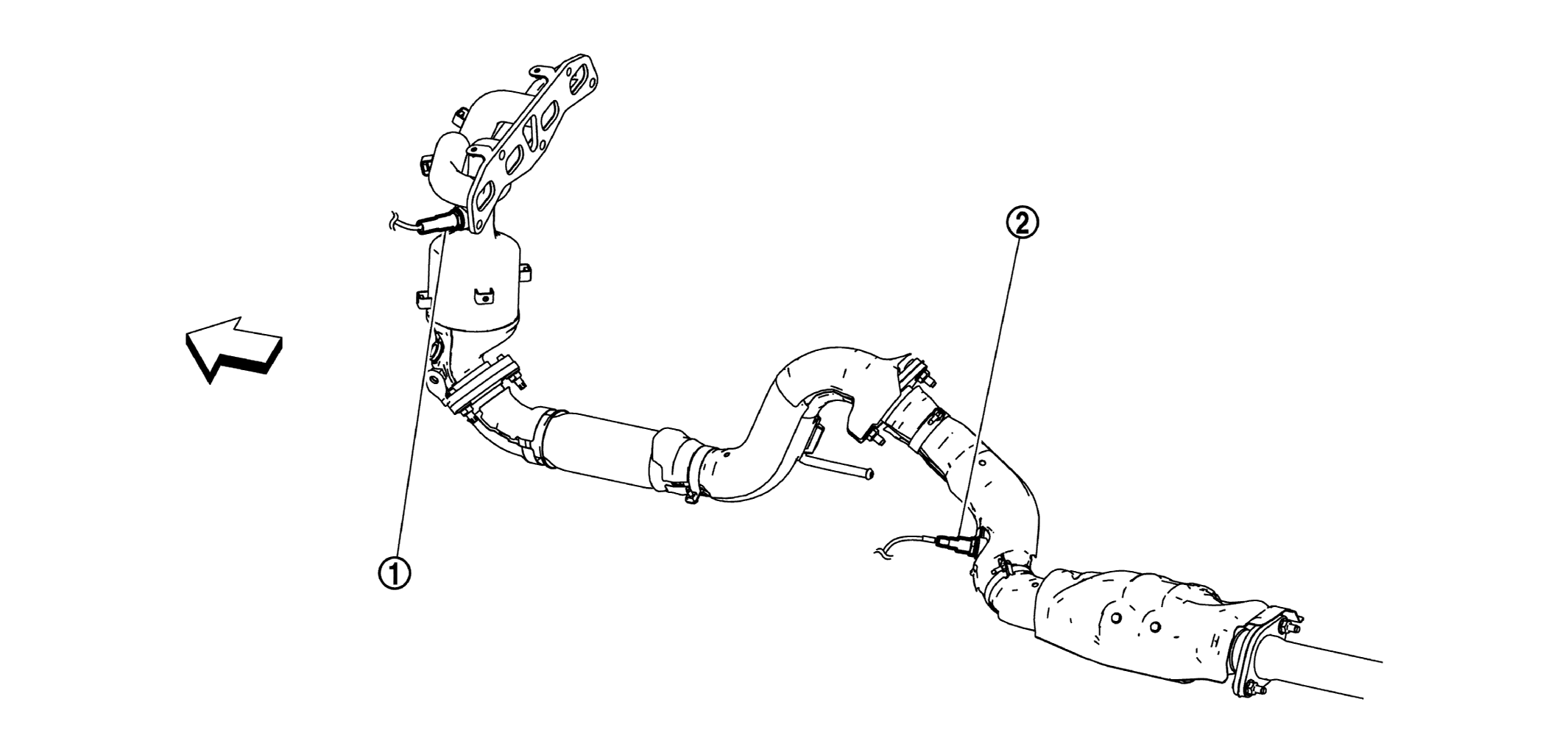

Fig 8: Catalytic Converter and Sensor Components Location

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Air fuel ratio (A/F) sensor 1	2.	Heated oxygen sensor 2
	Vehicle front

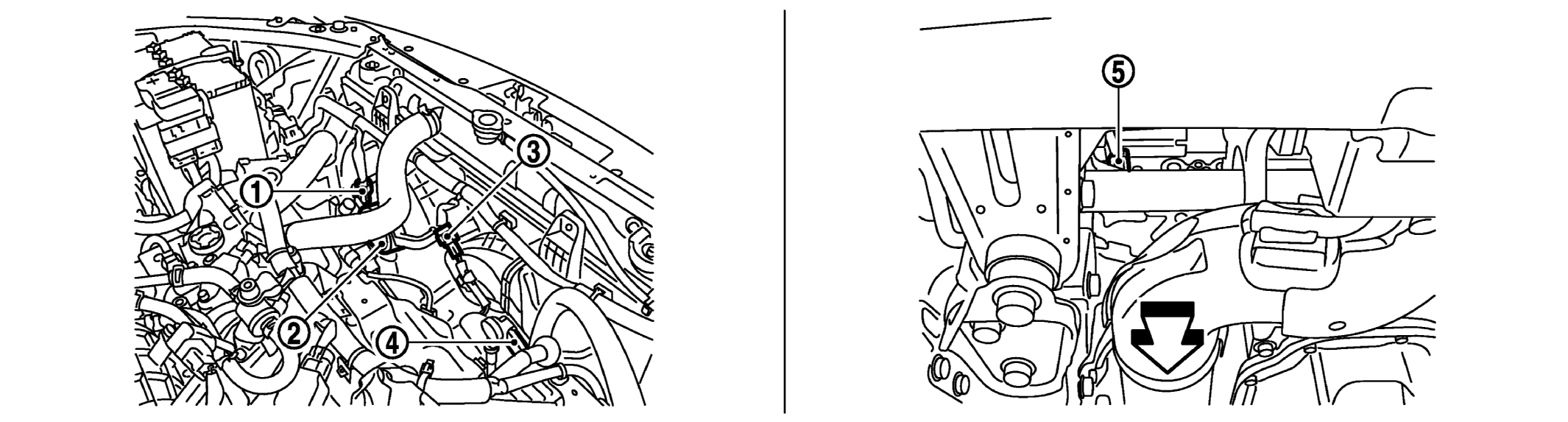

Fig 9: View Of EVAP Control System Pressure Sensor, Canister Vent Control Valve And EVAP Canister Component Locations

Courtesy of NISSAN NORTH AMERICA, INC.

1.	EVAP control system pressure sensor	2.	EVAP canister vent control valve	3.	EVAP canister
4.	Body ground
	Vehicle front

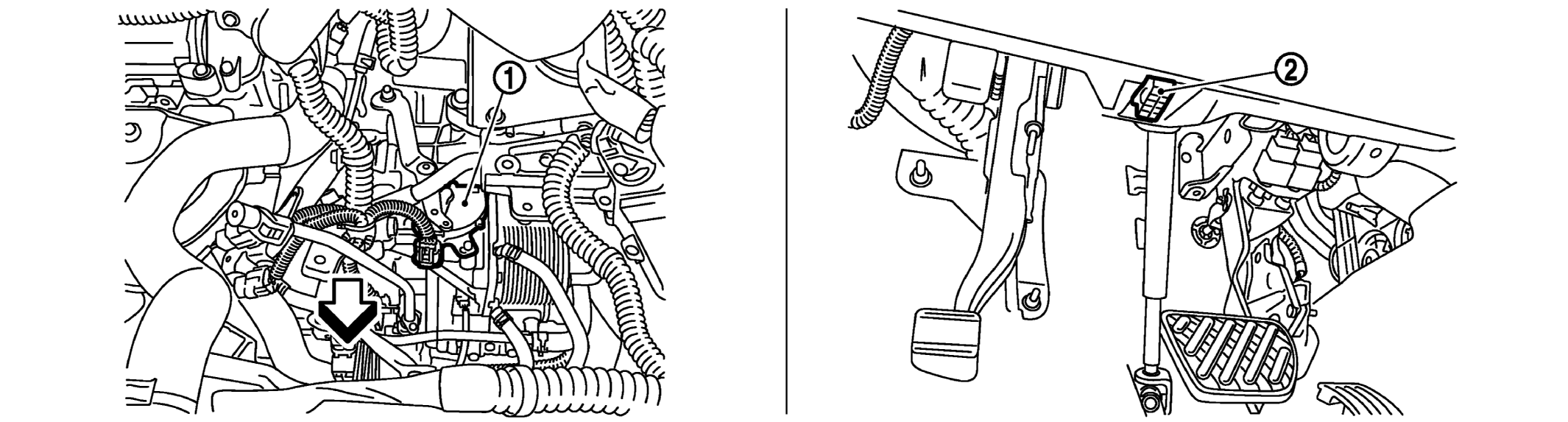

Fig 10: View Of Transmission Range Switch And Data Link Connector Component Locations

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Transmission range switch	2.	Data link connector
	Vehicle front

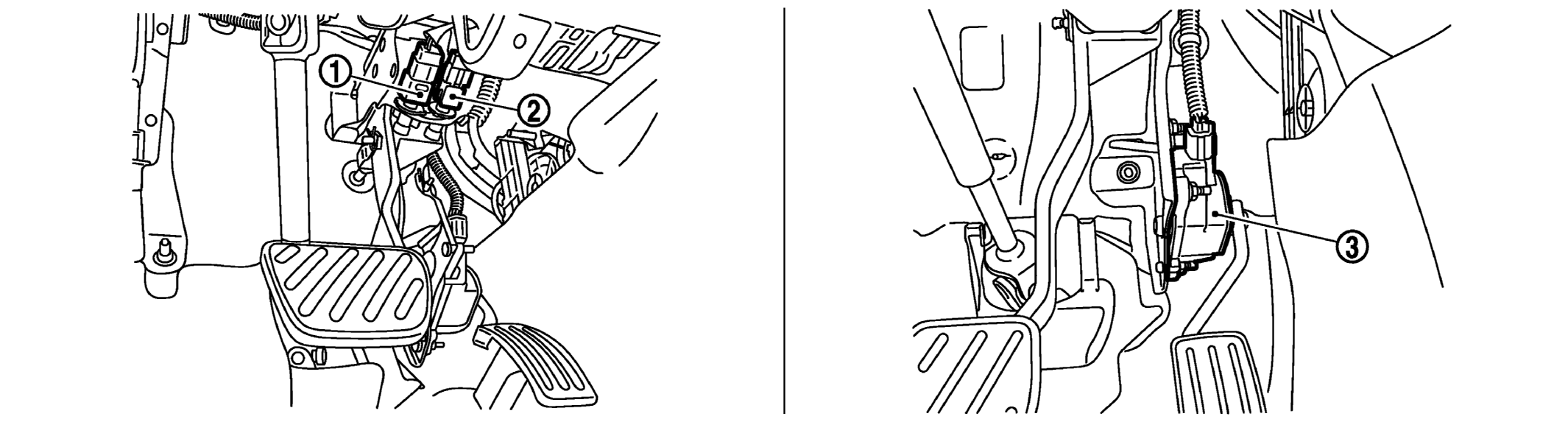

Fig 11: Locating Stop Lamp Switch, ASD Brake Switch And Accelerator Pedal Position Sensor Component Locations

Courtesy of NISSAN NORTH AMERICA, INC.

Stop lamp switch

ASD brake switch

Accelerator pedal position sensor

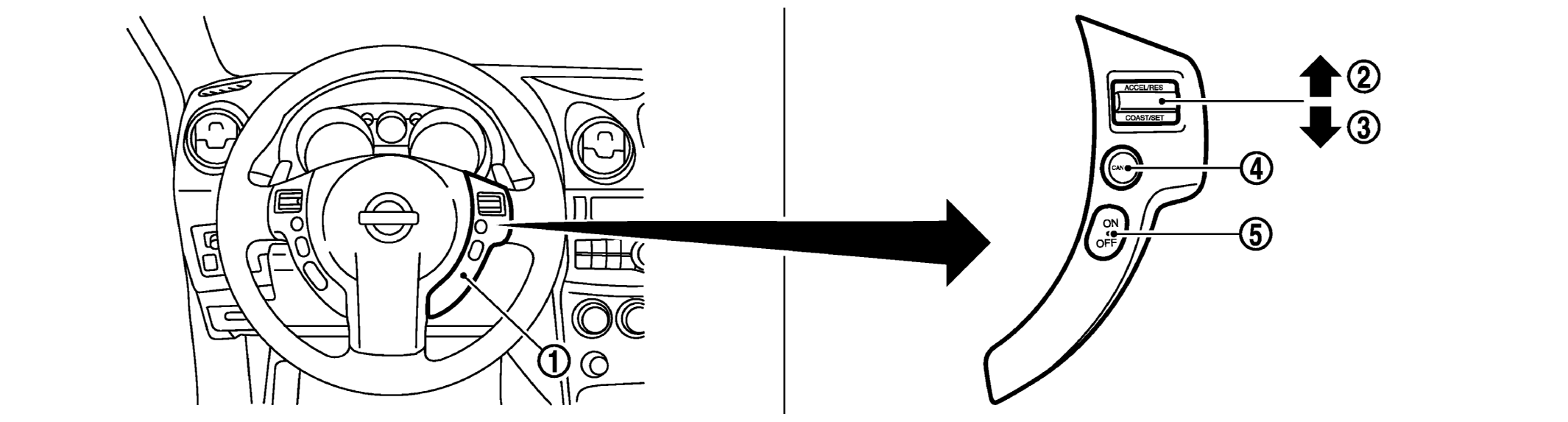

Fig 12: Location Of ASD Steering, Resume/Accelerate And Set/Coast Switch Components

Courtesy of NISSAN NORTH AMERICA, INC.

1.	ASD steering switch	2.	RESUME/ACCELERATE switch	3.	SET/COAST switch
4.	CANCEL switch	5.	MAIN switch

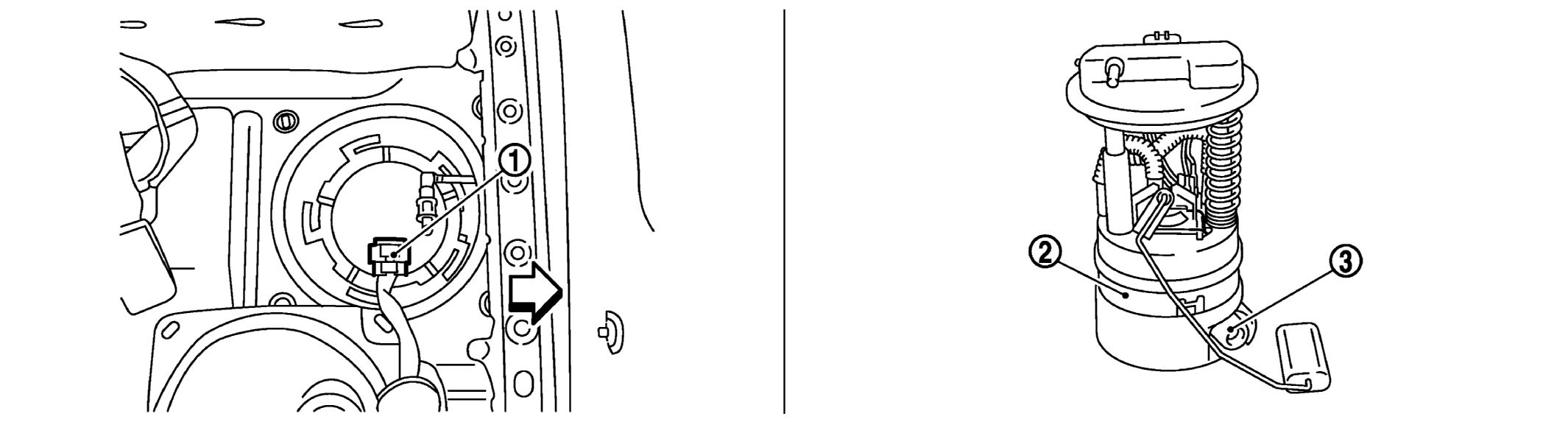

Fig 13: View Of Fuel Level Sensor Unit And Fuel Pump And Fuel Pressure Regulator Component Locations

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Fuel level sensor unit and fuel pump harness connector	2.	Fuel level sensor unit and fuel pump	3.	Fuel pressure regulator
	Vehicle front
