Exploded View With Torque Specifications

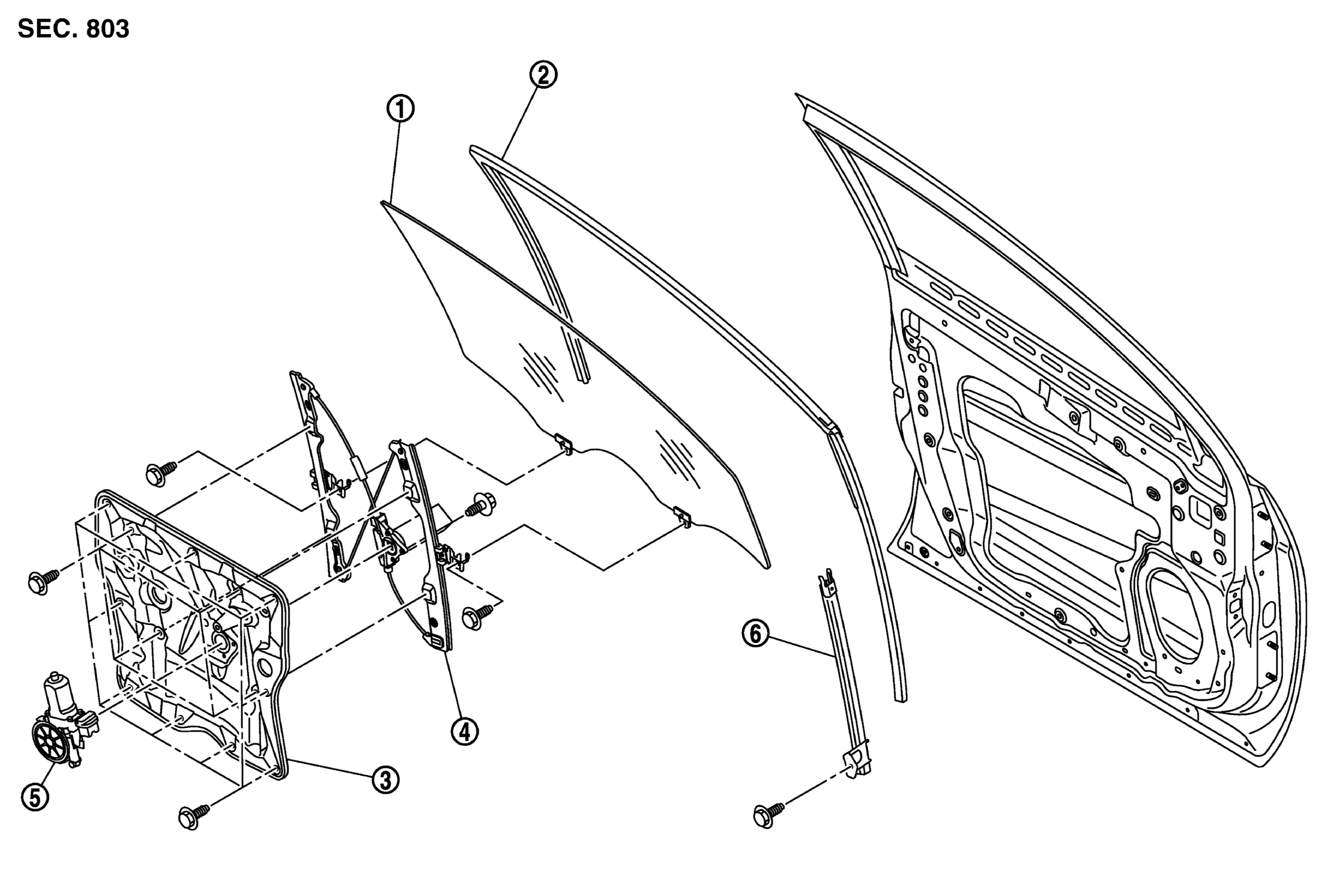

Fig 1: Exploded View Of Front Regulator

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Door glass	2.	Door glass run	3.	Module base
4.	Regulator assembly	5.	Power window motor	6.	Front door lower sash
NOTE: The door panel on the right is for your reference.
