Exploded View With Torque Specifications

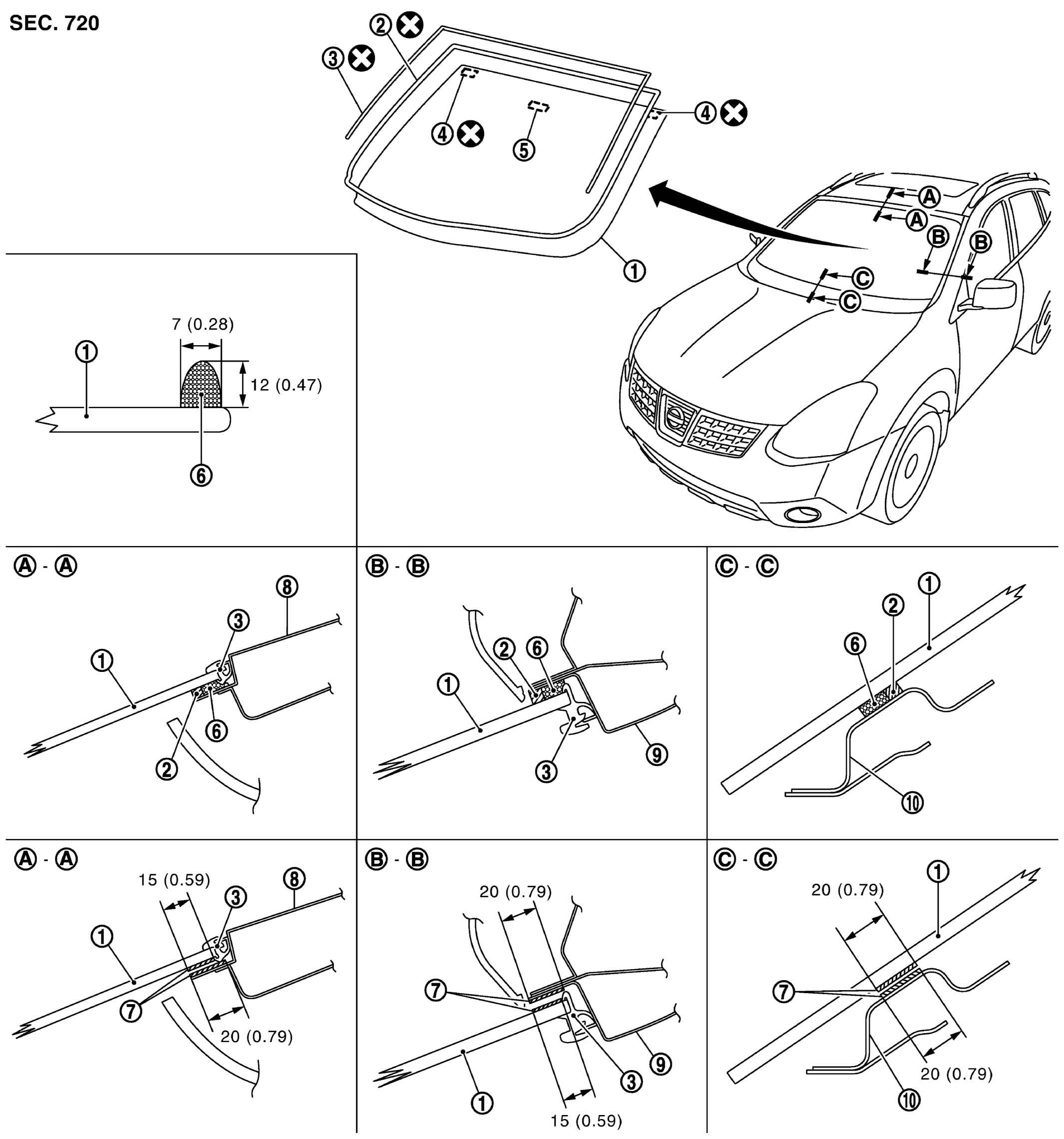

Fig 1: Exploded View Of Windshield Glass

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Windshield glass	2.	Dam rubber	3.	Windshield molding
4.	Spacer	5.	Mirror base	6.	Adhesive
7.	Primer	8.	Roof panel	9.	Body side outer panel
10.	Cowl top
	: Always replace after every disassembly.
Unit	: mm (in)
