Exploded View With Torque Specifications

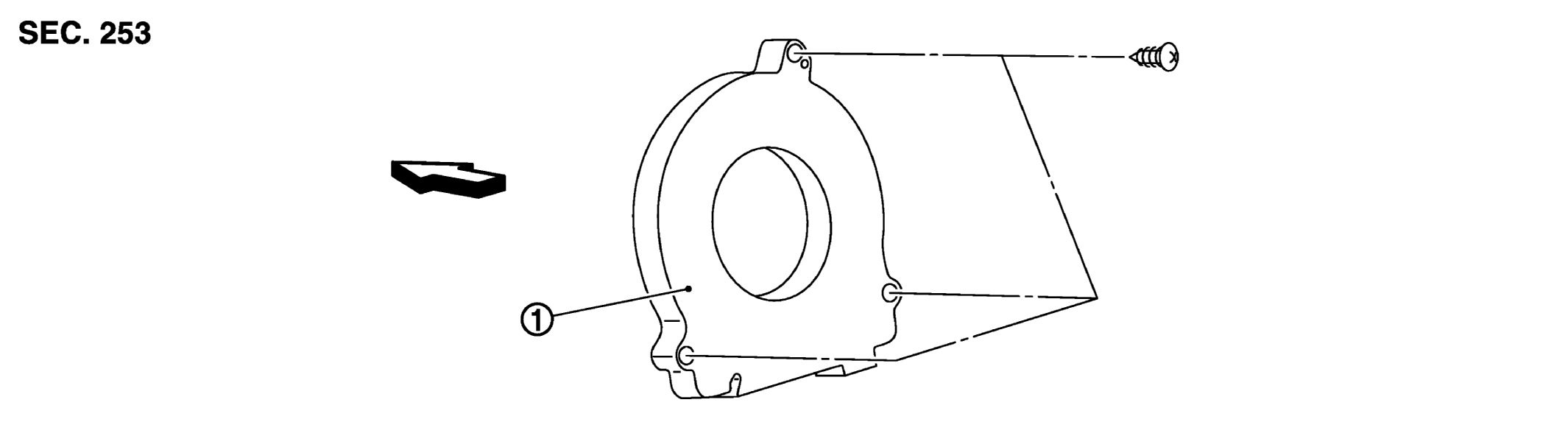

Fig 1: Steering Angle Sensor
GNSJSFIA0099ZZ-099Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering angle sensor
ARROW : Vehicle front
