Exploded View With Torque Specifications

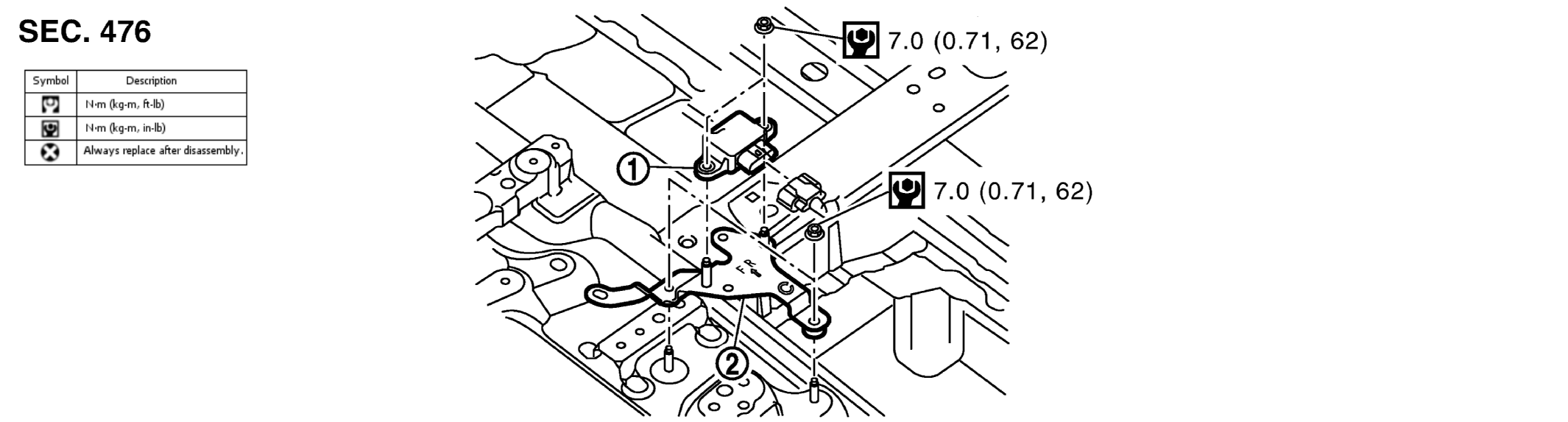

Fig 1: Yaw Rate/Side/Decel G Sensor With Torque Specifications
GNSJSFIA0166GB-166Courtesy of NISSAN NORTH AMERICA, INC.
1. yaw rate/side/decel G sensor 2. Bracket
ARROW : Vehicle front
BOLTIN : N•m (kg - m, in - lb)
