Disassembly And Assembly: Assembly

Note the following, and assemble in the reverse order of disassembly.

• Install oil pump inner rotor with the groove faced to oil pump cover side.

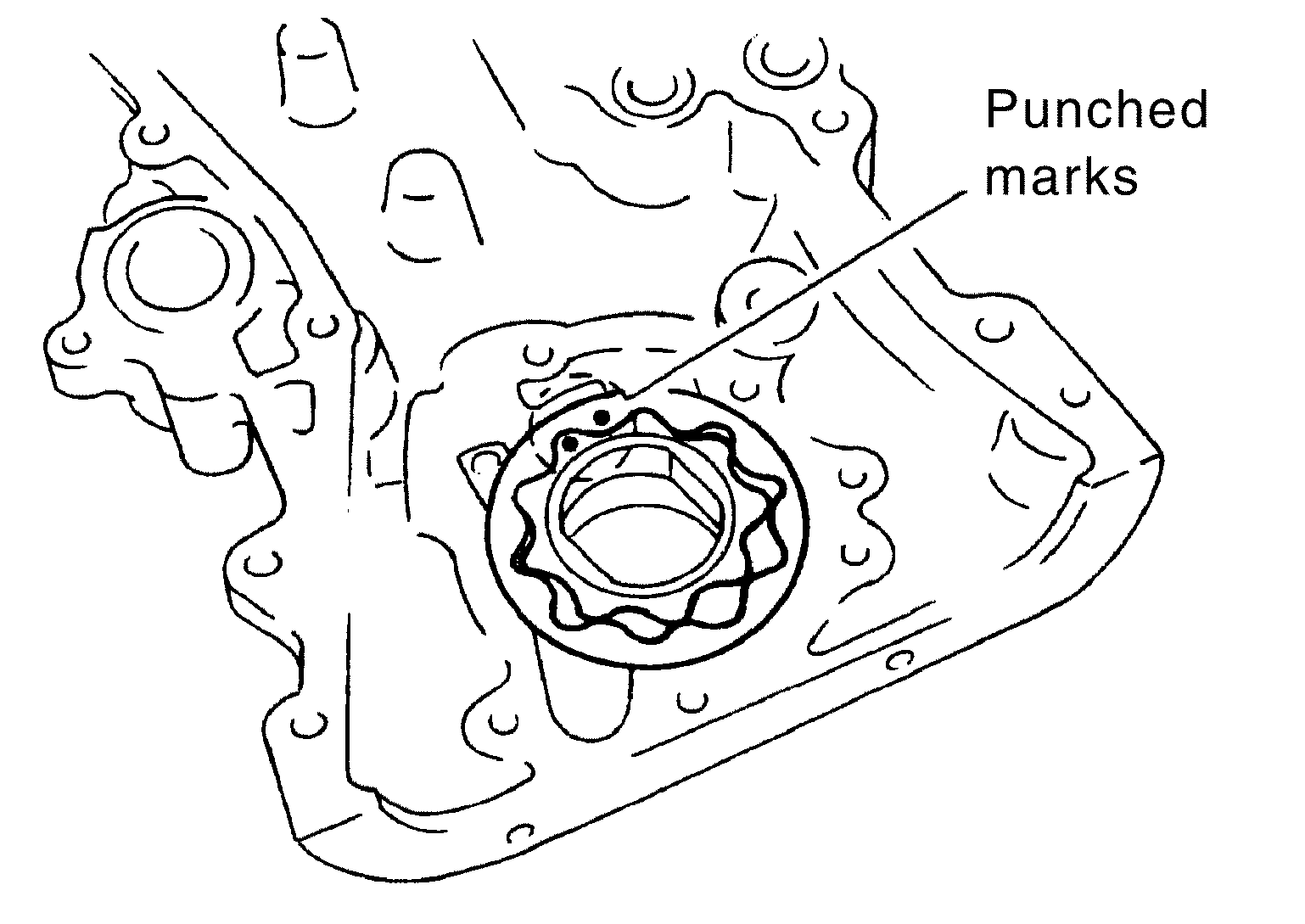

  Fig 1: Punched Marks On Oil Pump Cover Side

  Courtesy of NISSAN NORTH AMERICA, INC.
