Exploded View With Torque Specifications

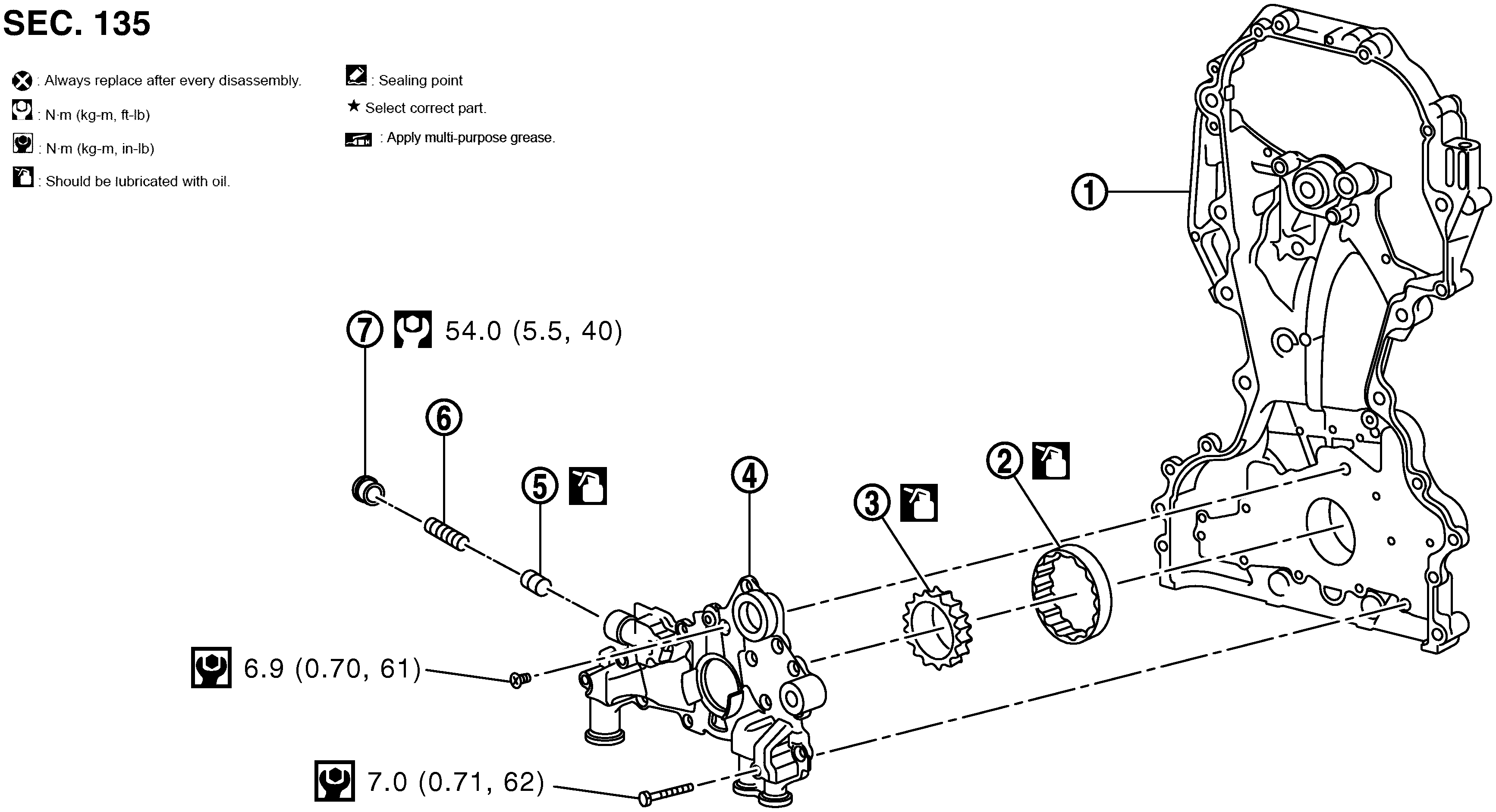

Fig 1: Exploded View Of Oil Pump With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front cover (Oil pump body united)	2.	Outer rotor	3.	Inner rotor
4.	Oil pump cover	5.	Regulator valve	6.	Regulator valve spring
7.	Regulator valve plug
: N•m (kg-m, ft-lb)
: N•m (kg-m, in-lb)
: Should be lubricated with oil.
