Exploded View With Torque Specifications

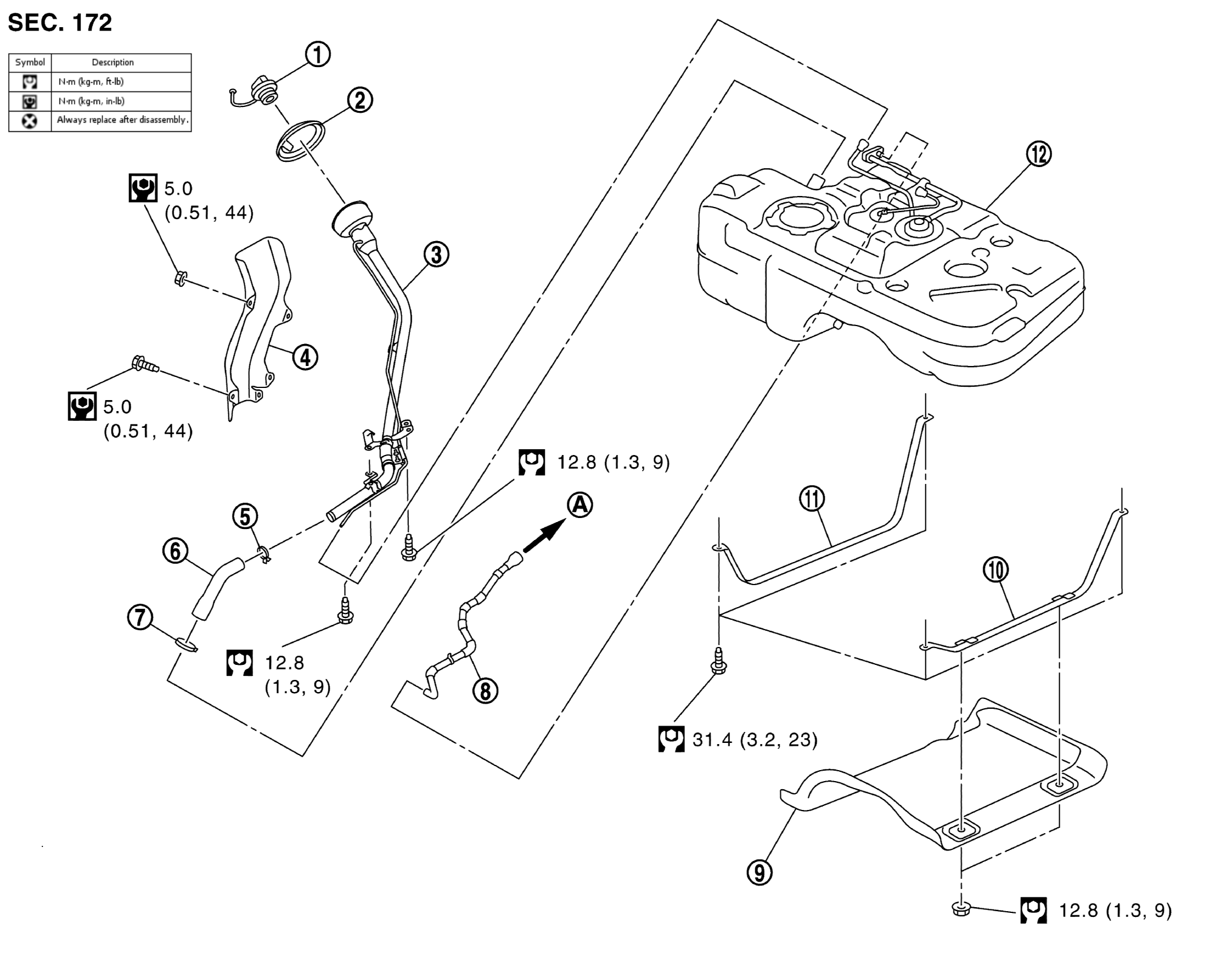

Fig 1: AWD With Torque Specifications
GNSJSBIA4858GB-858Courtesy of NISSAN NORTH AMERICA, INC.
1. Fuel filler cap 2. Grommet 3. Fuel filler tube
4. Cover 5. Clamp 6. Fuel filler hose
7. Clamp 8. Vent hose 9. Protector
10. Fuel tank band (LH) 11. Fuel tank band (RH) 12. Fuel tank
A. To EVAP canister
BOLTIN : N•m (kg-m, in-lb)
BOLT : N•m (kg-m, ft-lb)
