Exploded View With Torque Specifications

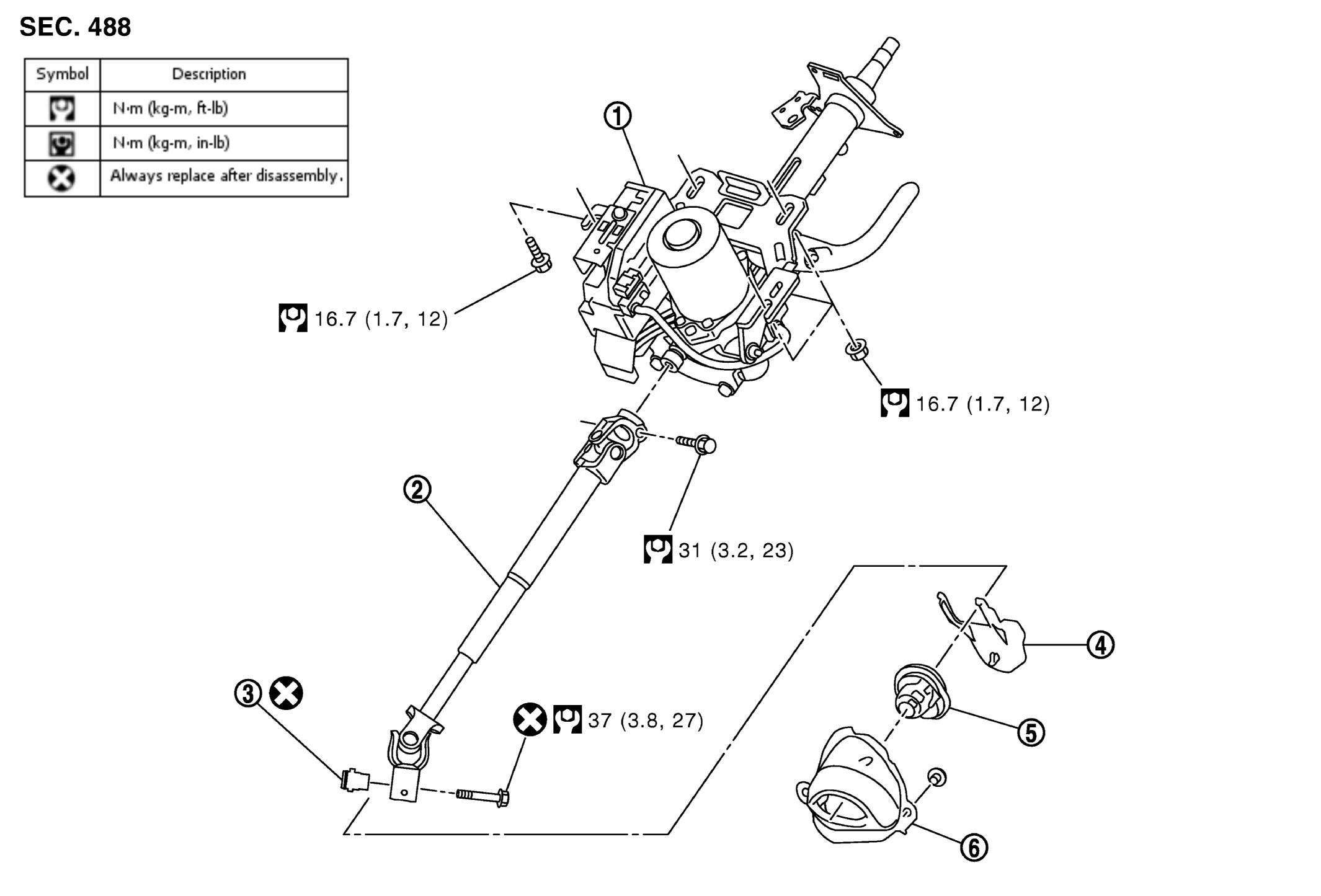

Fig 1: Steering Column With Torque Specifications
GNSJSGIA0266JP-266Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering column assembly 2. Intermediate shaft 3. Cam nut
4. Upper cover 5. Dash seal 6. Hole cover
Refer to COMPONENTS for symbols in the figure.
