AWD System: 8

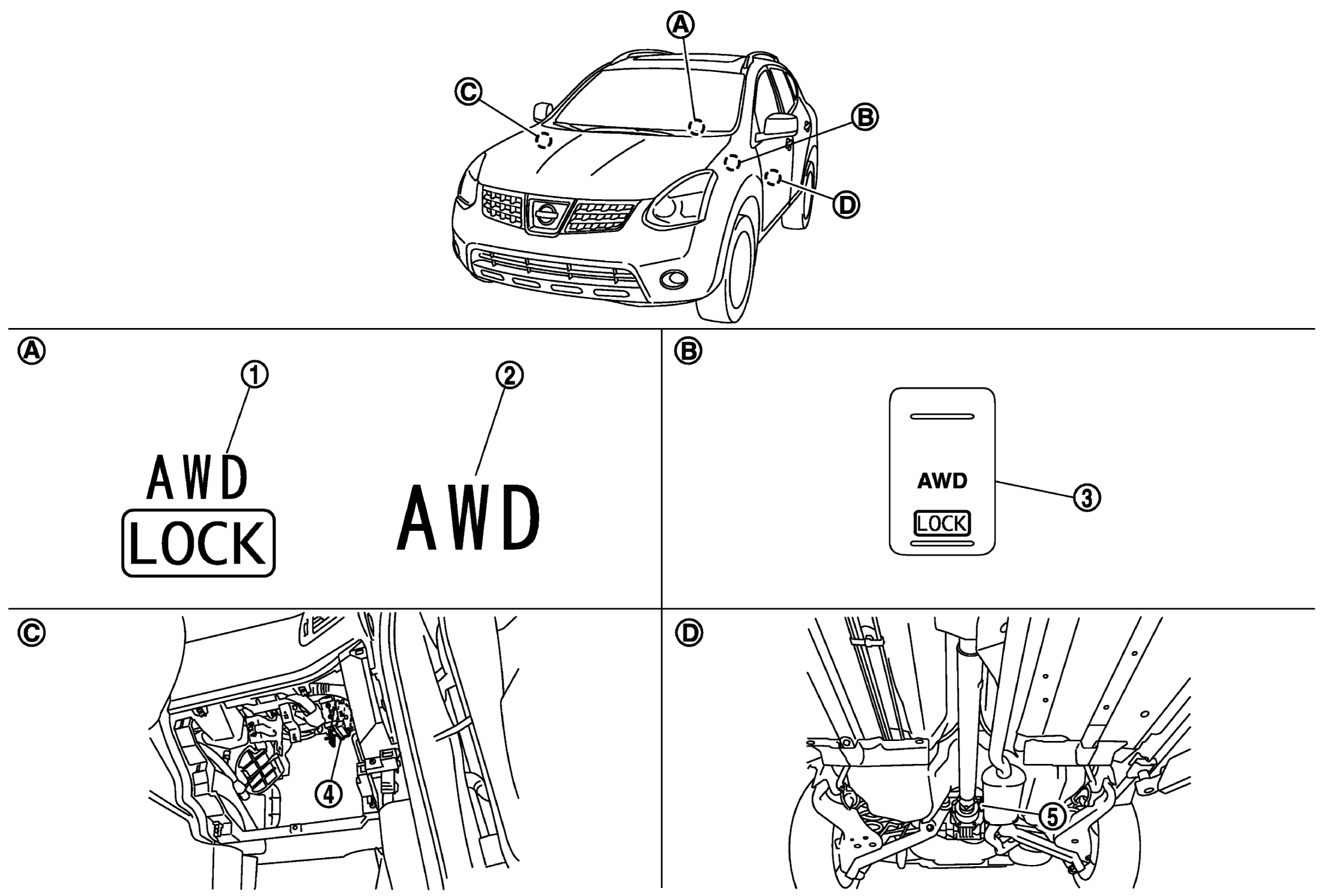

Fig 1: Cross-Sectional View Components Location

Courtesy of NISSAN NORTH AMERICA, INC.

1.	AWD LOCK indicator lamp	2.	AWD warning lamp	3.	AWD lock switch
4.	AWD control unit	5.	AWD solenoid (in rear final drive)
A.	Combination meter	B.	Instrument panel	C.	Glove box cover assembly removed
D.	Rear final drive assembly
