Adapter Case: Assembly

Install O-ring to adapter case.
CAUTION:
- Never reuse O-ring.
- When installing O-ring, never use a tool.
- Never damage adapter case.
- Apply multi-purpose grease to O-ring.
Install adapter case to the transfer case.
Apply anti-corrosive oil onto threads and seats of bolts ( ), and tighten with the specified torque.

Fig 1: Locating Adapter Case Mounting Bolts
Courtesy of NISSAN NORTH AMERICA, INC.
Check backlash, tooth contact, total preload and companion flange runout. Refer to ADJUSTMENT .
CAUTION:
Measure the total preload without the adapter case oil seal.

Install adapter case oil seal (1) to the adapter case with drifts.

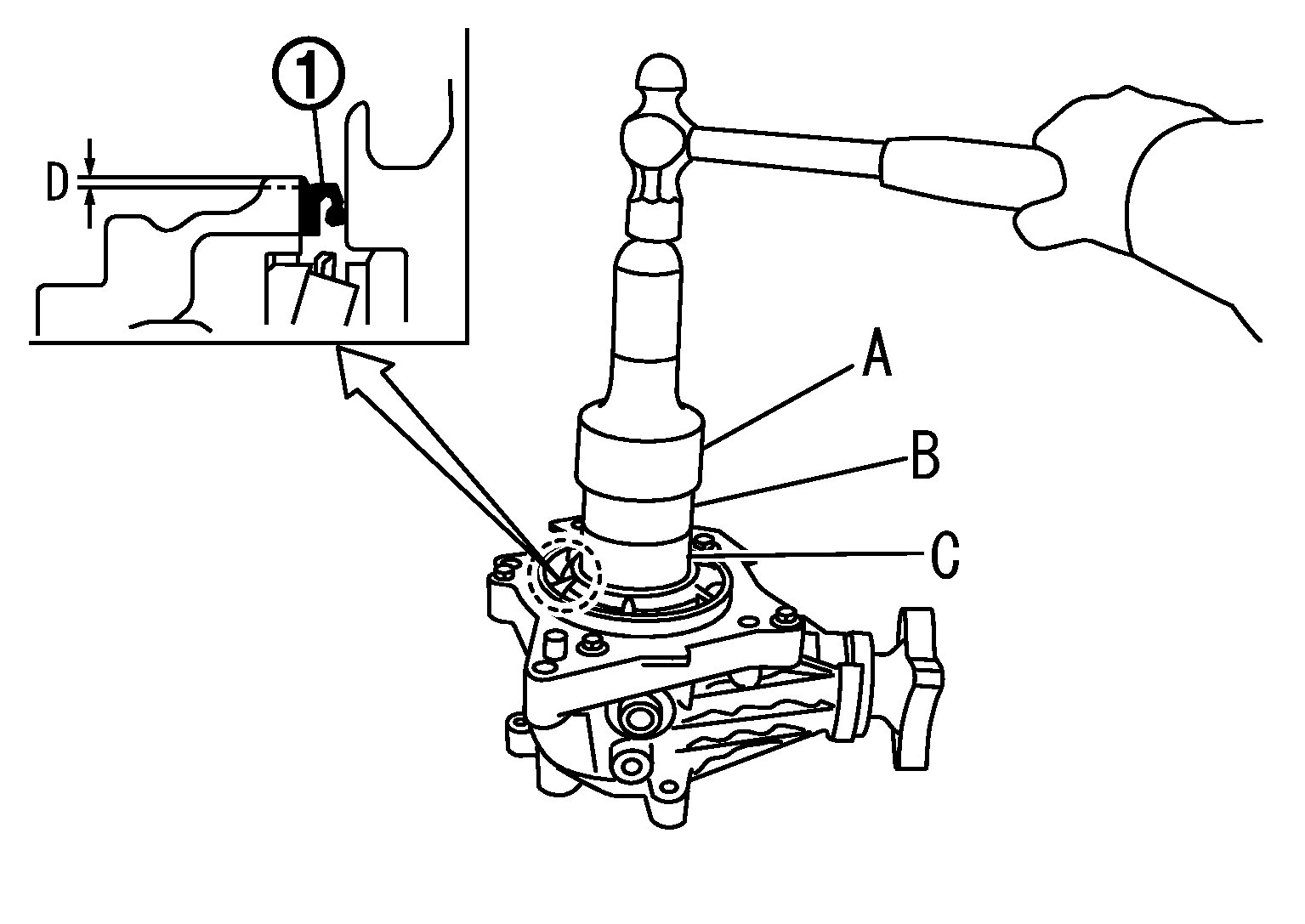

Fig 2: Tapping Adapter Case Oil Seal To Adapter Case With Drifts

Courtesy of NISSAN NORTH AMERICA, INC.

Dimension "D"

: 0.5 - 1.5 mm (0.020 - 0.059 in)

CAUTION:

Never reuse adapter case oil seal.
Apply multi-purpose grease onto oil seal lips, and gear oil onto the circumference.
