Exploded View With Torque Specifications

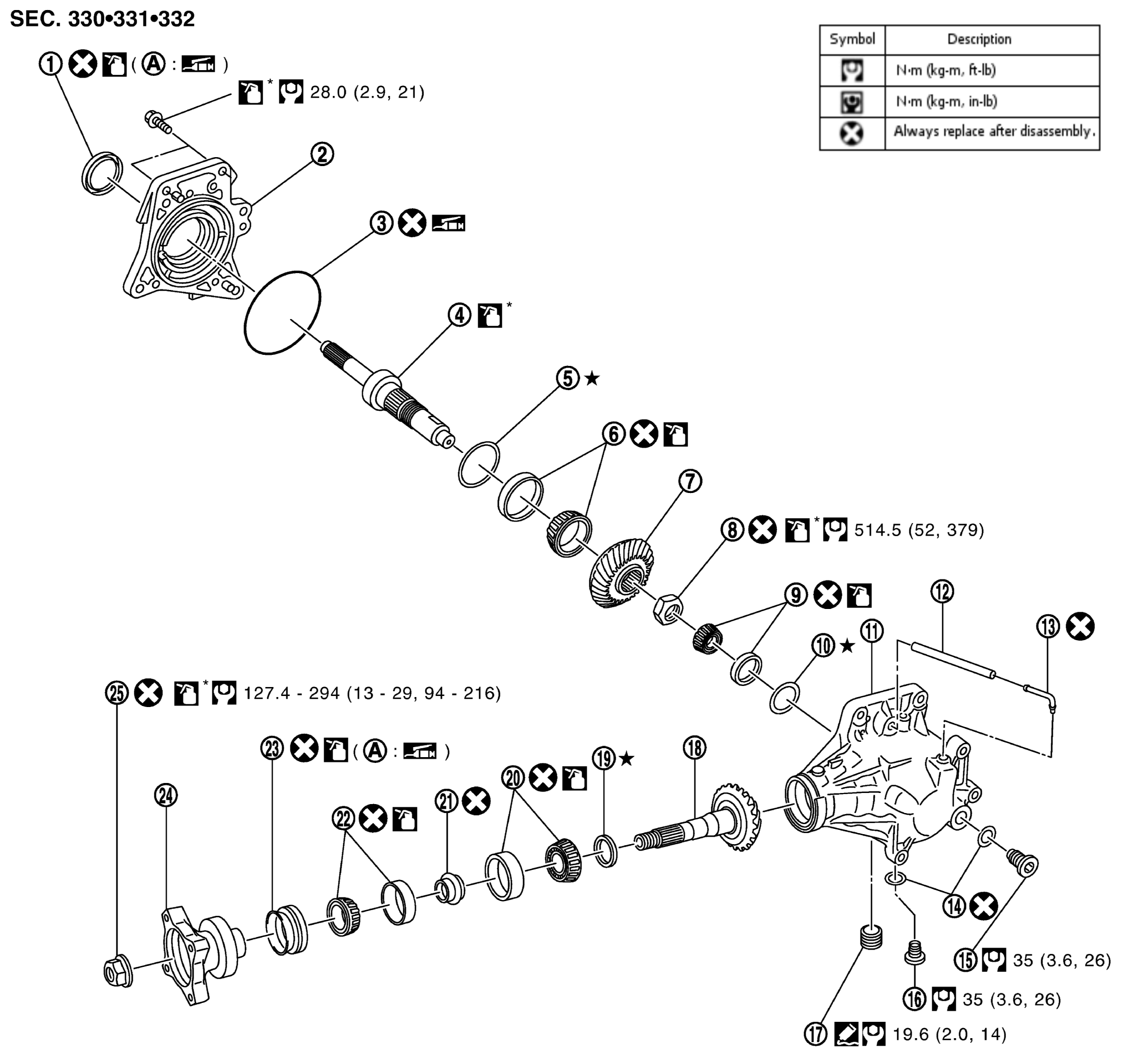

Fig 1: Adapter Case With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Adapter case oil seal	2.	Adapter case	3.	O-ring
4.	Ring gear shaft	5.	Ring gear adjusting shim (adapter case side)	6.	Ring gear shaft bearing (adapter case side)
7.	Ring gear	8.	Ring gear nut	9.	Ring gear shaft bearing (transfer case side)
10.	Ring gear adjusting shim (transfer case side)	11.	Transfer case	12.	Air breather hose
13.	Air breather tube	14.	Gasket	15.	Filler plug
16.	Drain plug	17.	Plug	18.	Drive pinion
19.	Drive pinion adjusting shim	20.	Drive pinion bearing (front side)	21.	Collapsible spacer
22.	Drive pinion bearing (rear side)	23.	Drive pinion oil seal	24.	Companion flange
25.	Lock nut
A: Oil seal lip
: Apply gear oil.
: Apply multi-purpose grease.
: Apply anti-corrosive oil.
: Apply Genuine Silicone RTV or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
Refer to COMPONENTS for symbols not described above.
