Exploded View With Torque Specifications

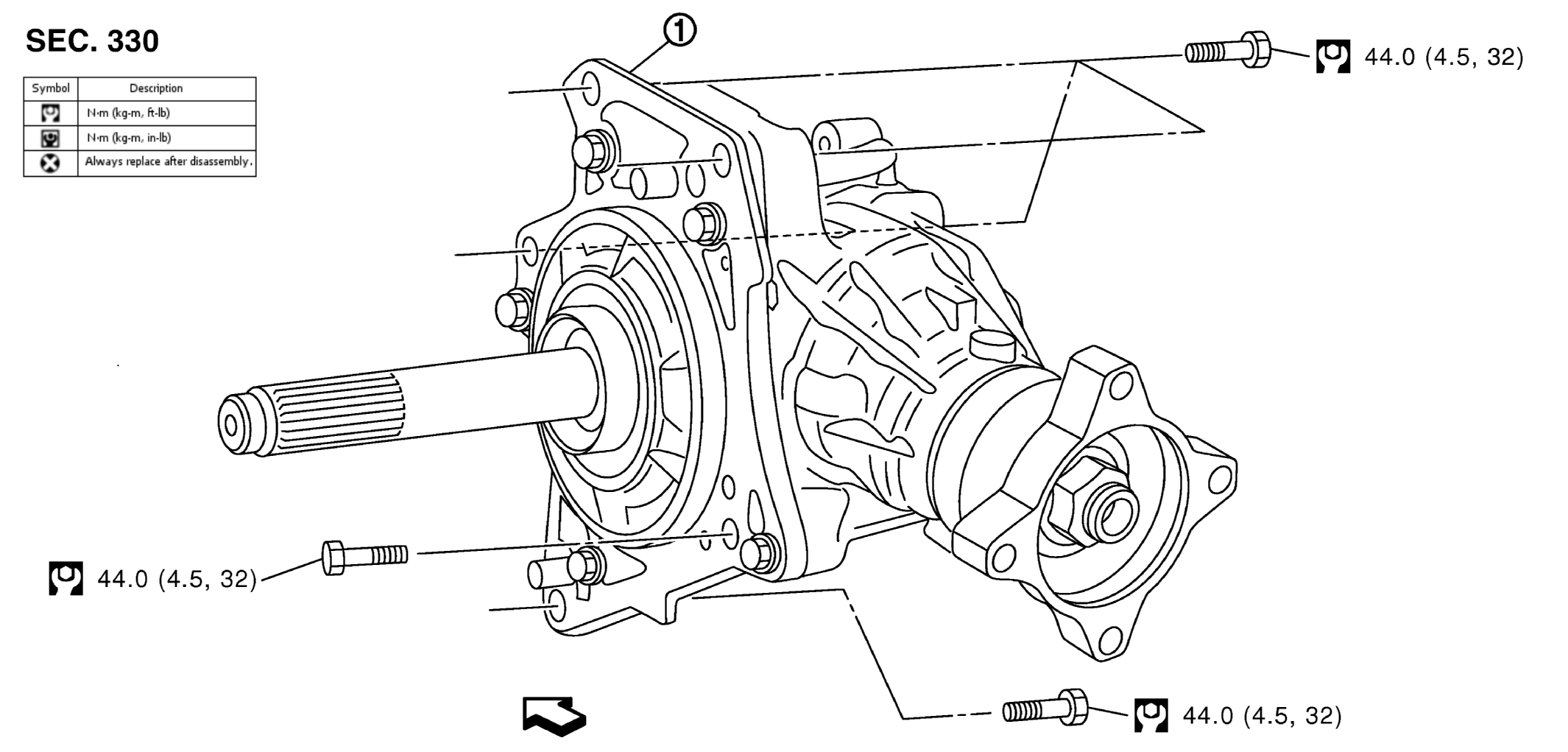

Fig 1: Transfer Assembly With Torque Specifications
GNSJSDIA0209GB-209Courtesy of NISSAN NORTH AMERICA, INC.
1. Transfer assembly
ARROW : Vehicle front
Refer to COMPONENTS for symbols in the figure.
