Exploded View With Torque Specifications: Disassembly

Type: 2611949

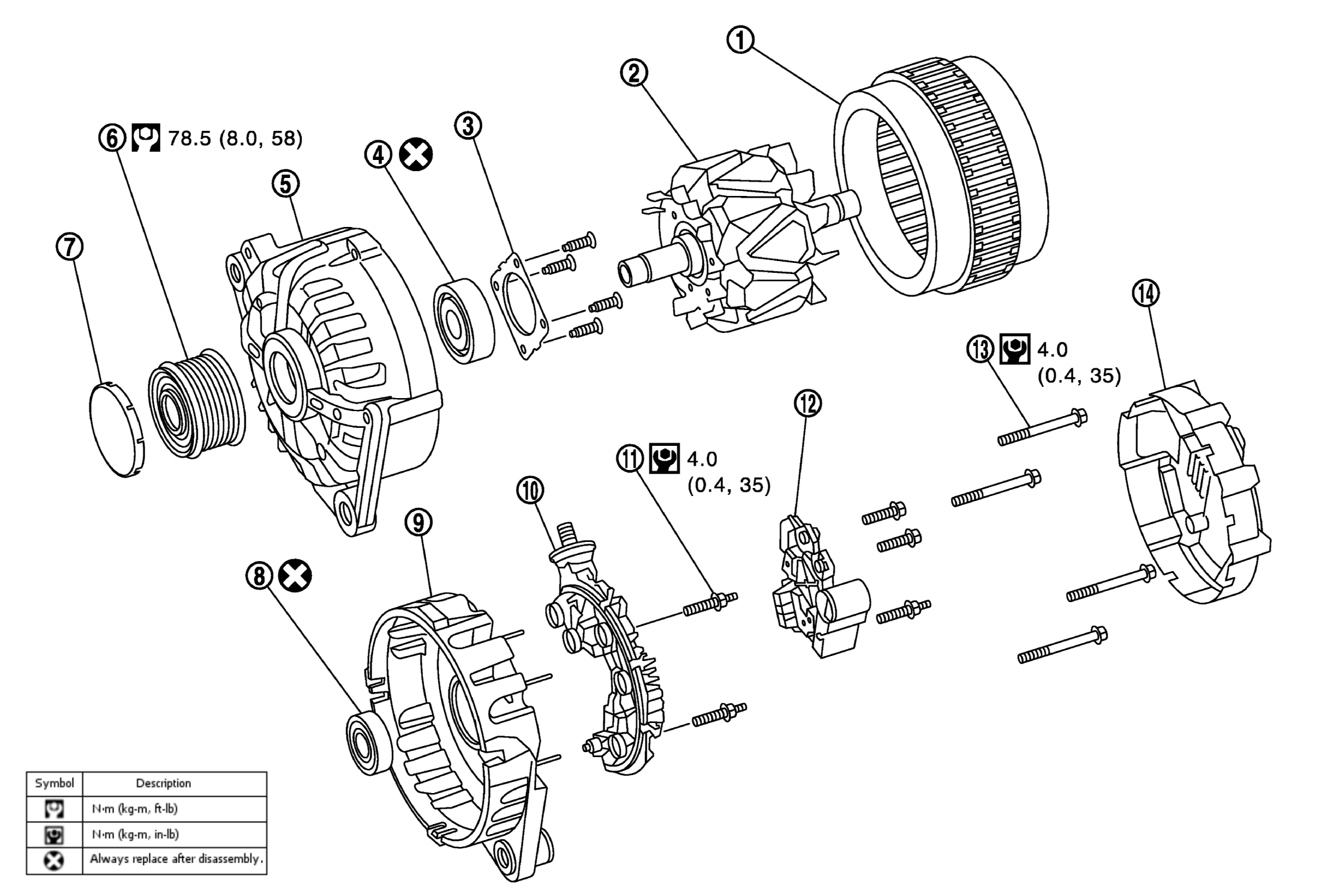

Fig 1: Disassembled View Of Alternator (Type: 2611949)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Stator assembly	2.	Rotor assembly	3.	Retainer
4.	Front bearing	5.	Front bracket	6.	Pulley
7.	Pulley cap	8.	Rear bearing	9.	Rear bracket
10.	Circuit board assembly	11.	Stud bolt	12.	IC voltage regulator assembly
13.	Through bolt	14.	Rear cover
	: Always replace after every disassembly.
	: N•m (kg - m, ft - lb)
	: N•m (kg - m, in - lb)
