Disassembly And Assembly

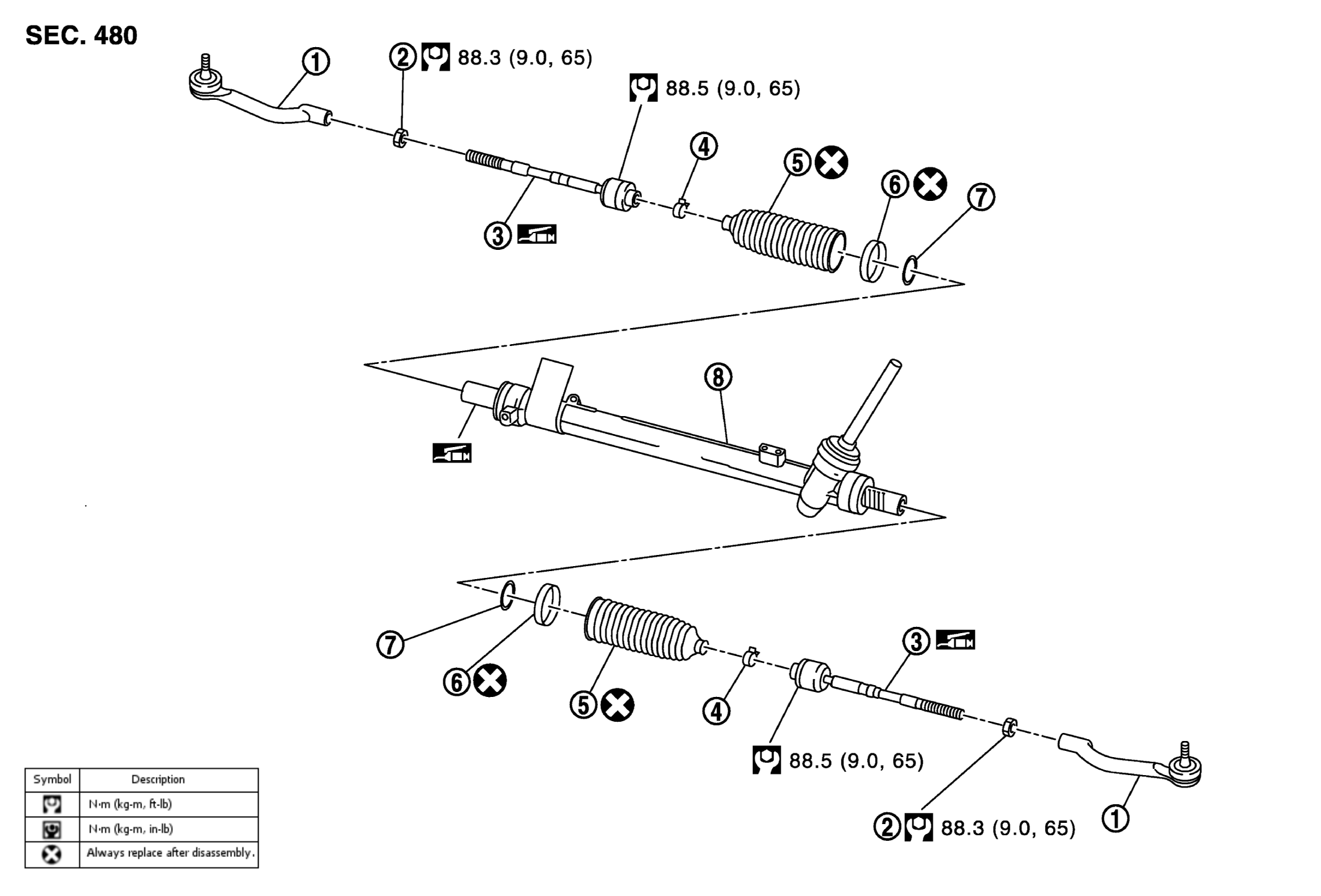

Fig 1: Steering Gear And Linkage With Torque Specifications (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Outer socket	2.	Outer socket lock nut	3.	Inner socket
4.	Boot clamp (small diameter)	5.	Boot	6.	Boot clamp (large diameter)
7.	Spacer	8.	Gear housing assembly
: Apply Molywhite LSG or equivalent.
Refer to COMPONENTS for symbols not described on the above.
