Component Parts Location

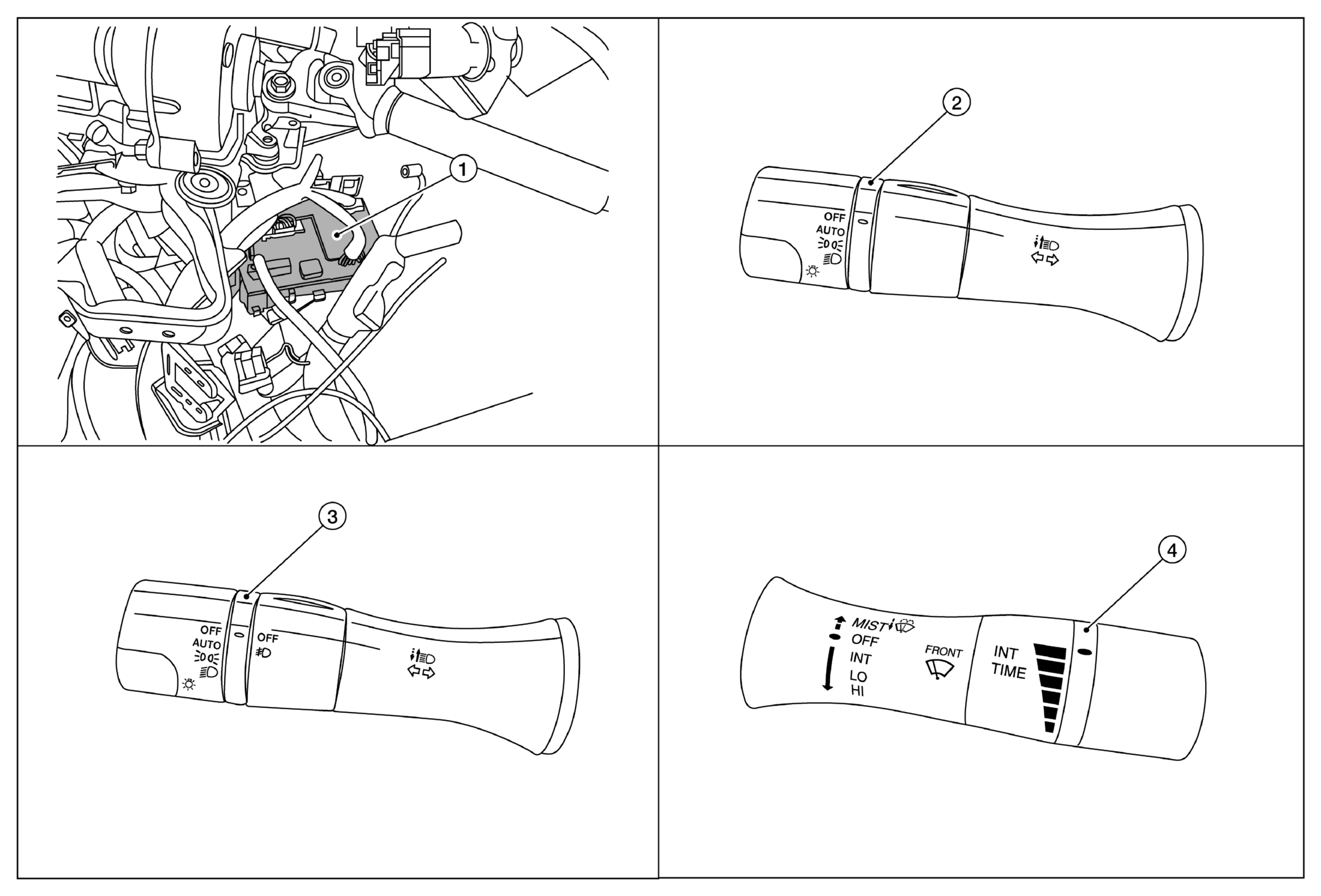

Fig 1: Combination Switch Reading System Components Location

Courtesy of NISSAN NORTH AMERICA, INC.

1.	BCM (view with combination meter removed)	2.	Combination switch (lighting and turn signal) (without fog lamps)	3.	Combination switch (lighting and turn signal) (with fog lamps)
4.	Combination switch (wiper and washer)
