Operation Procedure
- Turn ignition switch to ACC or ON.
- Wait for the Bluetooth®
system to complete initialization. This may take up to 20 seconds.

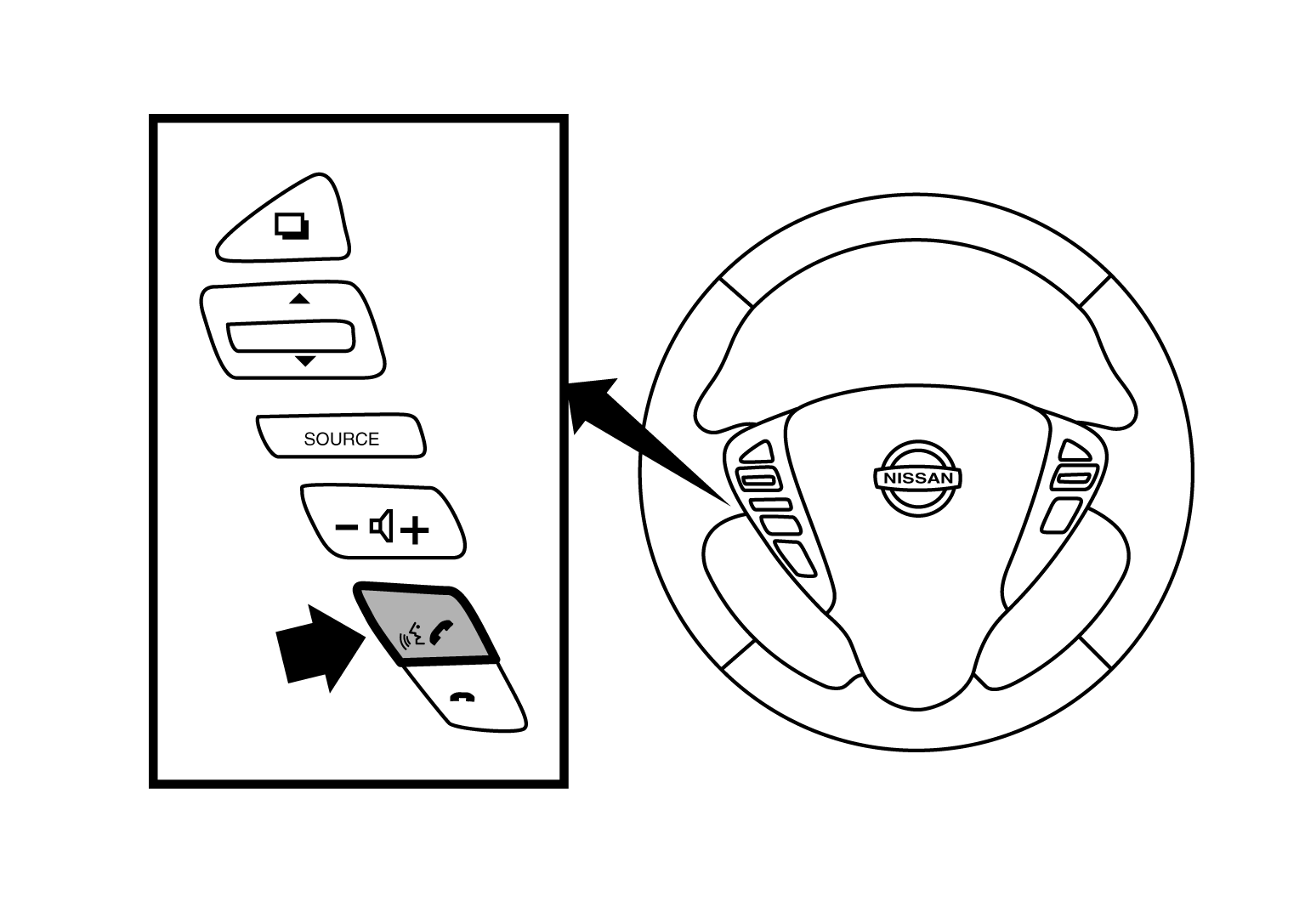

- Press and hold the steering wheel audio control switch
(PHONE/SEND) button for at least 5 seconds. The Bluetooth®
system will begin to play a verbal prompt.
Courtesy of NISSAN NORTH AMERICA, INC.

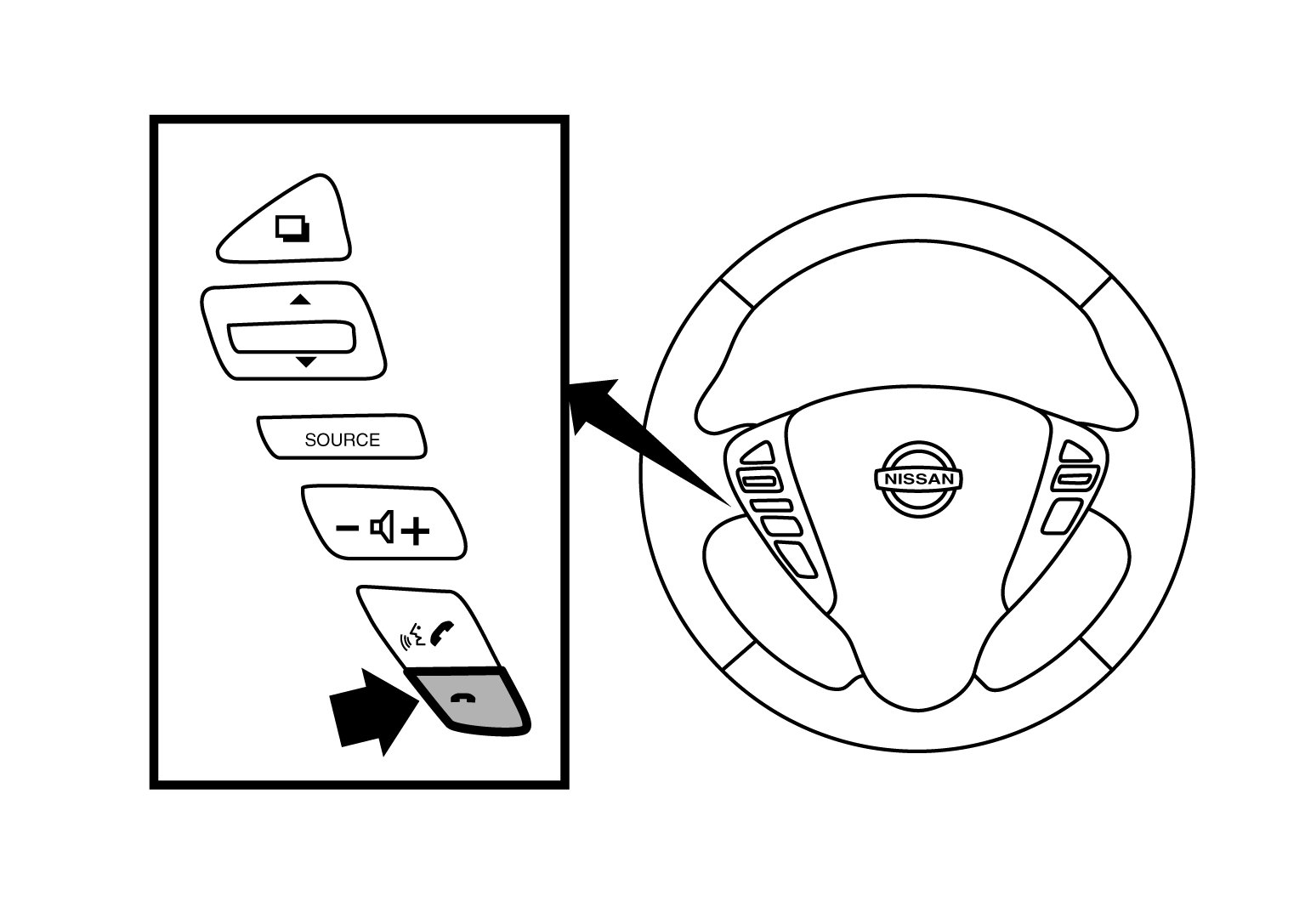

- While the prompt is playing, press and hold the steering wheel audio control switch
(PHONE/END) button until you hear the "Diagnostics mode" prompt. The Bluetooth®
system will sound a 5-second beep.
Courtesy of NISSAN NORTH AMERICA, INC.
- While the beep is sounding, press and hold the steering wheel audio control switch
(PHONE/END) button again until you hear prompts.
- The Bluetooth®
system has now entered into the diagnostic mode. Results of the diagnostic checks will be verbalized to the technician. Refer to WORK FLOW .
- After the failure records are reported, an interactive microphone test will be performed. Follow the voice prompt. If the microphone test fails, refer to WORK FLOW .
