Physical Values

Terminal NO.
(Wire color)		 Description Condition Value
(Approx.)
Signal name Input/Output
+ -
1
(R)		 Ground Battery power supply Input Ignition switch OFF Battery voltage
2
(G)		 Ground Battery power supply Input Ignition switch OFF Battery voltage
4
(BR)		 Ground Transmission range switch Input Select lever in any position other than P or N (Ignition switch ON) 0 V
Select lever P or N (Ignition switch ON) Battery voltage
5
(Y)		 Ground Headlamp HI (RH) Output Ignition switch 2ND or AUTO Lighting switch OFF 0 V
  • Lighting switch HI
  • Lighting switch PASS
 Battery voltage
6
(G)		 Ground Headlamp HI (LH) Output Ignition switch 2ND or AUTO Lighting switch OFF 0 V
  • Lighting switch HI
  • Lighting switch PASS
 Battery voltage
7
(L)		 Ground Headlamp LO (LH) Output Lighting switch OFF 0 V
Lighting switch 2ND Battery voltage
8
(P)		 Ground Headlamp LO (RH) Output Lighting switch OFF 0 V
Lighting switch 2ND Battery voltage
10
(P)		 Ground Fuel pump relay power supply Output Approximately 1 second or more than after turning the ignition switch ON 0 V
  • Approximately 1 second after turning the ignition switch ON
  • Engine running
 Battery voltage
11
(GR)		 Ground Throttle control motor relay power supply Output Ignition switch OFF
(More than a few seconds after turning ignition switch OFF)		 0 V
  • Ignition switch ON
  • Ignition switch OFF

    (For a few seconds after turning ignition switch OFF)

 Battery voltage
12
(SB)		 Ground A/C relay power supply Output Engine running A/C switch OFF 0 V
A/C switch ON
(A/C compressor is operating)		 Battery voltage
13
(O)		 Ground Ignition relay power supply Output Ignition switch OFF or ACC 0 V
Ignition switch ON Battery voltage
14
(LG)		 Ground Ignition relay power supply Output Ignition switch OFF 0 V
Ignition switch ON Battery voltage
15
(V)		 Ground Ignition relay power supply Output Ignition switch OFF 0 V
Ignition switch ON Battery voltage
16
(SB)		 Ground Throttle control motor relay control Output Ignition switch OFF or ACC Battery voltage
Ignition switch ON 0 V
17
(LG)		 Ground Ignition relay power supply Output Ignition switch OFF 0 V
Ignition switch ON Battery voltage
18
(O)		 Ground Ignition relay power supply Output Ignition switch OFF 0 V
Ignition switch ON Battery voltage
19
(R)		 Ground Starter motor Output Other than engine cranking 0 V
At engine cranking Battery voltage
20
(P)		 Ground Battery power supply Input Ignition switch OFF Battery voltage
21
(LG)		 Ground Cooling fan relay-1 power supply Output Cooling fan OFF 0 V
Cooling fan operated Battery voltage
23
(Y)		 Ground Cooling fan relay-2 power supply Output Cooling fan OFF 0 V
Cooling fan LO operated 4 - 8 V
Cooling fan HI operated Battery voltage
24
(V)		 Ground Battery power supply Input Ignition switch OFF Battery voltage
25
(G)		 Ground ECM relay power supply Output Ignition switch OFF
(More than a few seconds after turning ignition switch OFF)		 0 V
  • Ignition switch ON
  • Ignition switch OFF

    (For a few seconds after turning ignition switch OFF)

 Battery voltage
26
(P)		 Ground ECM relay power supply Output Ignition switch OFF
(More than a few seconds after turning ignition switch OFF)		 0 V
  • Ignition switch ON
  • Ignition switch OFF

    (For a few seconds after turning ignition switch OFF)

 Battery voltage
27
(L)		 Ground Front combination lamp LH/RH Output Lighting switch OFF 0 V
Lighting switch 1ST Battery voltage
28
(R)		 Ground Rear combination lamp, license plate lamp and illuminations Output Lighting switch OFF 0 V
Lighting switch 1ST Battery voltage
29
(L)		 Ground Front wiper HI Output Ignition switch ON Front wiper switch OFF 0 V
Front wiper switch HI Battery voltage
31
(O)		 Ground ECM relay control Output Ignition switch OFF
(More than a few seconds after turning ignition switch OFF)		 Battery voltage
  • Ignition switch ON
  • Ignition switch OFF

    (For a few seconds after turning ignition switch OFF)

 0 V
32
(Y)		 Ground ECM power supply Output Ignition switch OFF Battery voltage
33
(V)		 Ground Illumination Output Lighting switch OFF 0 V
Lighting switch 1ST Battery voltage
35
(W)		 Ground Front wiper LO Output Ignition switch ON Front wiper switch OFF 0 V
Front wiper switch LO Battery voltage
37
(SB)		 Ground Cranking request Output Ignition switch OFF 0 V
Ignition switch ON Select lever P or N
Select lever in any position other than P or N Battery voltage
Engine running
39
(BR)		 Ground Front wiper stop position Input Ignition switch ON Front wiper stop position 0 V
Any position other than front wiper stop position Battery voltage
40
(P)		 Ground CAN-L Input/Output - -
41
(L)		 Ground CAN-H Input/Output - -
42
(Y)		 Ground DTRL relay Output Lighting switch OFF 0 V
Lighting switch 1ST Battery voltage
44
(V)		 Ground Starter relay control Input Ignition switch ON Select lever P or N Battery voltage
Select lever in any position other than P or N 0 V
45
(Y)		 Ground Fuel pump relay control Output
  • Approximately 1 second after turning the ignition switch ON
  • Engine running
 0 V
Approximately 1 second or more after turning the ignition switch ON Battery voltage
47
(G)		 Ground Power generation command signal Output Ignition switch ON

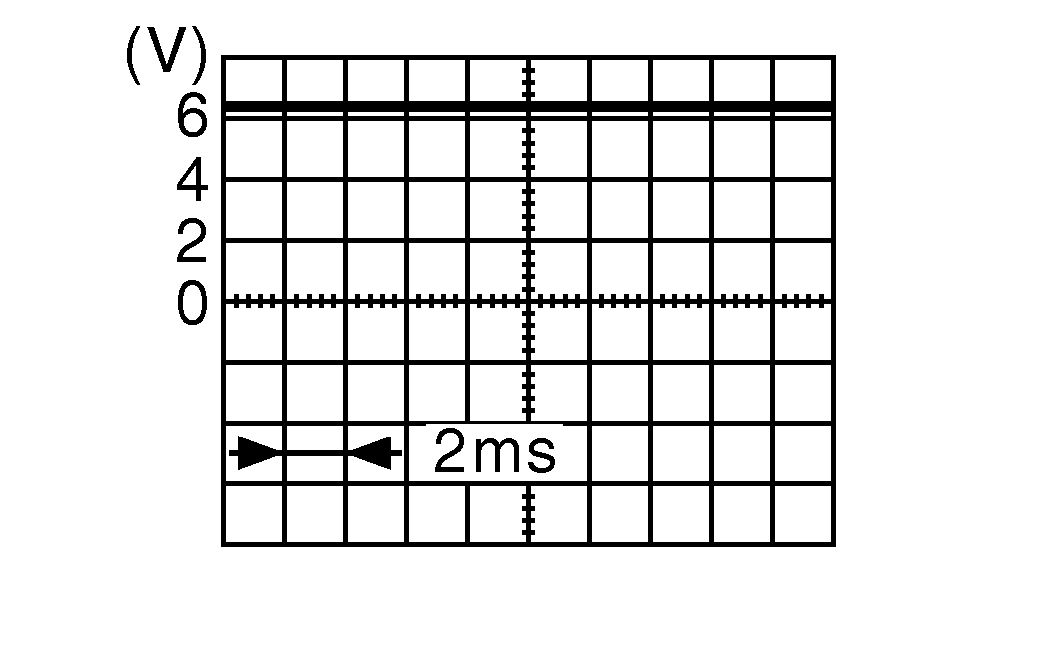

GNSJPMIA0001GB-001Courtesy of NISSAN NORTH AMERICA, INC.

6.3 V
40% is set on "ACTIVE TEST", "ALTERNATOR DUTY" of "ENGINE"

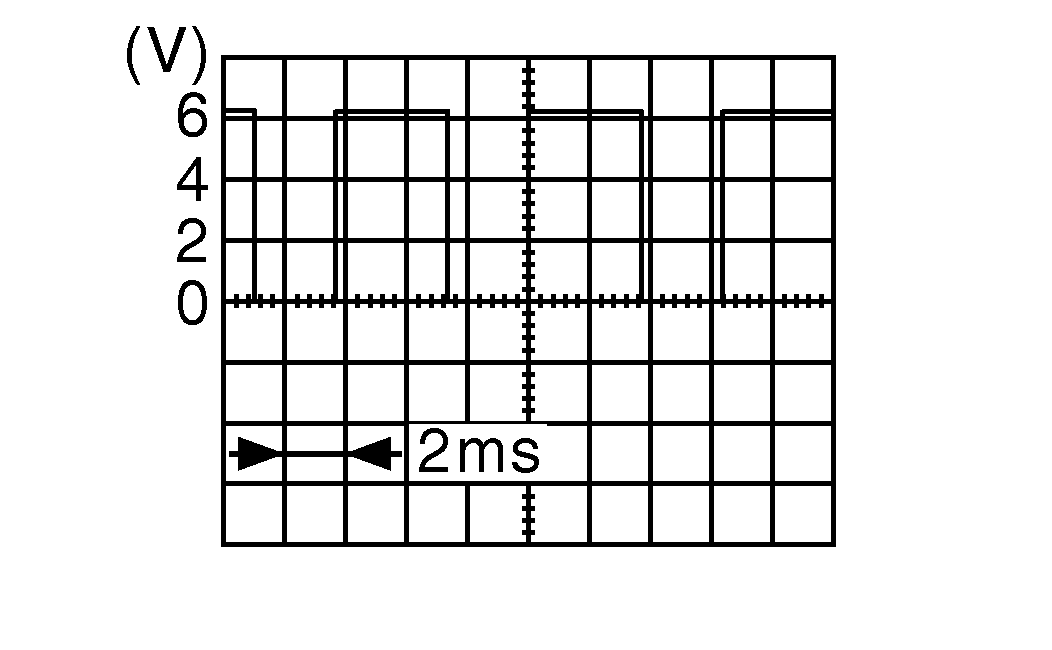

GNSJPMIA0002GB-002Courtesy of NISSAN NORTH AMERICA, INC.

3.8 V
80% is set on "ACTIVE TEST", "ALTERNATOR DUTY" of "ENGINE"

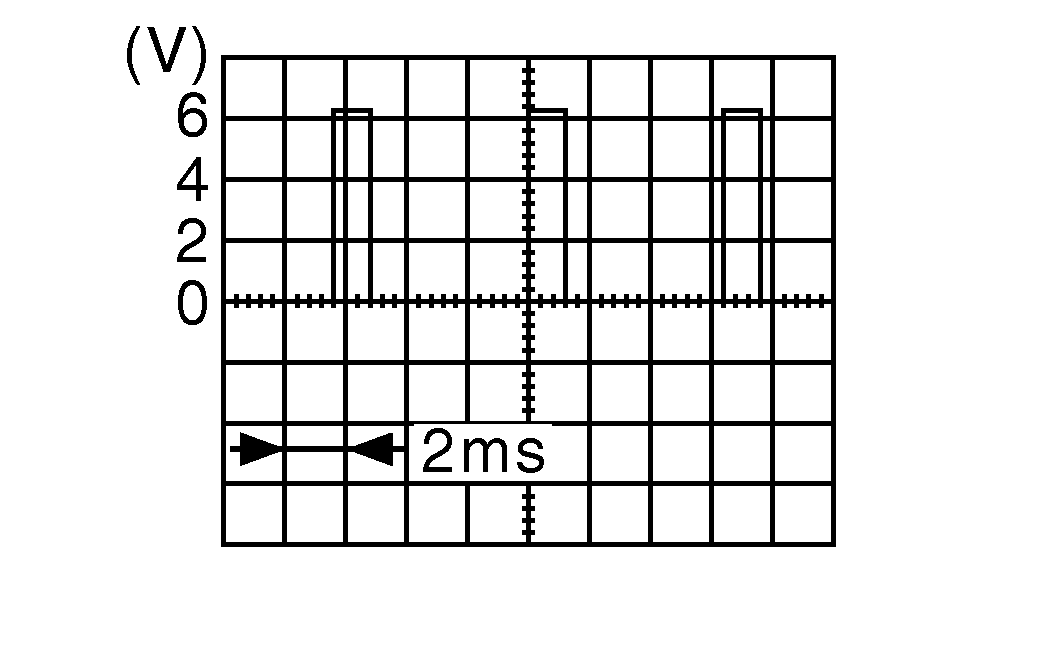

GNSJPMIA0003GB-003Courtesy of NISSAN NORTH AMERICA, INC.

1.4 V
48
(L)		 Ground Horn relay control Output The horn is deactivated Battery voltage
The horn is activated 0 V
52
(B/Y)		 Ground Ground - Ignition switch ON 0 V
53
(W)		 Ground Front fog lamp (RH) Output Lighting switch 1ST, 2ND or AUTO Front fog lamp switch OFF 0 V
Front fog lamp switch ON Battery voltage
54
(V)		 Ground Front fog lamp (LH) Output Lighting switch 1ST, 2ND or AUTO Front fog lamp switch OFF 0 V
Front fog lamp switch ON Battery voltage
57
(B/Y)		 Ground Ground - Ignition switch ON 0 V
58
(L)		 Ground Cooling fan relay-3 power supply Output Cooling fan OFF 0 V
Cooling fan LO operated 4 - 8 V
Cooling fan HI operated Battery voltage
62
(R)		 Ground Rear window defogger relay power supply Output Ignition switch ON Rear window defogger switch OFF 0 V
Rear window defogger switch ON Battery voltage
64
(Y)		 Ground CVT shift selector
(Detention switch)		 Input Ignition switch ON Select lever P Release select button 0 V
Press select button Battery voltage
Select lever in any position other than P
66
(L)		 Ground Push-button ignition switch Input Press the push-button ignition switch 0 V
Release the push-button ignition switch Battery voltage
68
(O)		 Ground Ignition relay control Input Ignition switch OFF or ACC Battery voltage
Ignition switch ON 0 V
69
(BR)		 Ground Ignition power supply No. 2 Output Ignition switch OFF or ACC 0 V
  Ignition switch ON Battery voltage
