A/C Switch Assembly

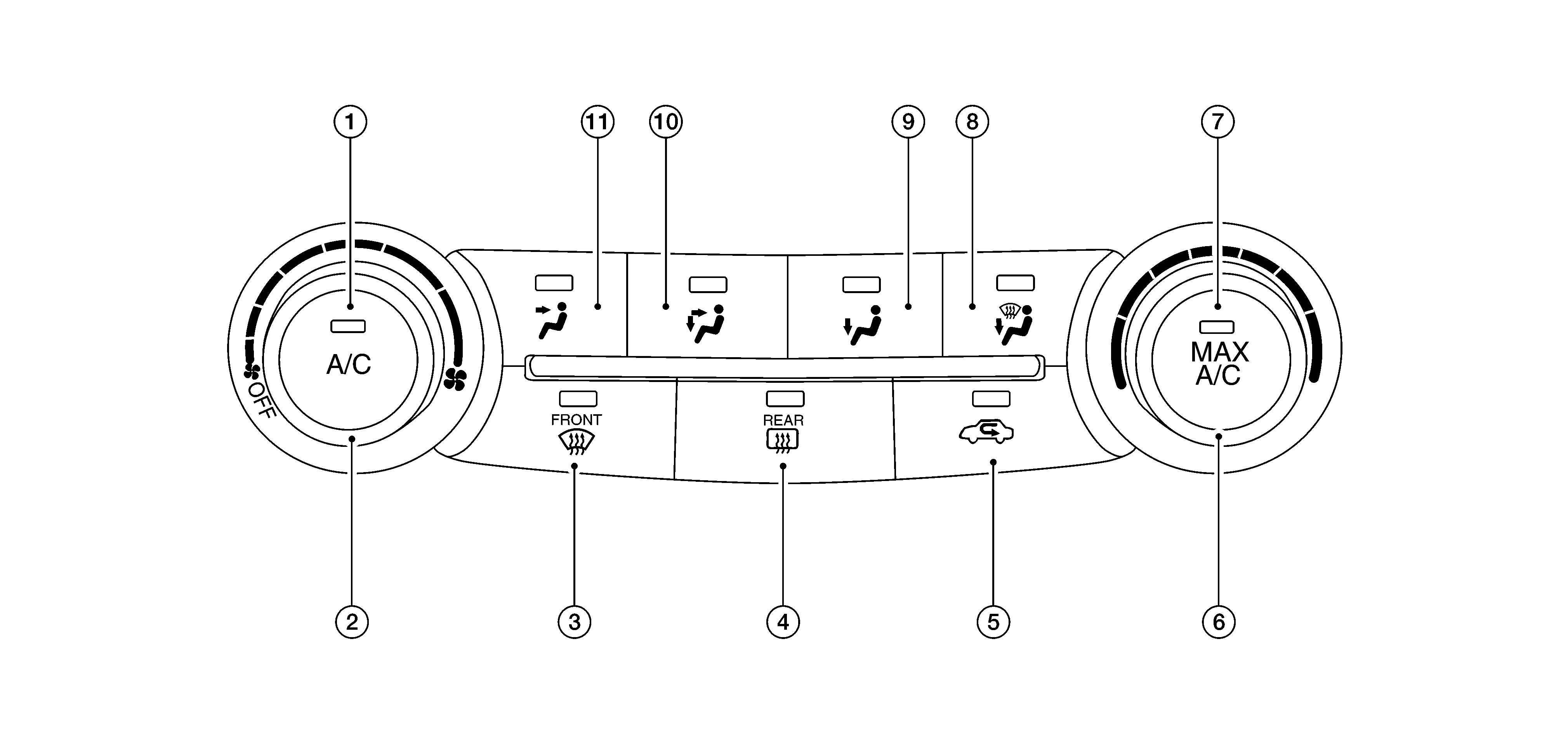

Fig 1: Manual A/C Control Switch

Courtesy of NISSAN NORTH AMERICA, INC.

1.	A/C switch	2.	Blower control dial (with OFF switch)	3.	DEF switch
4.	Rear DEF switch	5.	REC switch	6.	Temperature control dial
7.	MAX A/C switch	8.	D/F switch	9.	FOOT switch
10.	B/L switch	11.	VENT switch
