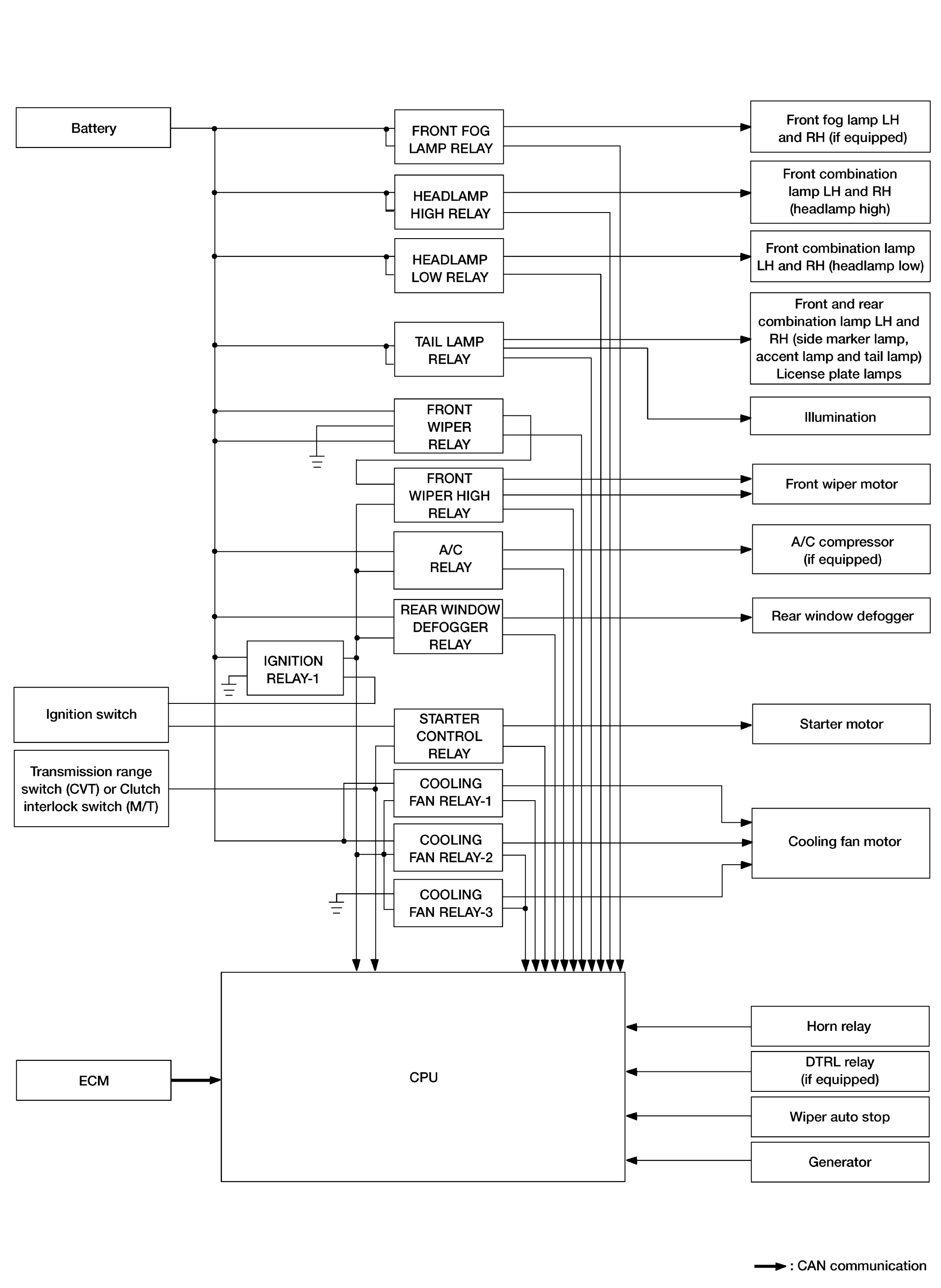

Home >> Nissan-Datsun >> 2015 >> Sentra S, Automatic CVT Trans >> Repair and Diagnosis (Single Page) >> Electrical >> Body Electrical >> Power Control System (IPDM E/R) (Without I-Key) >> System Description >> System >> Relay Control System >> System Diagram >> System Diagram
