Combination Switch Matrix

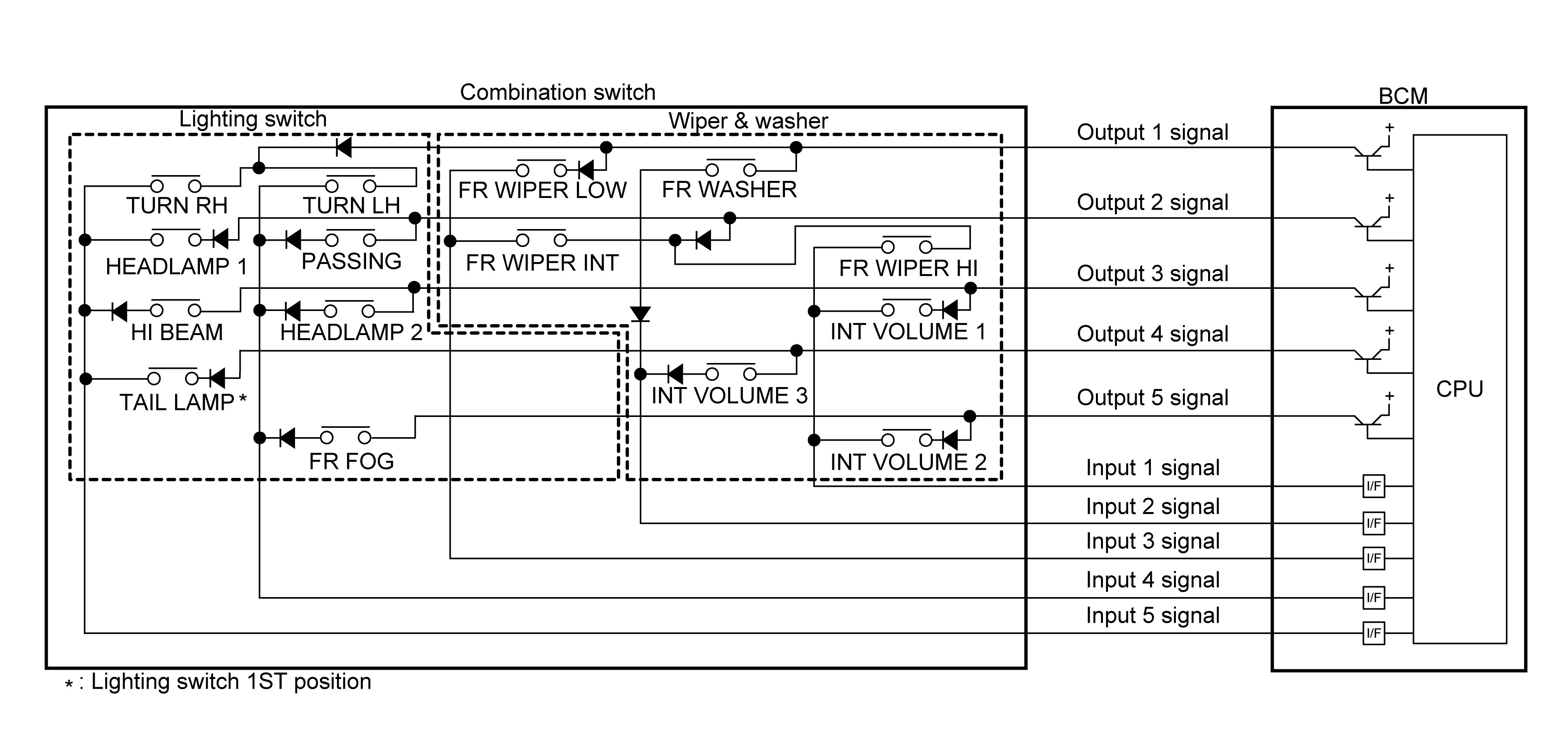

Combination switch circuit

Fig 1: Combination Switch Circuit

Courtesy of NISSAN NORTH AMERICA, INC.

COMBINATION SWITCH INPUT-OUTPUT SYSTEM LIST

System	INPUT 1	INPUT 2	INPUT 3	INPUT 4	INPUT 5
OUTPUT 1	-	FR WASHER	FR WIPER LOW	TURN LH	TURN RH
OUTPUT 2	FR WIPER HI	-	FR WIPER INT	PASSING	HEADLAMP 1
OUTPUT 3	INT VOLUME 1	-	-	HEADLAMP 2	HI BEAM
OUTPUT 4	-	INT VOLUME 3	-	-	TAIL LAMP
OUTPUT 5	INT VOLUME 2	-	-	FR FOG	-
