Exploded View With Torque Specifications

(LH)

Fig 1: Exploded View Of Front Drive Shaft And Boots (LH) (1 Of 2)

GNSJPDIF0266ZZ-266

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Circular clip	2.	Dust shield	3.	Slide joint housing
4.	Snap ring	5.	Spider assembly	6.	Boot band
7.	Boot	8.	Shaft	9.	Damper band
10.	Dynamic damper	11.	Circular clip	12.	Joint sub-assembly
	Wheel side

(RH)

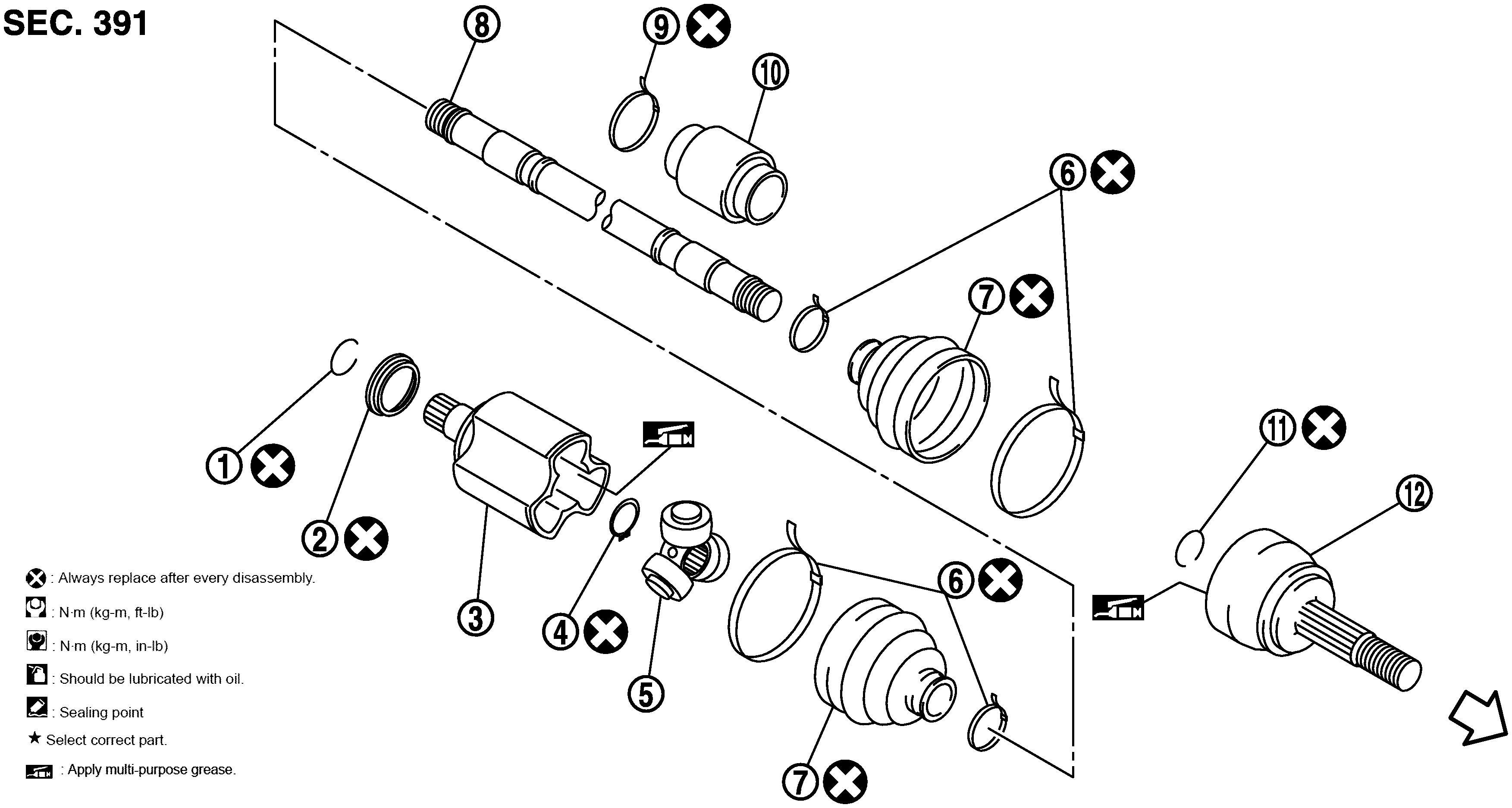

Fig 2: Exploded View Of Front Drive Shaft And Boots (RH) (2 Of 2)

GNSJPDIF0269ZZ-269

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Circular clip	2.	Dust shield	3.	Slide joint housing
4.	Snap ring	5.	Spider assembly	6.	Boot band
7.	Boot	8.	Shaft	9.	Damper Band
10.	Dynamic damper	11.	Circular clip	12.	Joint sub - assembly
	Wheel side
