Exploded View With Torque Specifications

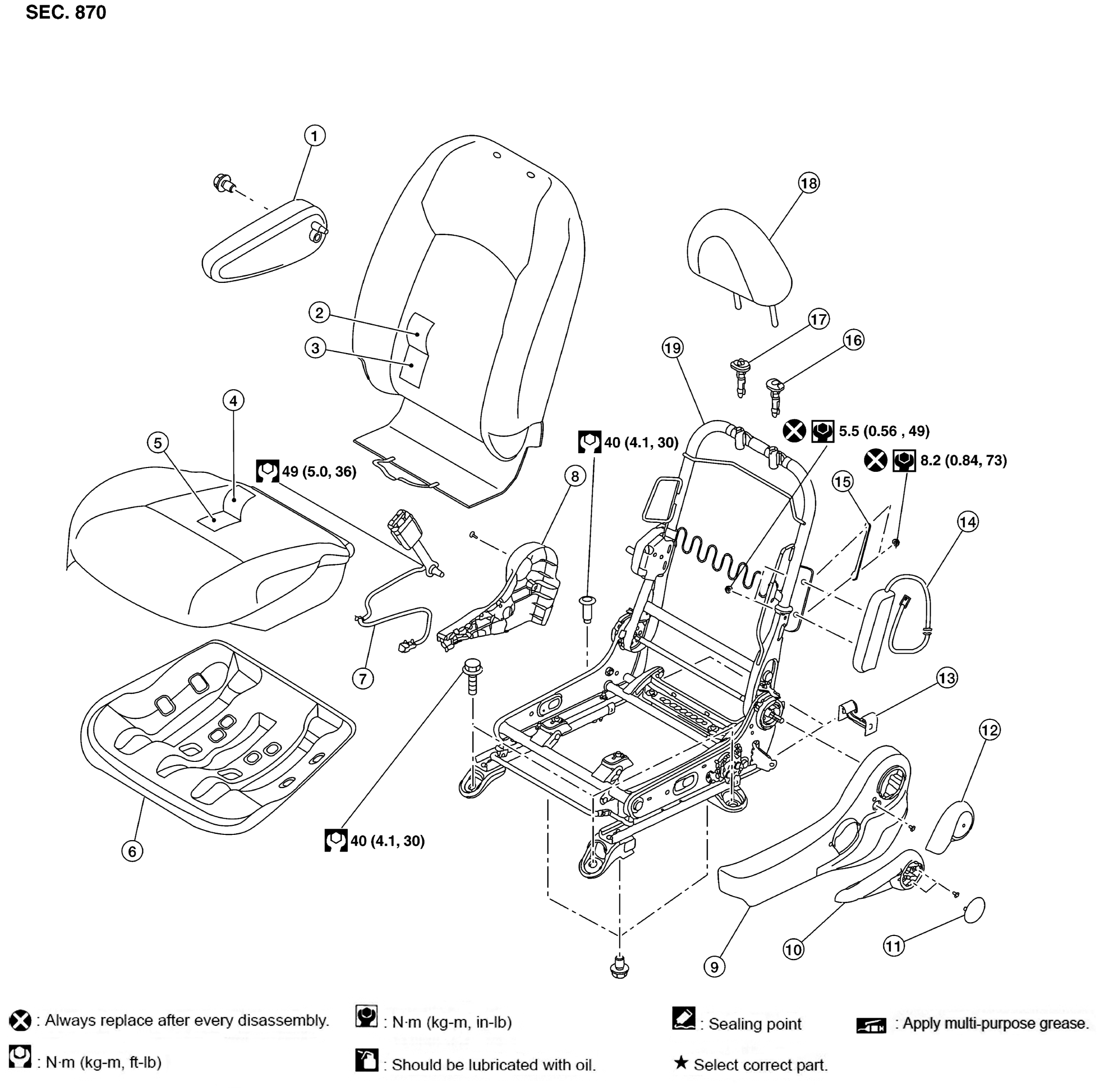

DRIVER SEAT WITH LIFT

Fig 1: Exploded View Of Driver Seat With Lift With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Armrest	2.	Seatback trim	3.	Seatback pad
4.	Seat cushion trim	5.	Seat cushion pad	6.	Seat cushion frame
7.	Seat belt buckle	8.	Seat cushion outer finisher (RH)	9.	Seat cushion outer finisher (LH)
10.	Lift lever	11.	Lift lever finisher	12.	Recline lever
13.	Slide finisher rear (LH/RH)	14.	Side air bag module	15.	Chute rod
16.	Headrest holder (locked)	17.	Headrest holder (free)	18.	Headrest
19.	Seat frame

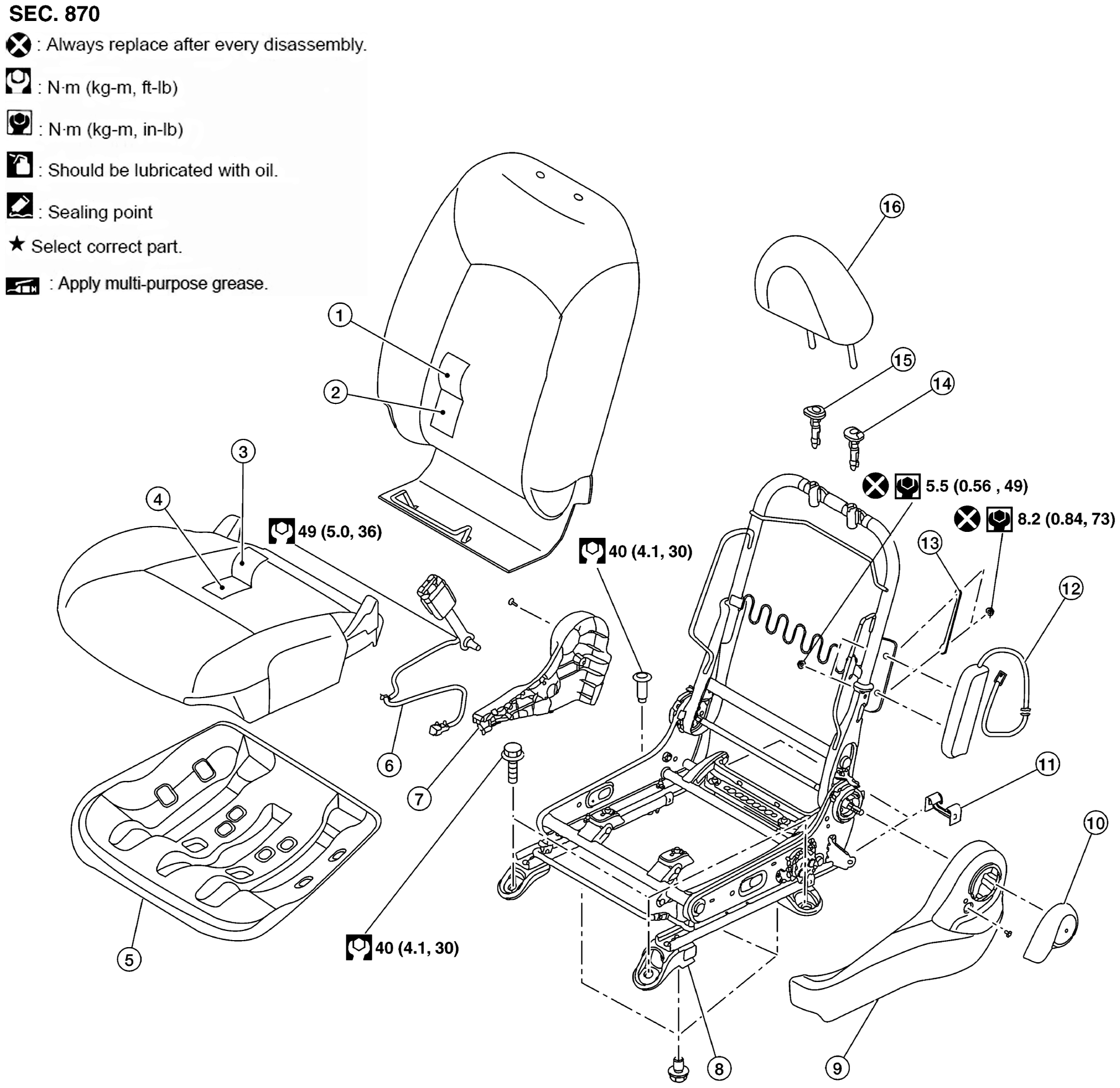

DRIVER SEAT WITHOUT LIFT

Fig 2: Exploded View Of Driver Seat Without Lift With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Seatback trim	2.	Seatback pad	3.	Seat cushion trim
4.	Seat cushion pad	5.	Seat cushion frame	6.	Seat belt buckle
7.	Seat cushion outer finisher (RH)	8.	Seat frame	9.	Seat cushion outer finisher (LH)
10.	Recline lever	11.	Slide finisher rear (LH/RH)	12.	Side air bag module
13.	Chute rod	14.	Headrest holder (locked)	15.	Headrest holder (free)
16.	Headrest
