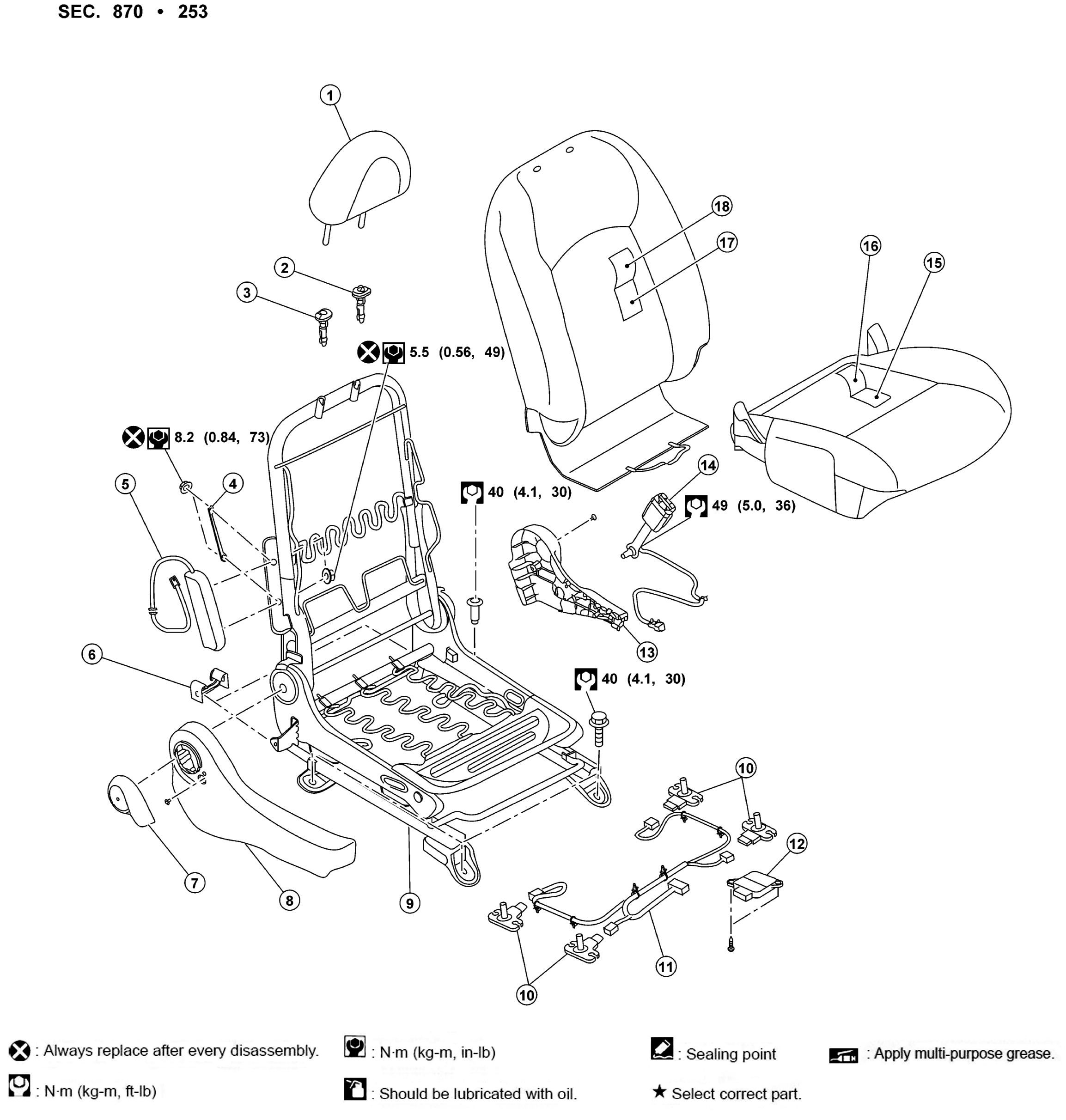

Exploded View With Torque Specifications
| 1. | Headrest | 2. | Headrest holder (locked) | 3. | Headrest holder (free) |
| 4. | Chute rod | 5. | Side air bag module | 6. | Slide finisher rear (LH/RH) |
| 7. | Recline lever | 8. | Seat cushion outer finisher (RH) | 9. | Seat frame |
| 10. | Occupant classification system sensors | 11. | Occupant classification system harness | 12. | Occupant classification system control unit |
| 13. | Seat cushion outer finisher (LH) | 14. | Seat belt buckle | 15. | Seat cushion pad |
| 16. | Seat cushion trim | 17. | Seatback pad | 18. | Seatback trim |
