Diagnostic Test
- START
Do you have CONSULT?
Do you have CONSULT?
YES
GO TO STEP 2 .
NO
GO TO STEP 3 .
- PERFORM M/T NEUTRAL POSITION LEARNING
With CONSULT
- Check that there is no sticking when shifting shift lever to the neutral position.
- Turn ignition switch ON.
- Select "M/T NEUTRAL POS LEARN" in "WORK SUPPORT" mode with CONSULT.
- Touch "Start" and wait a few seconds.NOTE:
Never touch shift lever. Otherwise learning may not complete normally.
- Make sure the "COMPLETE" is displayed on CONSULT screen.NOTE:
If "INCMP" is displayed, return to step 1 and repeat the procedures again.
END
- PERFORM M/T NEUTRAL POSITION LEARNING
Without CONSULT
NOTE:- It is better to count the time accurately with a clock.
- It is impossible to switch the learning mode when a clutch interlock switch circuit has a malfunction.
- Check that there is no sticking when shifting shift lever to the neutral position.

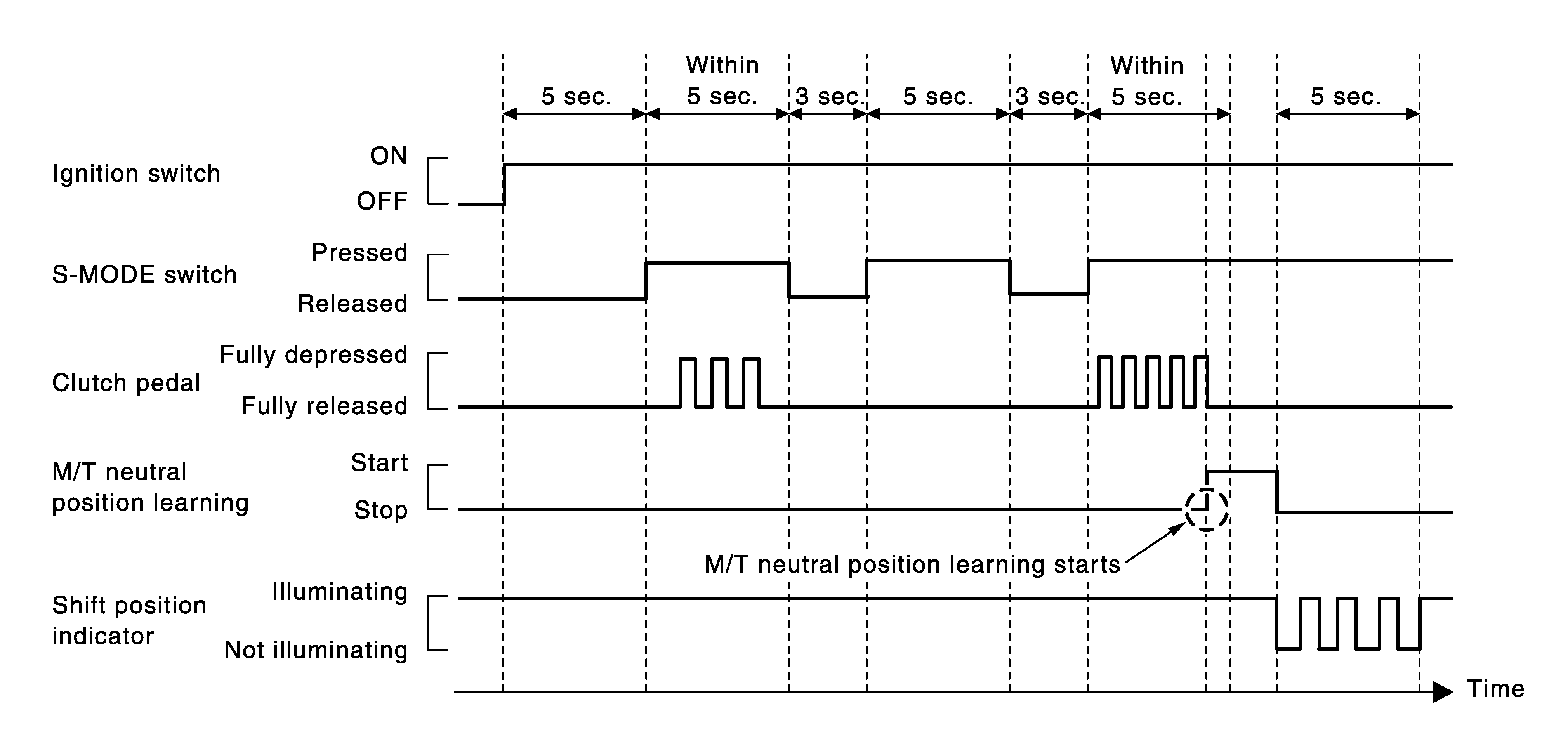

- Turn ignition switch ON and wait 5 seconds.
- Within 5 seconds repeat the following operation 3 times. Fully depress and fully release clutch pedal while pressing and holding S-MODE switch.
- Wait 3 seconds while S-MODE switch is released.
- Wait 5 seconds while pressing S-MODE switch.
- Wait 3 seconds while S-MODE switch is released.
- Within 5 seconds repeat the following operation 5 times. Fully depress and fully release clutch pedal while pressing and holding S-MODE switch.
ECM starts M/T Neutral Position Learning.
NOTE:Never touch shift lever. Otherwise learning may not complete normally.
- Shift position indicator on combination meter blinks for 5 seconds when the leaning is complete.NOTE:
If shift position indicator does not blink or blinks continuously, return to step 1 and repeat the procedures again.
END
