Component Location

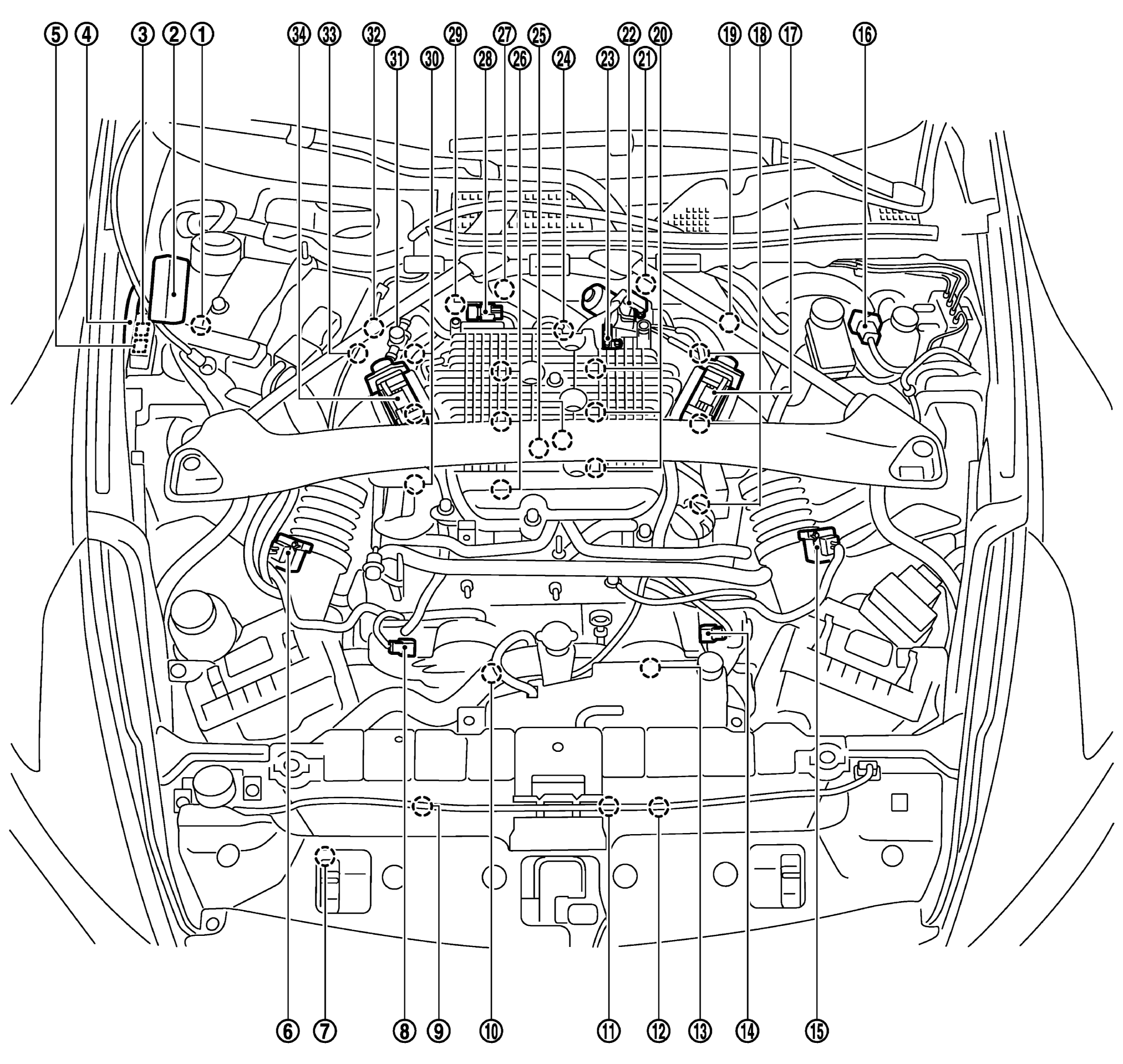

GNSJSBIA0158ZZ-158Courtesy of NISSAN NORTH AMERICA, INC.
1. Battery current sensor 2. IPDM E/R 3. Cooling fan relay
4. VVEL control module 5. VVEL actuator motor relay 6. Mass air flow sensor (with intake air temperature sensor) (bank 1)
7. Refrigerant pressure sensor 8. Camshaft position sensor (PHASE) (bank 1) 9. Cooling fan motor-2
10. Intake valve timing control solenoid valve (bank 1) 11. Cooling fan control module 12. Cooling fan motor-1
13. Intake valve timing control solenoid valve (bank 2) 14. Camshaft position sensor (PHASE) (bank 2) 15. Mass air flow sensor (bank 2)
16. Brake booster pressure sensor 17. Electric throttle control actuator (bank 2) 18. Ignition coil (with power transistor) and spark plug (bank 2)
19. A/F sensor 1 (bank 2) 20. Fuel injector (bank 2) 21. VVEL control shaft position sensor (bank 2)
22. VVEL actuator motor (bank 2) 23. Manifold absolute pressure (MAP) sensor 24. Engine coolant temperature sensor
25. Knock sensor 26. Fuel injector (bank 1) 27. VVEL actuator motor (bank 1)
28. EVAP canister purge volume control solenoid valve 29. VVEL control shaft position sensor (bank 1) 30. Ignition coil (with power transistor) and spark plug (bank 1)
31. EVAP service port 32. A/F sensor 1 (bank 1) 33. Crankshaft position sensor (POS)
34. Electric throttle control actuator (bank 1)

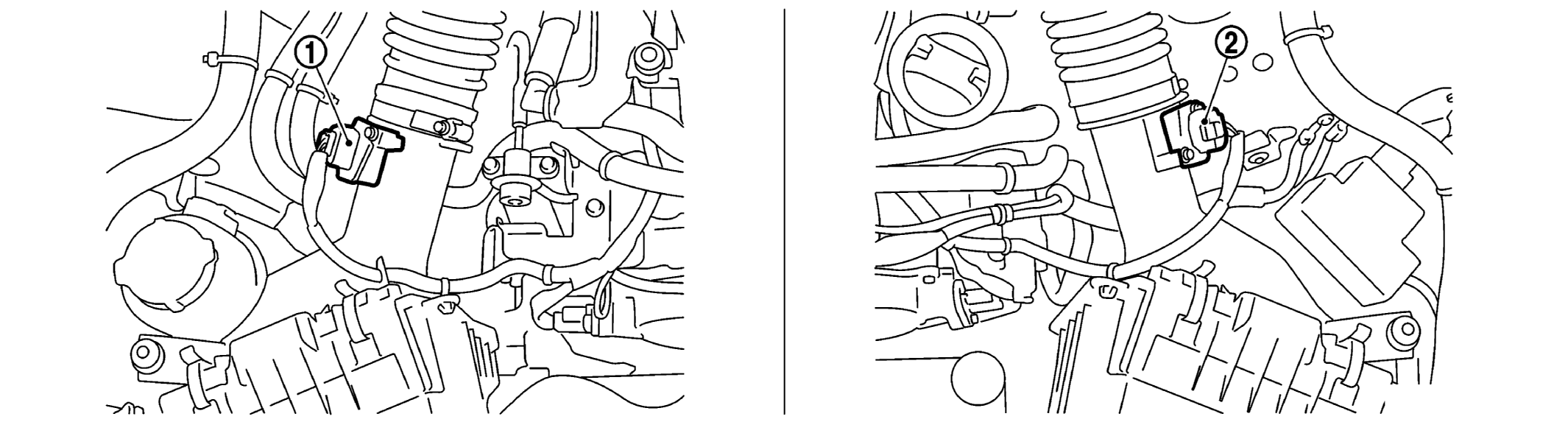

GNSJMBIA0838ZZ-838Courtesy of NISSAN NORTH AMERICA, INC.
1. Mass air flow sensor (with intake air temperature sensor) (bank 1) 2. Mass air flow sensor (bank 2)

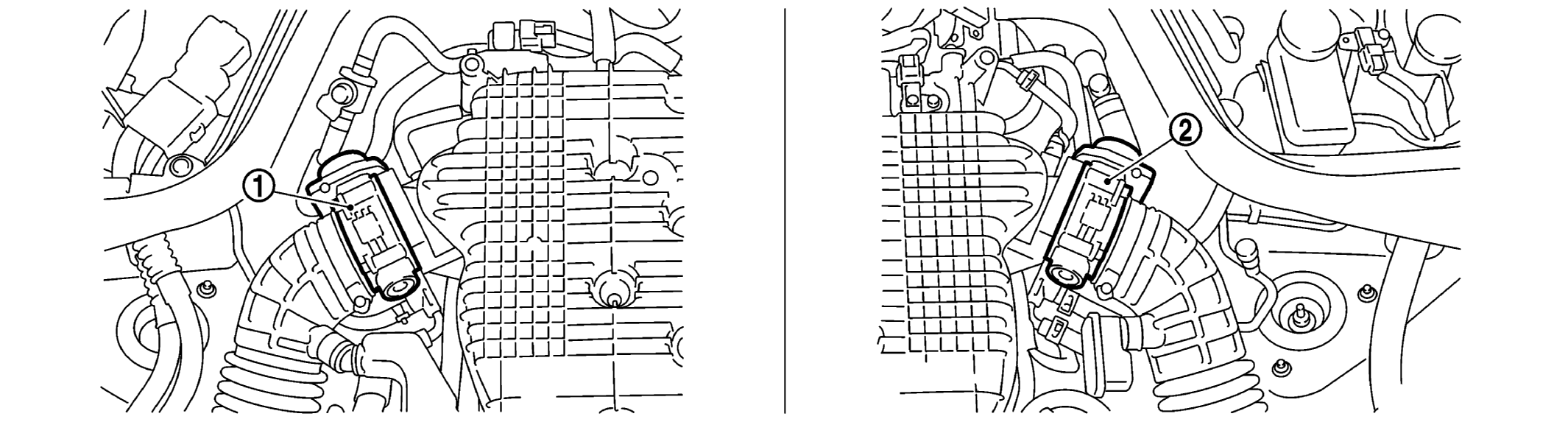

GNSJMBIA0839ZZ-839Courtesy of NISSAN NORTH AMERICA, INC.
1. Electric throttle control actuator (bank 1) 2. Electric throttle control actuator (bank 2)

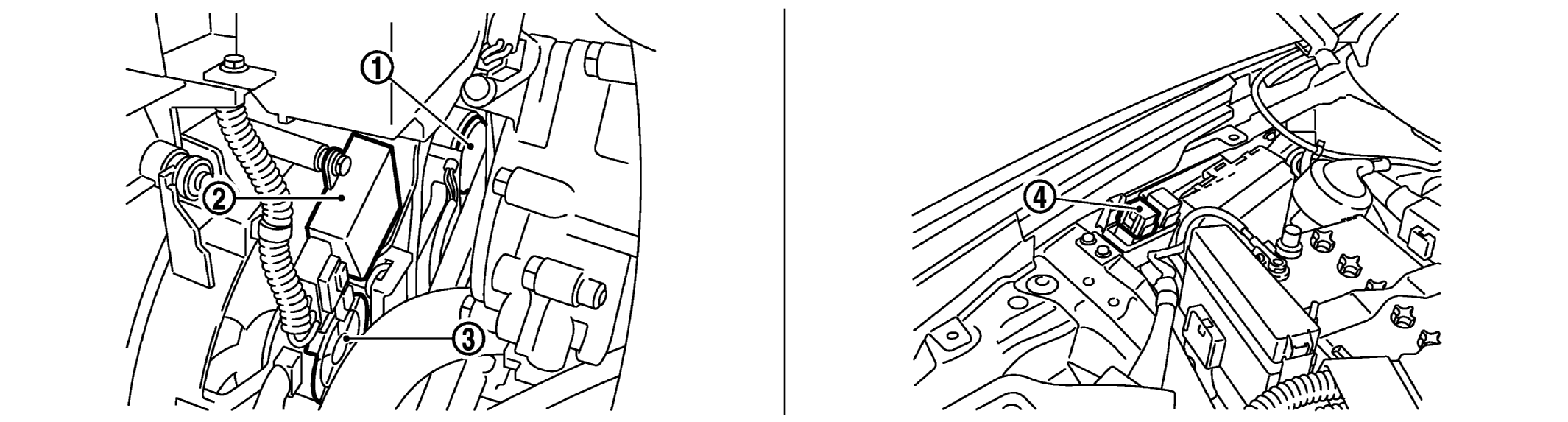

GNSJMBIA2042ZZ-042Courtesy of NISSAN NORTH AMERICA, INC.
ARROW : Vehicle front
1. Cooling fan motor-2 2. Cooling fan control module 3. Cooling fan motor-1
4. Cooling fan relay

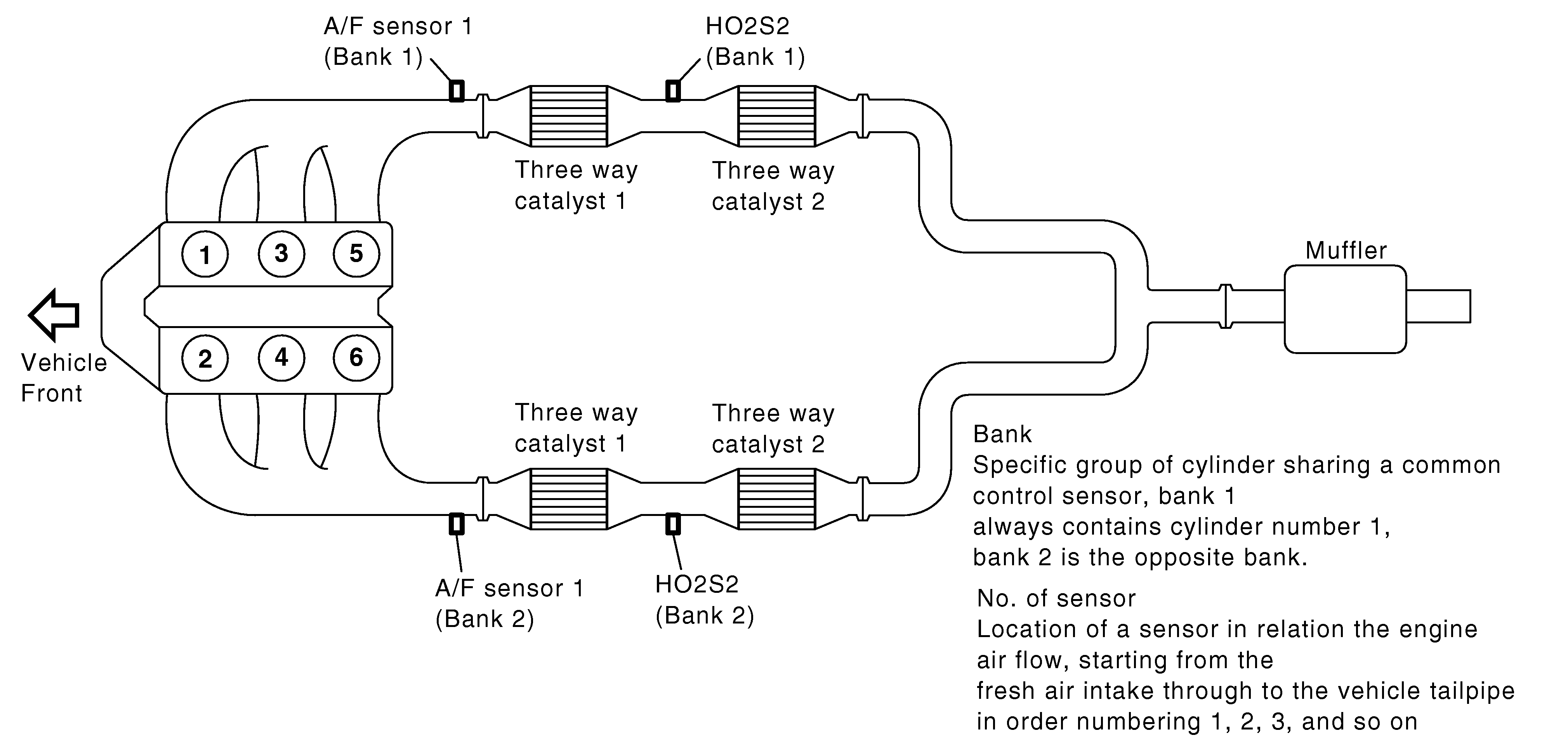

G04073725Courtesy of NISSAN NORTH AMERICA, INC.

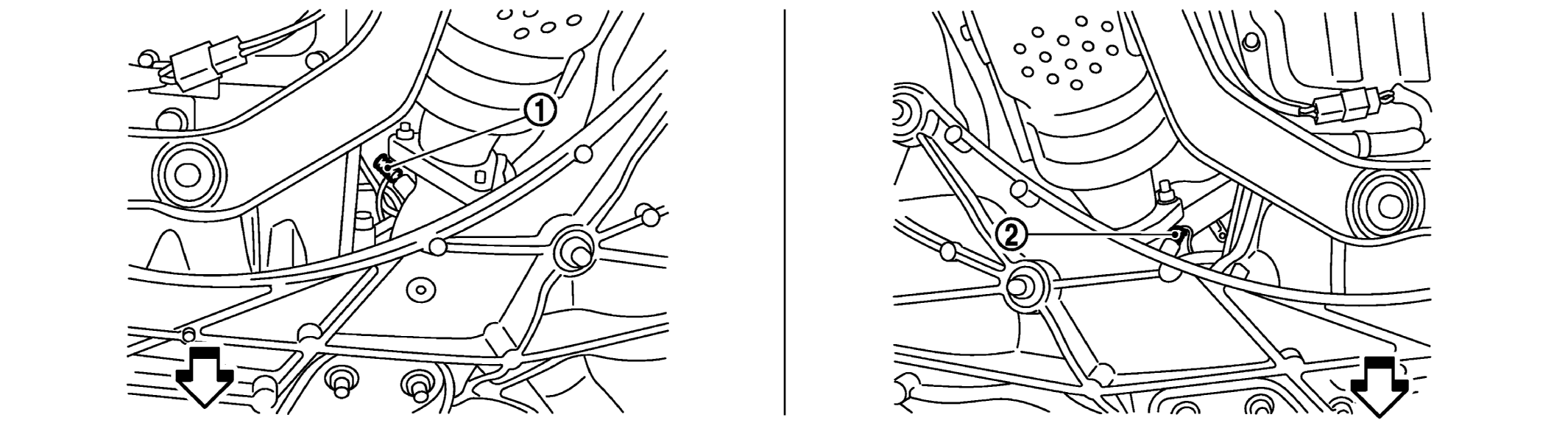

G05733167Courtesy of NISSAN NORTH AMERICA, INC.
ARROW : Vehicle front
1. A/F sensor 1 (bank 1) 2. A/F sensor 1 (bank 2)

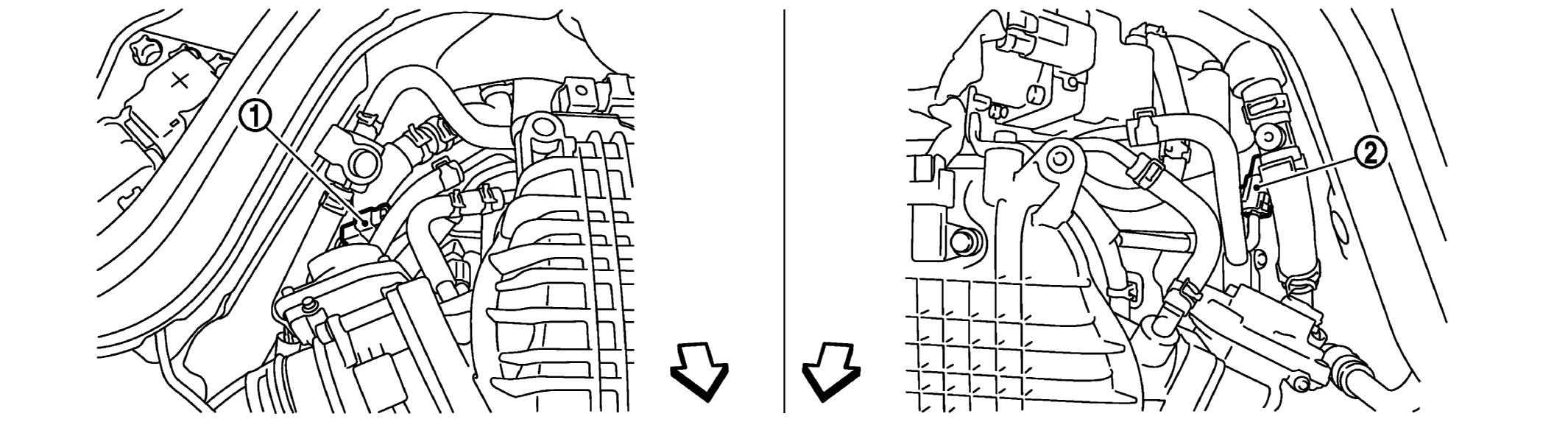

GNSJMBIA0841ZZ-841Courtesy of NISSAN NORTH AMERICA, INC.
ARROW : Vehicle front
1. A/F sensor 1 (bank 1) harness connector 2. A/F sensor 1 (bank 2) harness connector

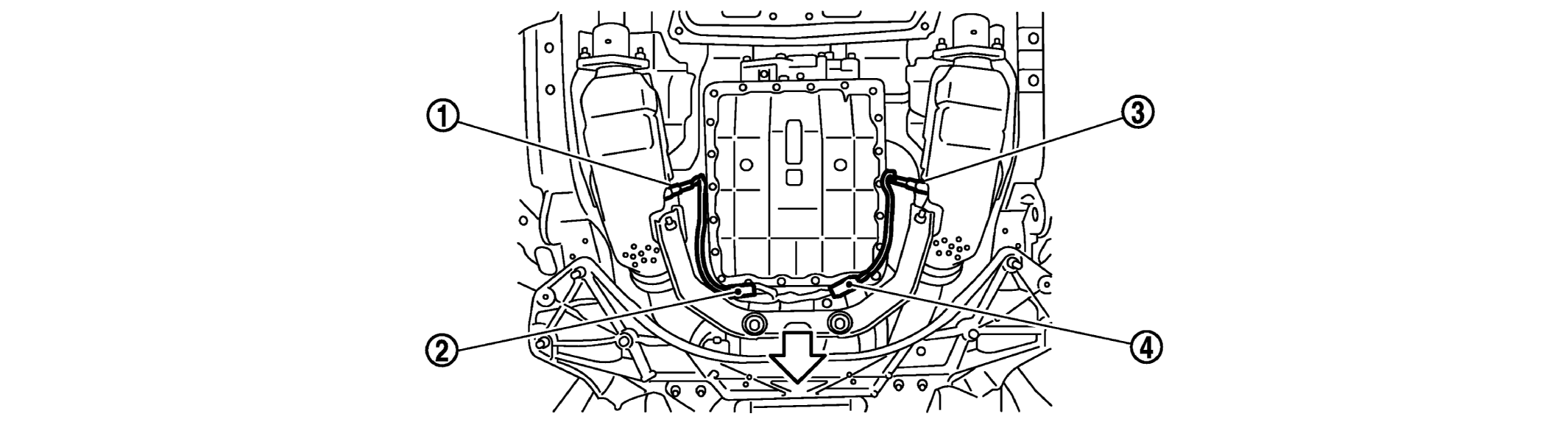

G08102405Courtesy of NISSAN NORTH AMERICA, INC.
ARROW : Vehicle front
1. Heated oxygen sensor 2 (bank 2) 2. Heated oxygen sensor 2 (bank 2) harness connector 3. Heated oxygen sensor 2 (bank 1)
4. Heated oxygen sensor 2 (bank 1) harness connector

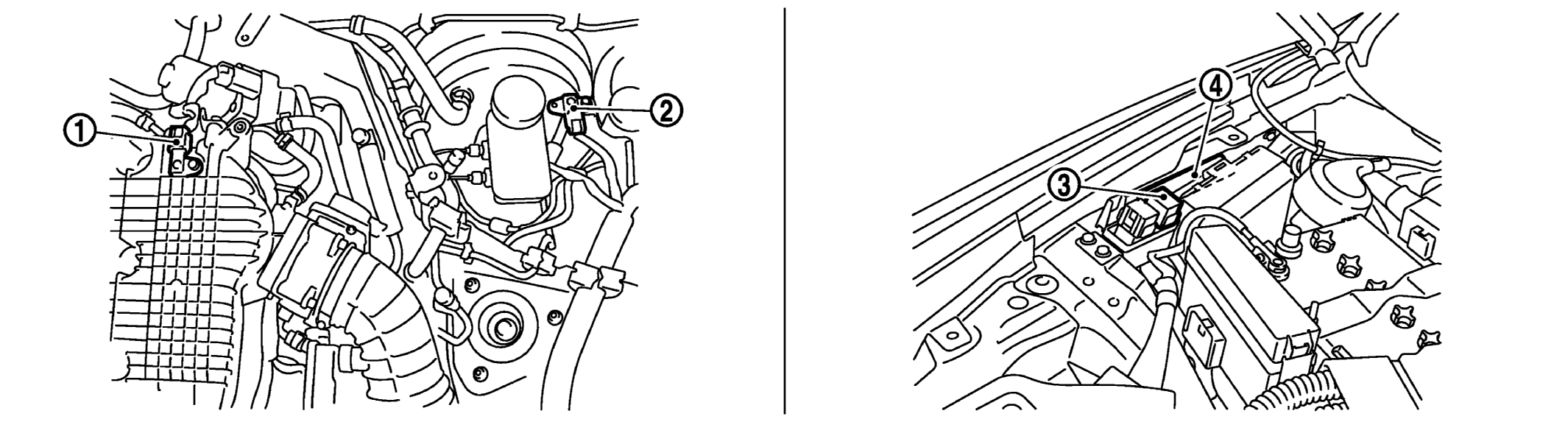

GNSJMBIA2044ZZ-044Courtesy of NISSAN NORTH AMERICA, INC.
1. Manifold absolute pressure (MAP) sensor 2. Brake booster pressure sensor 3. VVEL actuator motor relay
4. VVEL control module

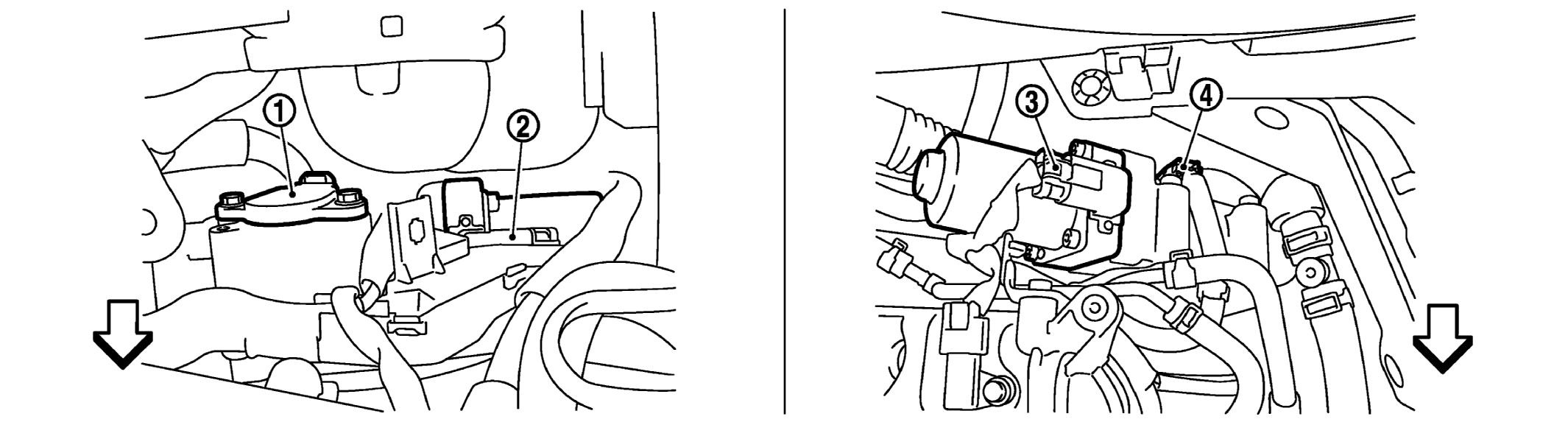

GNSJMBIA0851ZZ-851Courtesy of NISSAN NORTH AMERICA, INC.
ARROW : Vehicle front
1. VVEL control shaft position sensor (bank 1) 2. VVEL actuator motor (bank 1) 3. VVEL actuator motor (bank 2)
4. VVEL control shaft position sensor (bank 2)

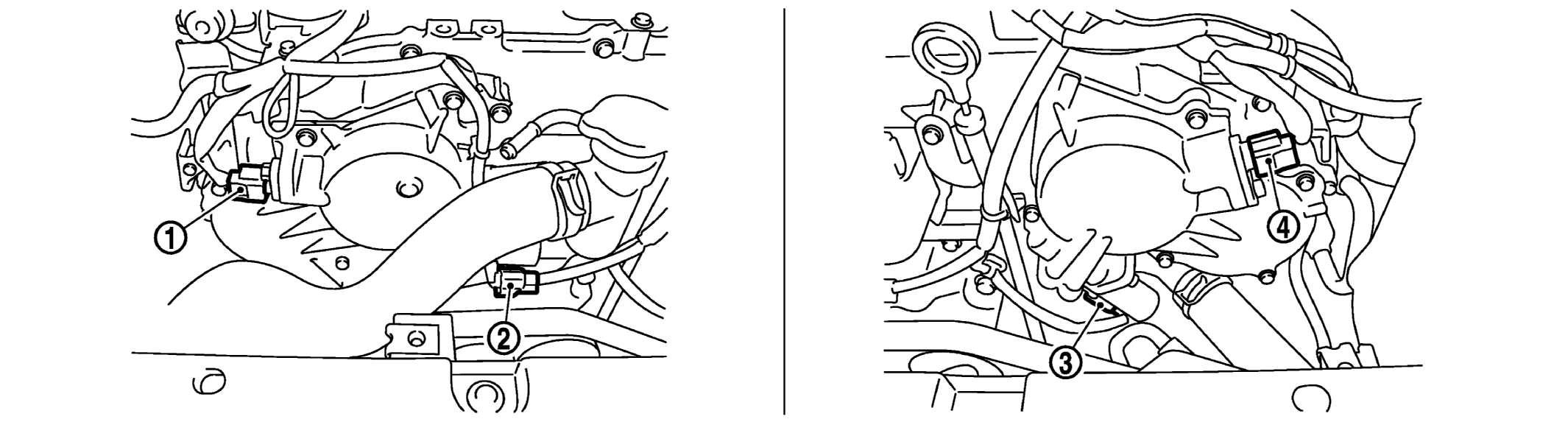

GNSJMBIA0842ZZ-842Courtesy of NISSAN NORTH AMERICA, INC.
1. Camshaft position sensor (PHASE) (bank 1) 2. Intake valve timing control solenoid valve (bank 1) harness connector 3. Intake valve timing control solenoid valve (bank 2) harness connector
4. Camshaft position sensor (PHASE) (bank 2)

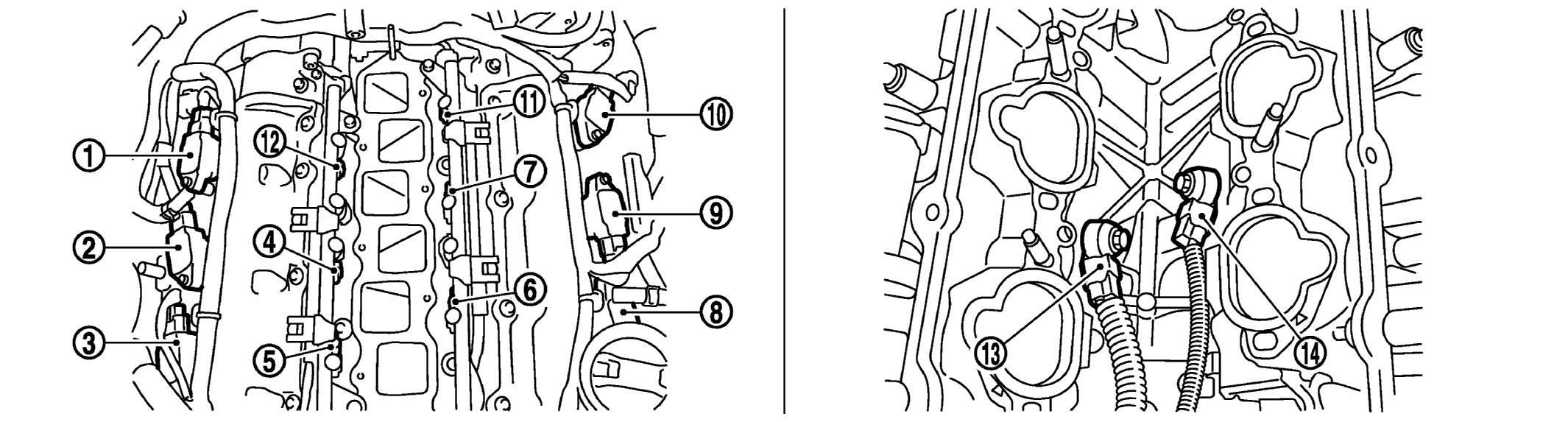

GNSJMBIA0843ZZ-843Courtesy of NISSAN NORTH AMERICA, INC.
1. Ignition coil No. 5 (with power transistor) 2. Ignition coil No. 3 (with power transistor) 3. Ignition coil No. 1 (with power transistor)
4. Fuel injector No. 3 5. Fuel injector No. 1 6. Fuel injector No. 2
7. Fuel injector No. 4 8. Ignition coil No. 2 (with power transistor) 9. Ignition coil No. 4 (with power transistor)
10. Ignition coil No. 6 (with power transistor) 11. Fuel injector No. 6 12. Fuel injector No. 5
13. Knock sensor (bank 1) 14. Knock sensor (bank 2)

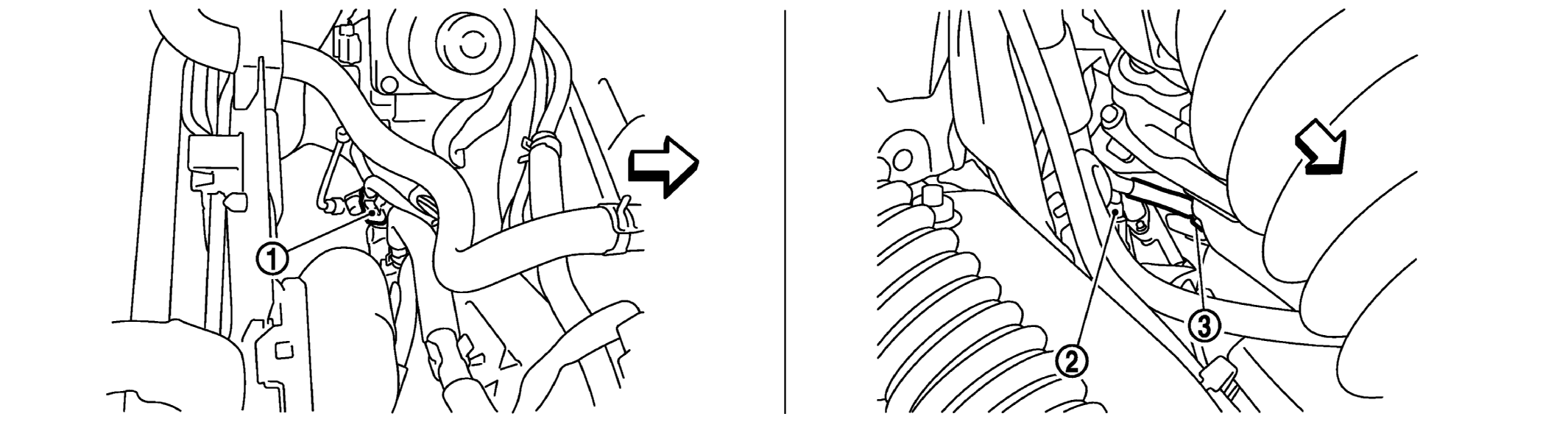

GNSJMBIA0844ZZ-844Courtesy of NISSAN NORTH AMERICA, INC.
ARROW : Vehicle front
1. Engine coolant temperature sensor 2. A/F sensor 1 (bank 1) 3. Crankshaft position sensor (POS)

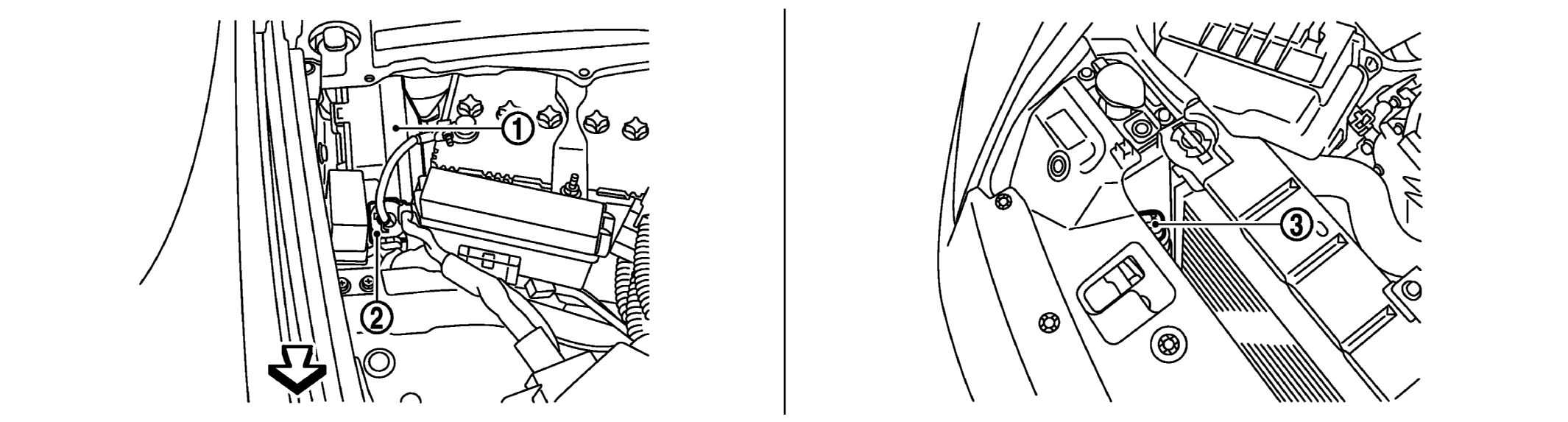

GNSJMBIA2280ZZ-280Courtesy of NISSAN NORTH AMERICA, INC.
ARROW : Vehicle front
1. IPDM E/R 2. Battery current sensor 3. Refrigerant pressure sensor

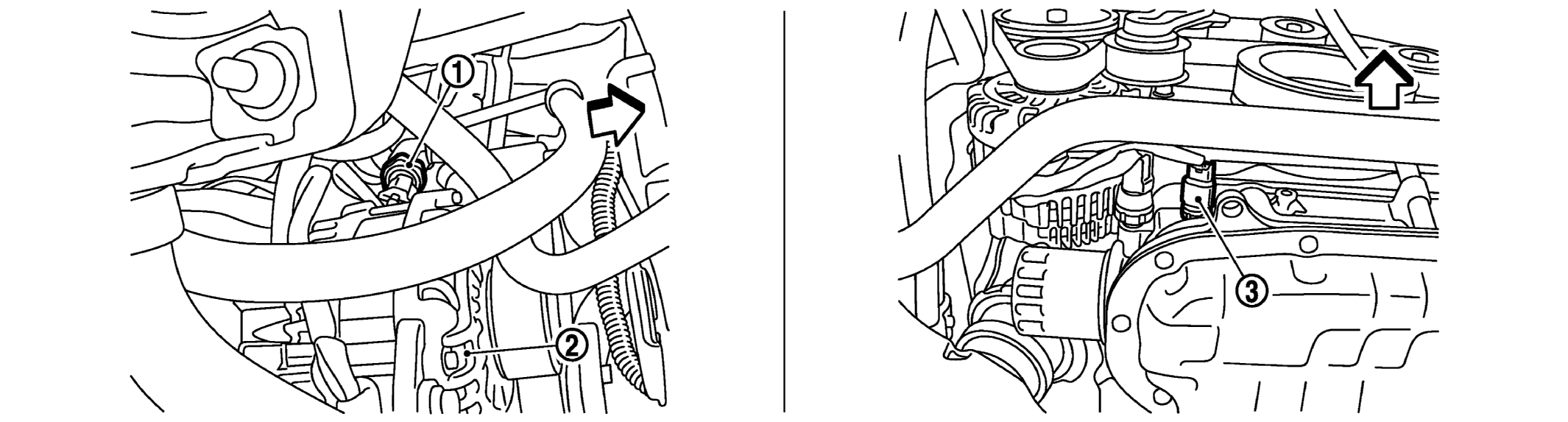

GNSJMBIA0014ZZ-014Courtesy of NISSAN NORTH AMERICA, INC.
ARROW : Vehicle front
1. Power steering pressure sensor 2. Alternator 3. Engine oil temperature sensor

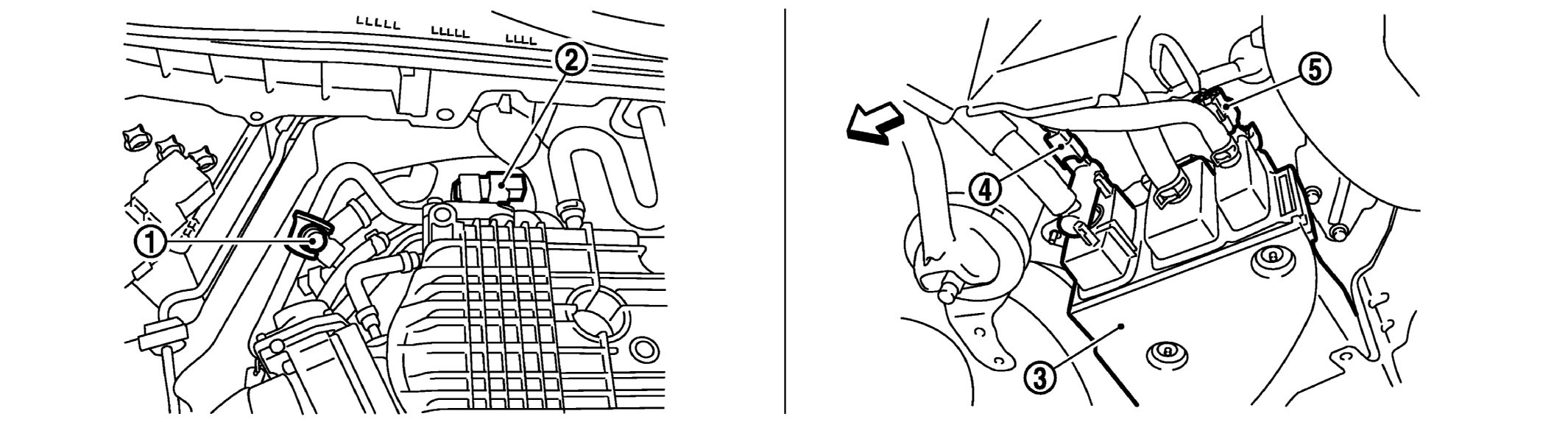

GNSJMBIA0845ZZ-845Courtesy of NISSAN NORTH AMERICA, INC.
ARROW : Vehicle front
1. EVAP service port 2. EVAP canister purge volume control solenoid valve 3. EVAP canister
4. EVAP canister vent control valve 5. EVAP control system pressure sensor

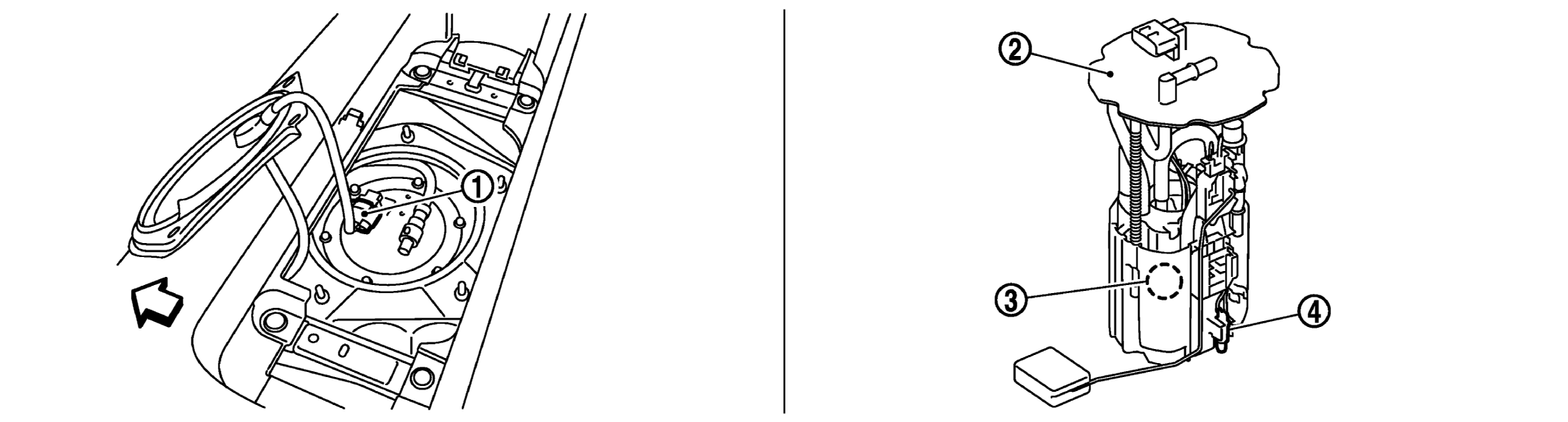

GNSJMBIA2045ZZ-045Courtesy of NISSAN NORTH AMERICA, INC.
ARROW : Vehicle front
1. Fuel level sensor unit and fuel pump harness connector 2. Fuel level sensor unit and fuel pump 3. Fuel pressure regulator
4. Fuel tank temperature sensor

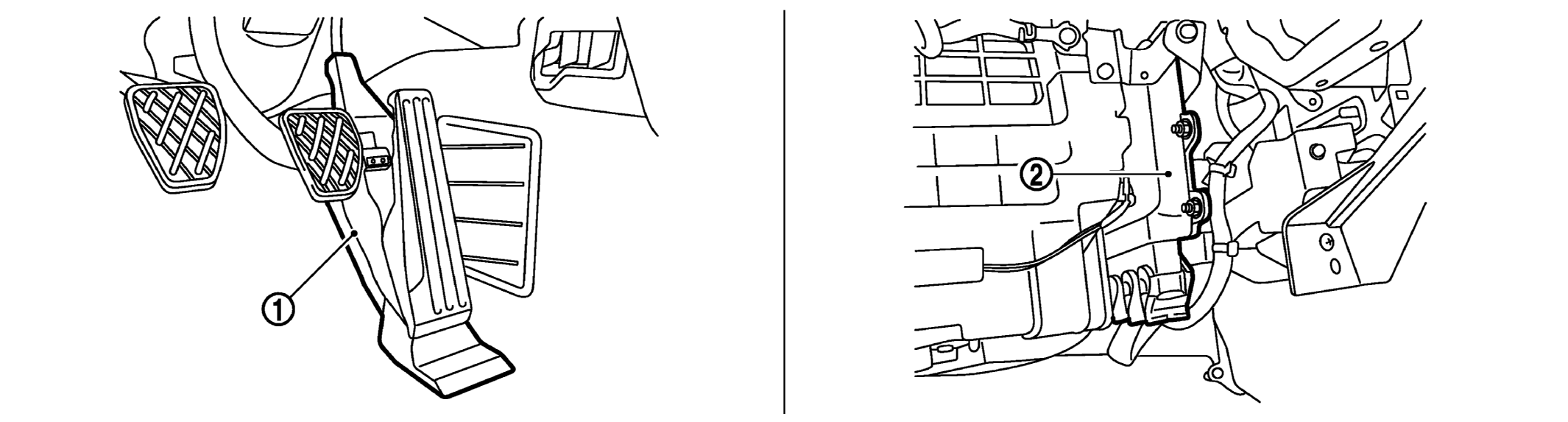

GNSJMBIA2046ZZ-046Courtesy of NISSAN NORTH AMERICA, INC.
1. Accelerator pedal position sensor 2. ECM

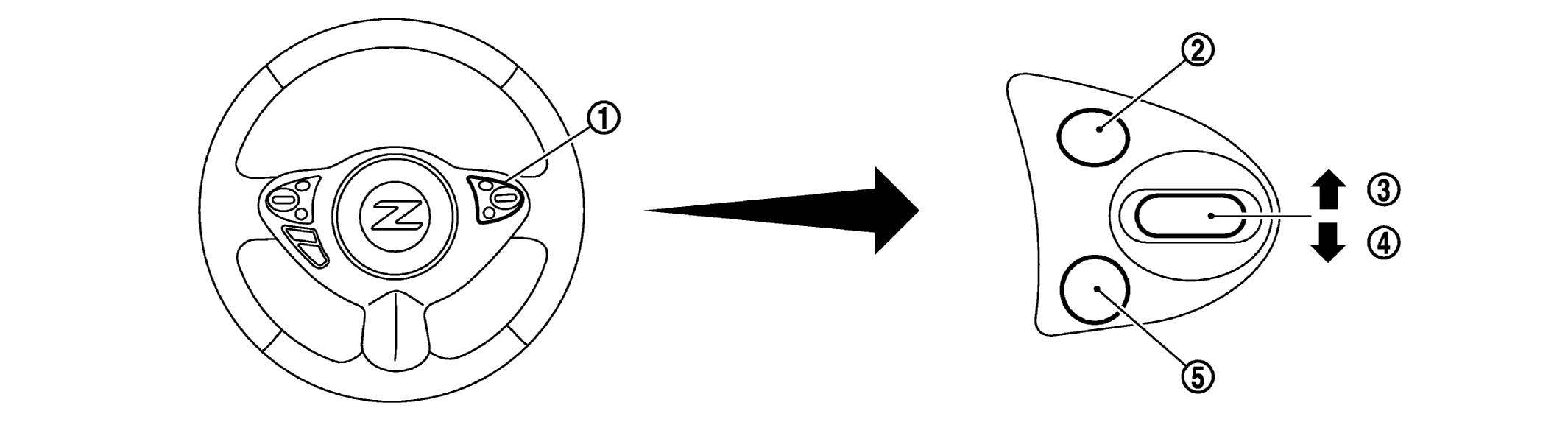

GNSJMBIA2047ZZ-047Courtesy of NISSAN NORTH AMERICA, INC.
1. ASCD steering switch 2. CANCEL switch 3. RESUME/ACCELERATE switch
4. SET/COAST switch 5. MAIN switch

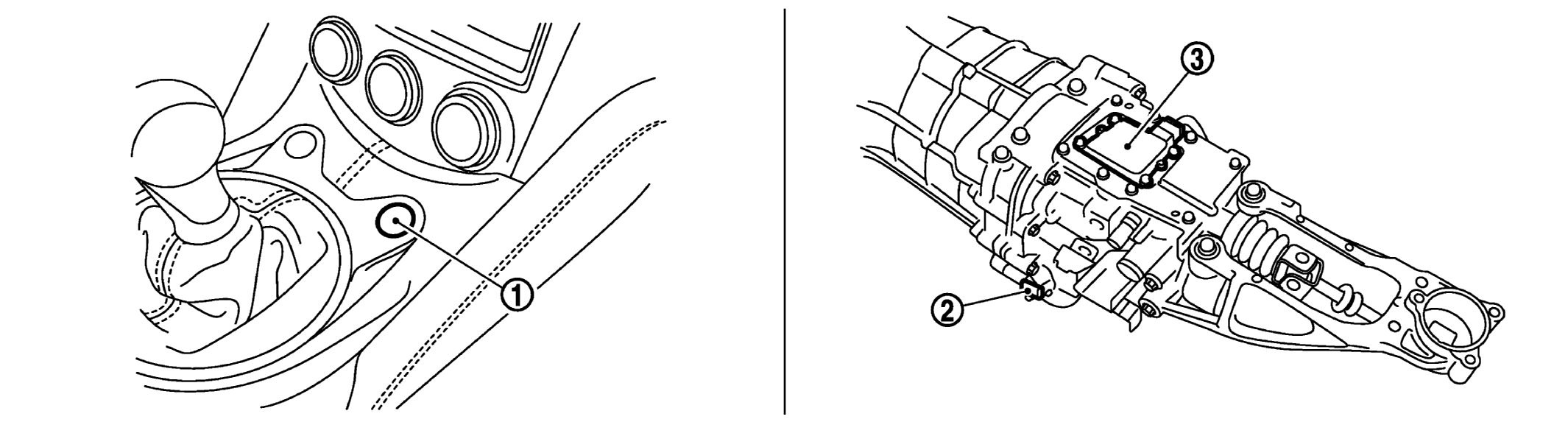

GNSJMBIA2048ZZ-048Courtesy of NISSAN NORTH AMERICA, INC.
1. S-mode switch 2. Input speed sensor 3. Gear lever position sensor

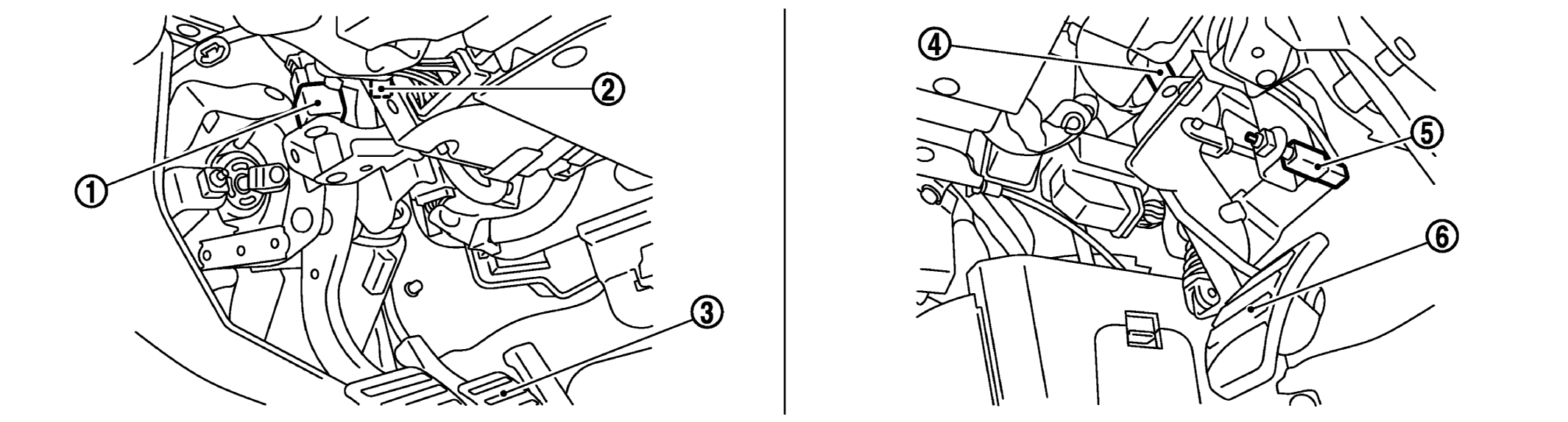

GNSJMBIA2175ZZ-175Courtesy of NISSAN NORTH AMERICA, INC.
1. Stop lamp switch 2. ASCD brake switch 3. Brake pedal
4. Clutch pedal position switch 5. Clutch interlock switch 6. Clutch pedal
