Exploded View With Torque Specifications

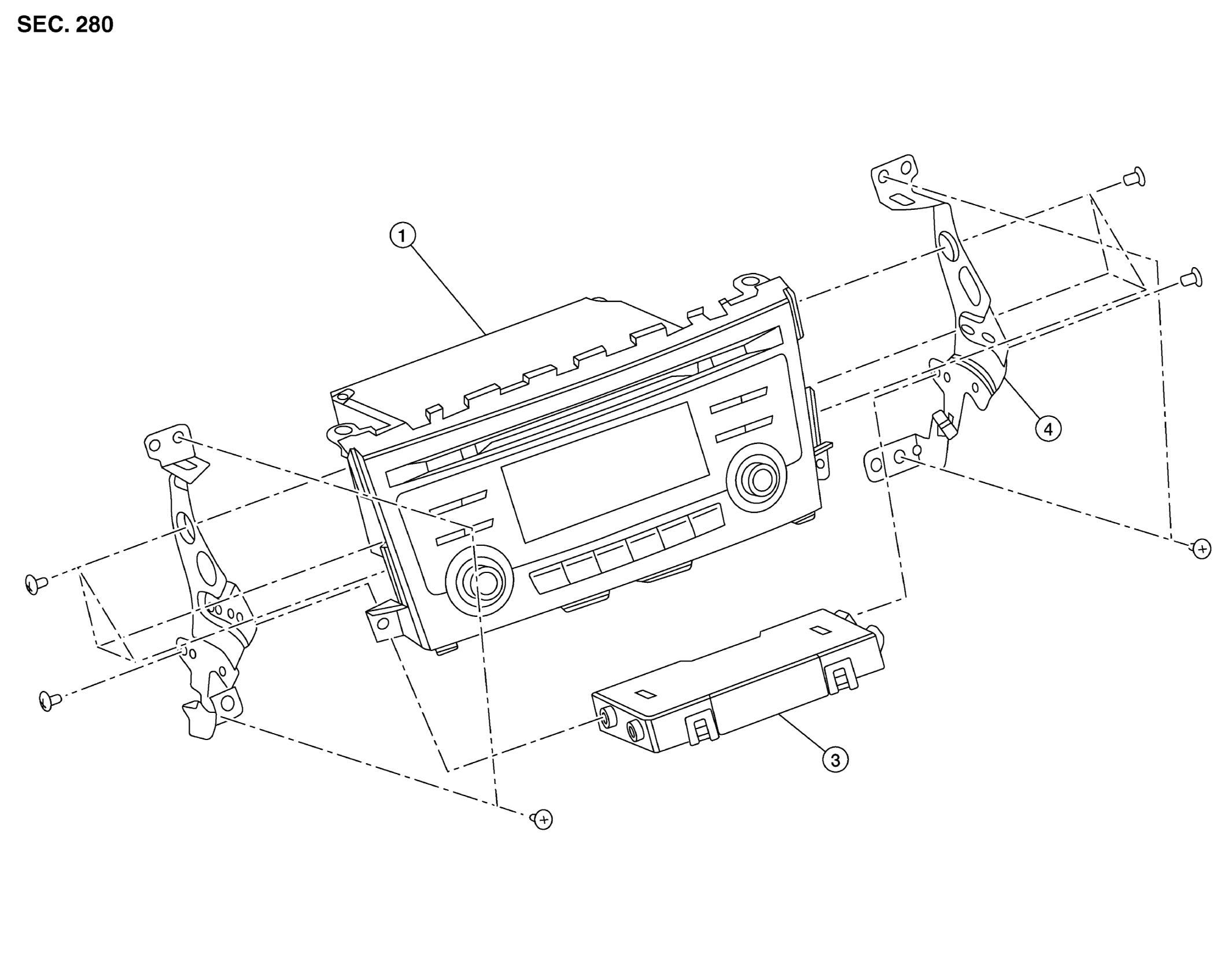

Fig 1: Audio Unit
GNSAWNIA4209ZZ-209Courtesy of NISSAN NORTH AMERICA, INC.
1. Audio unit 2. Audio unit bracket (LH) 3. A/C auto amp.
4. Audio unit bracket (RH)
