Method Of Starting

  1. Turn the ignition ON.
  2. Turn the audio system OFF.
  3. While pressing the APPS button, turn the TUNE-SCROLL dial counterclockwise 5 or more clicks, then clockwise 5 or more clicks, then counterclockwise 5 or more clicks. Shifting from current screen to previous screen is performed by pressing BACK button.

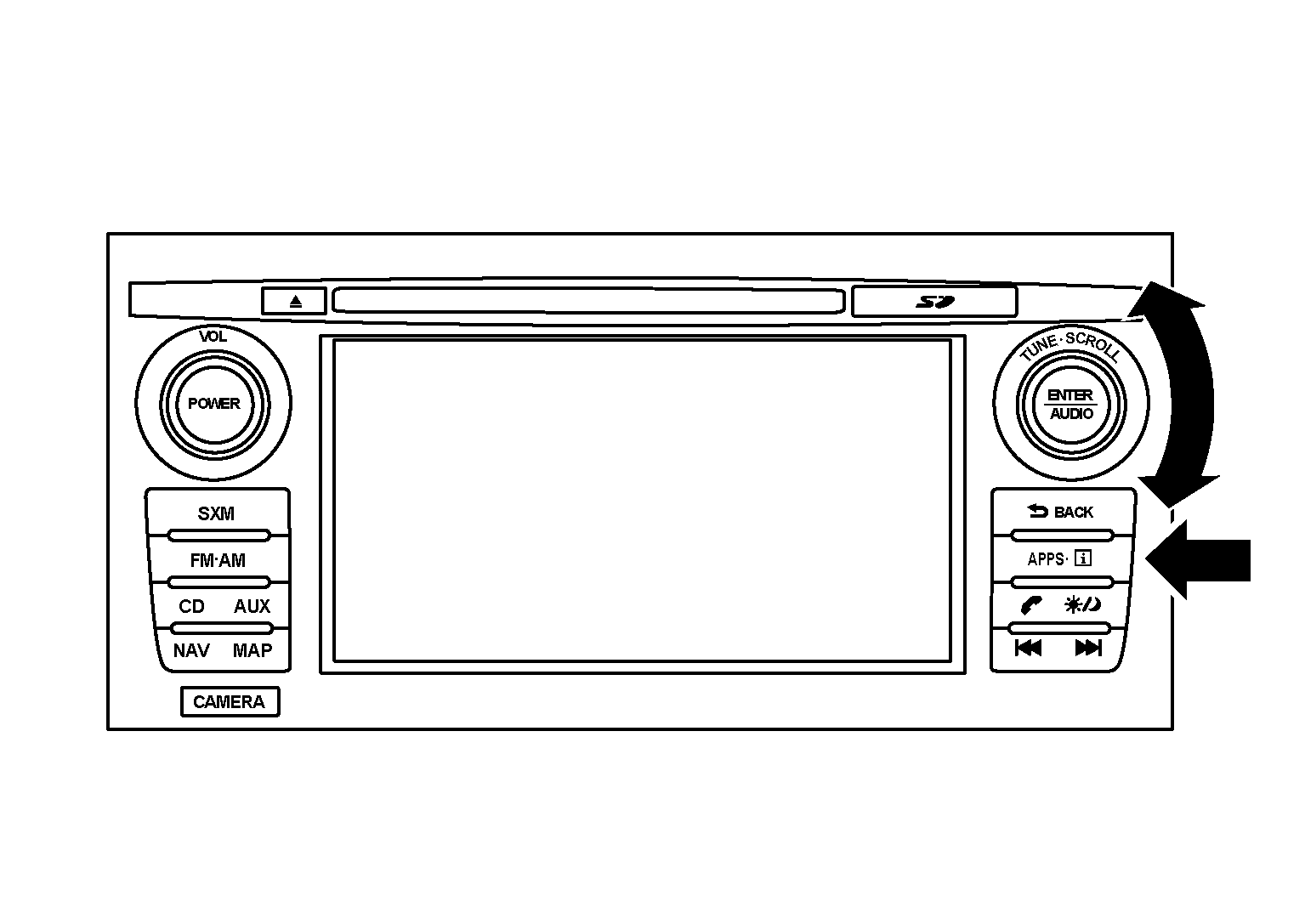

    Fig 1: APPS Button And TUNE-SCROLL Dial
    GNSAWNIA3850ZZ-850Courtesy of NISSAN NORTH AMERICA, INC.
  4. The trouble diagnosis initial screen is displayed, and Version, User Configuration, Radio, System State or Self Test can be selected.
    Fig 2: Service Menu Screen Display
    GNSAWNIA3745ZZ-745Courtesy of NISSAN NORTH AMERICA, INC.
