Exploded View With Torque Specifications

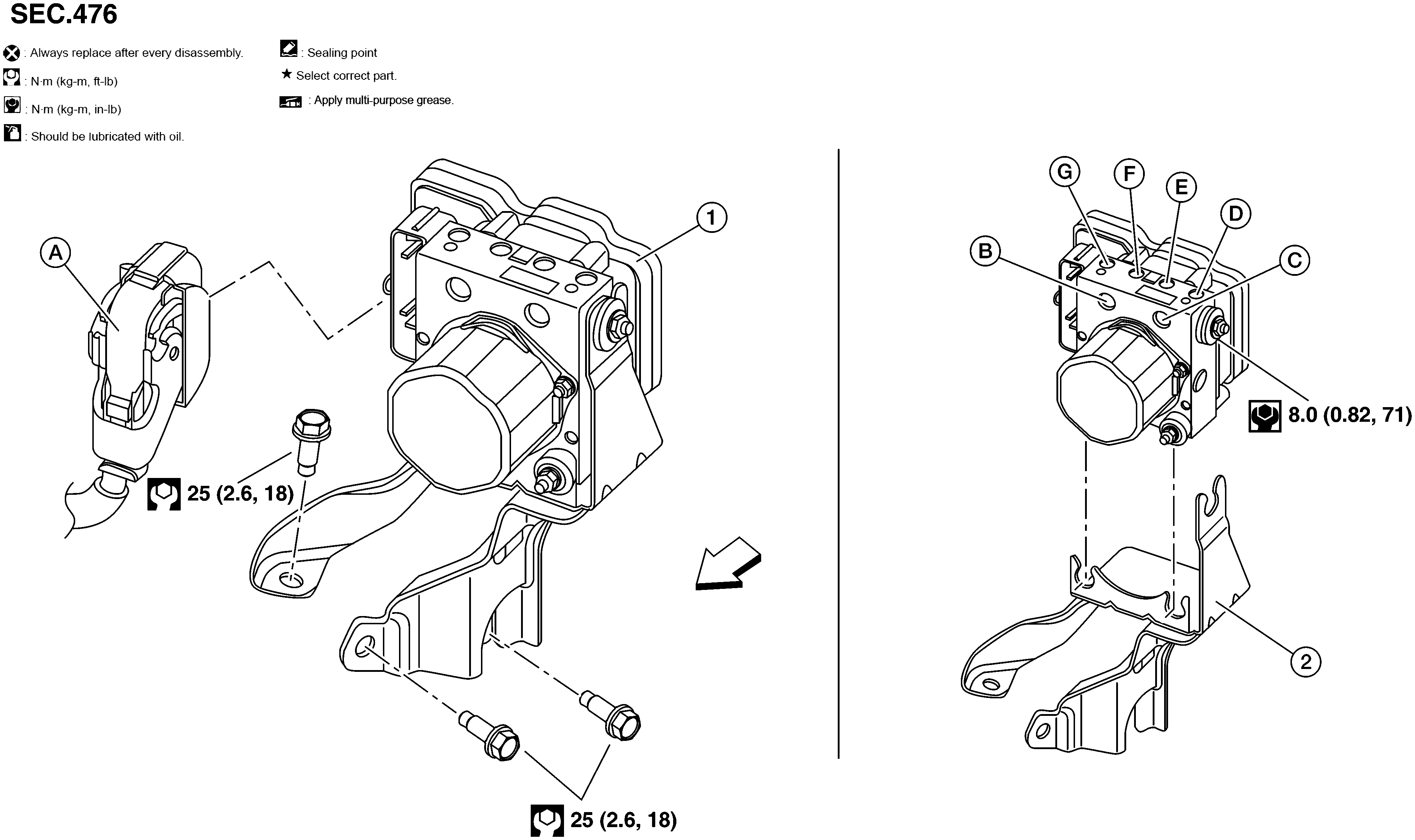

Fig 1: ABS Actuator And Electric Unit (Control Unit) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	ABS actuator and electric unit (control unit)	2.	Bracket	A.	ABS actuator and electric unit (control unit) harness connector
B.	To master cylinder secondary side	C.	To master cylinder primary side	D.	To rear brake caliper (LH)
E.	To front brake caliper (RH)	F.	To front brake caliper (LH)	G.	To rear brake caliper (RH)
	Front
