Component Location
WARNING: This page is about a different car, the 2017 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|

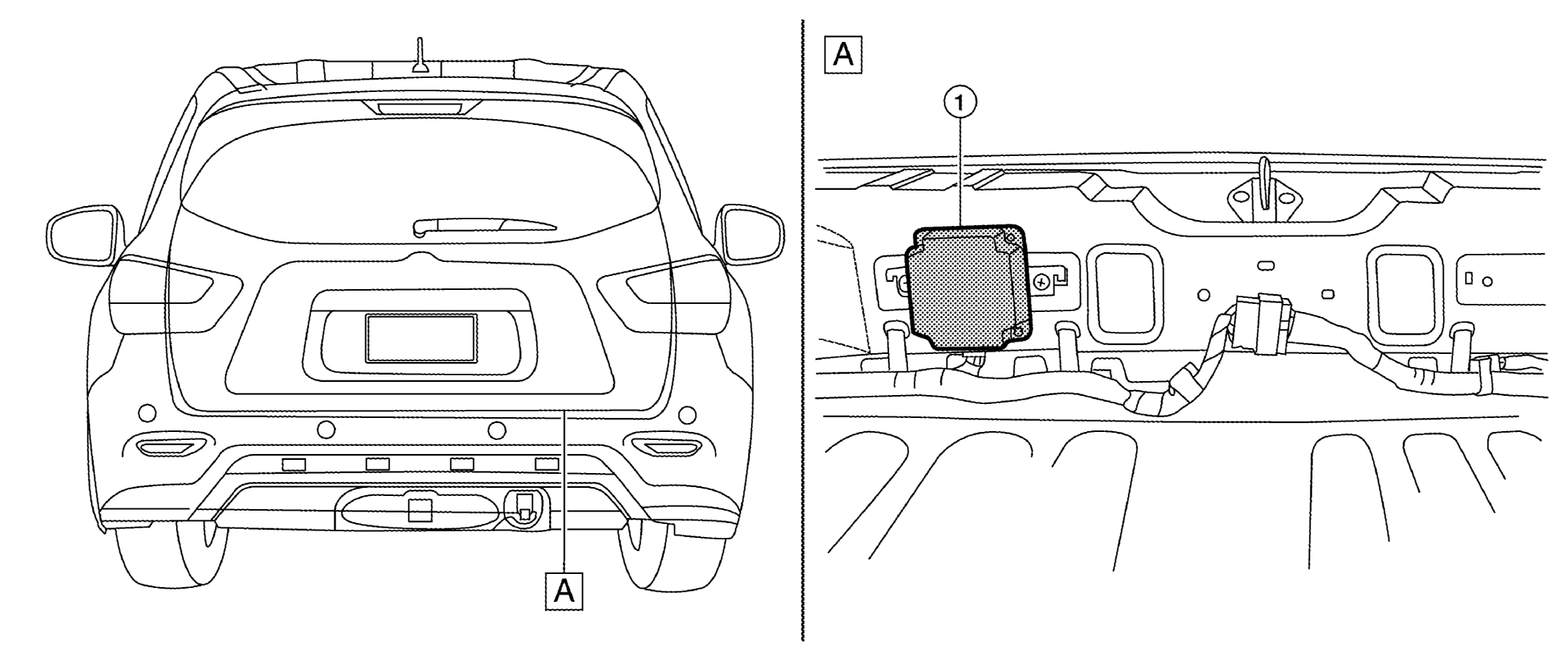

| A. |
Rear storage area (view with storage box removed) |
|
|
| No. |
Component |
Description |
| 1. |
ADAS control unit |
- Controls each system, based on CAN communication and ITS communication signals received from each control unit.
- Transmits signals necessary for control between CAN communication and ITS communication.
|
