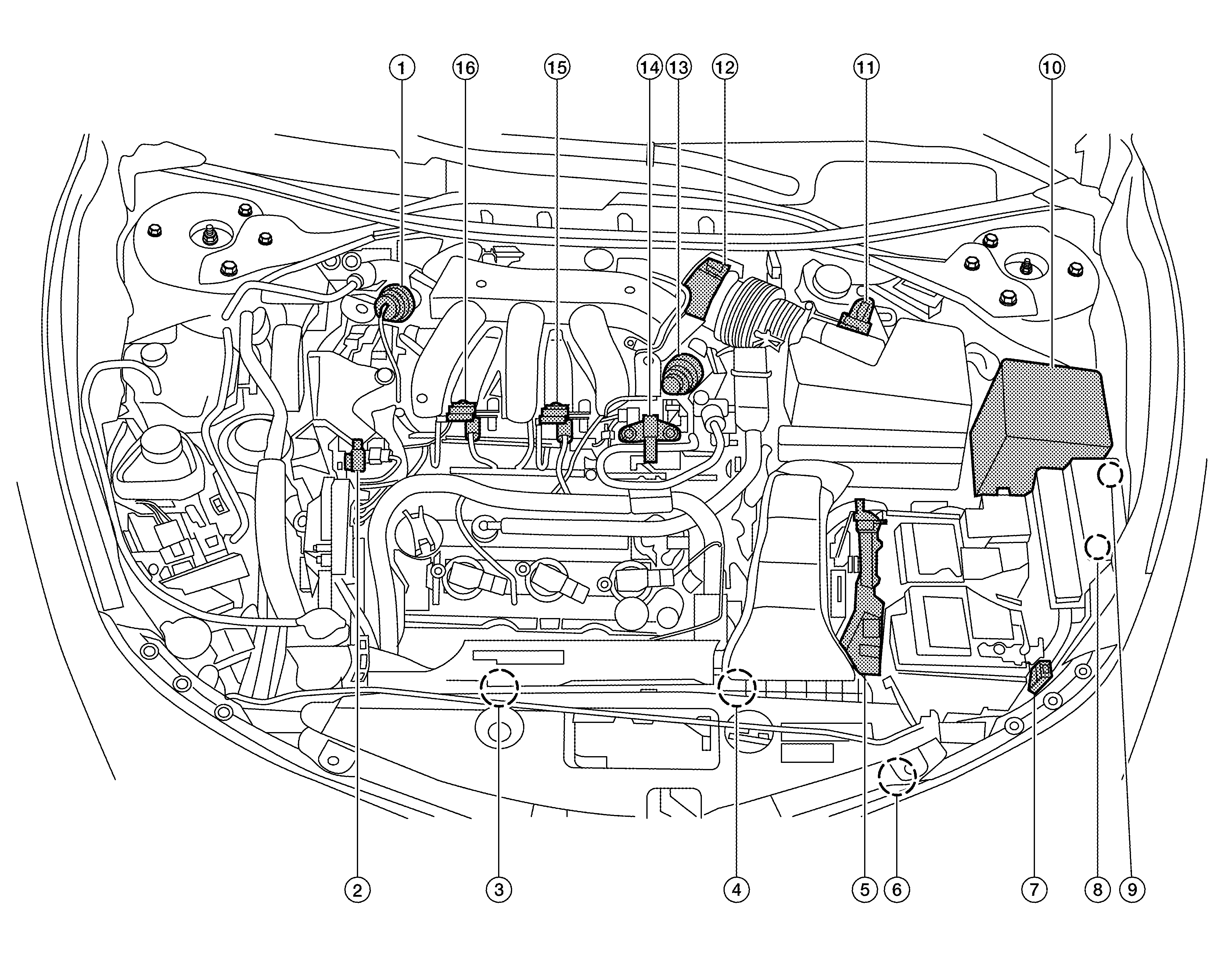

Engine Room
WARNING: This page is about a different variant/trim than selected.
| No. | Component | Function |
|---|---|---|
| 1. | Power valve actuator 1 | POWER VALVE ACTUATOR 1 AND 2 |
| 2. | Electronic controlled engine mount control solenoid valve | ELECTRONIC CONTROLLED ENGINE MOUNT |
| 3. | Cooling fan motor-2 | COOLING FAN |
| 4. | Cooling fan motor-1 | COOLING FAN |
| 5. | ECM | ECM |
| 6. | Refrigerant pressure sensor | REFRIGERANT PRESSURE SENSOR |
| 7. | Battery current sensor (with battery temperature sensor) | BATTERY CURRENT SENSOR (WITH BATTERY TEMPERATURE SENSOR) |
| 8. | Cooling fan motor relay-2 | COOLING FAN |
| 9. | Cooling fan motor relay-3 | COOLING FAN |
| 10. | IPDM E/R | IPDM E/R activates the internal control circuit to perform the relay ON-OFF control according to the input signals from various sensors and the request signals received from control units via CAN communication. Refer to REMOVAL AND INSTALLATION for detailed installation location. |
| 11. | Mass air flow sensor (with intake air temperature sensor) | MASS AIR FLOW SENSOR (WITH INTAKE AIR TEMPERATURE SENSOR) |
| 12. | Electric throttle control actuator | ELECTRIC THROTTLE CONTROL ACTUATOR |
| 13. | Power valve actuator 2 | POWER VALVE ACTUATOR 1 AND 2 |
| 14. | EVAP canister purge volume control solenoid valve | EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE |
