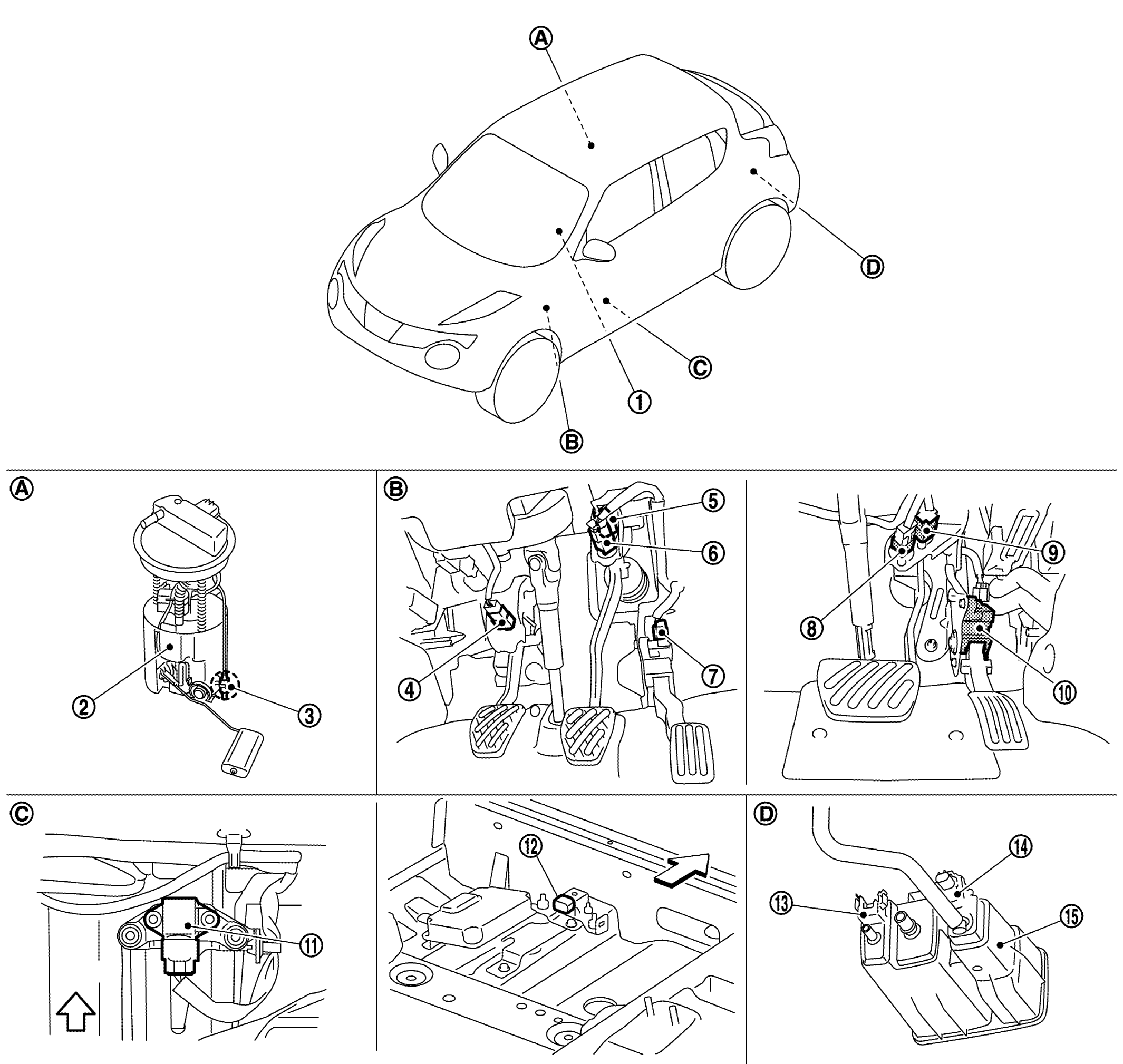

Body Compartment
| 1. | ASCD steering switch | 2. | Fuel level sensor unit, fuel filter and fuel pump assembly | 3. | Fuel tank temperature sensor |
| 4. | Clutch pedal position switch (with M/T models) |
5. | Brake pedal position switch (with M/T models) |
6. | Stop lamp switch (with M/T models) |
| 7. | Accelerator pedal position sensor (with M/T models) |
8. | Brake pedal position switch (with CVT models) |
9. | Stop lamp switch (with CVT models) |
| 10. | Accelerator pedal position sensor (with CVT models) |
11. | G sensor (with 2WD models) |
12. | G sensor (with AWD models) |
| 13. | EVAP control system pressure sensor | 14. | EVAP canister vent control valve | 15. | EVAP canister |
| A. | Under of right side second seat | B. | Periphery of pedals | C. | Under of left side front seat |
| D. | Fuel tank rear | ||||
| : Vehicle front |
