Exploded View With Torque Specifications

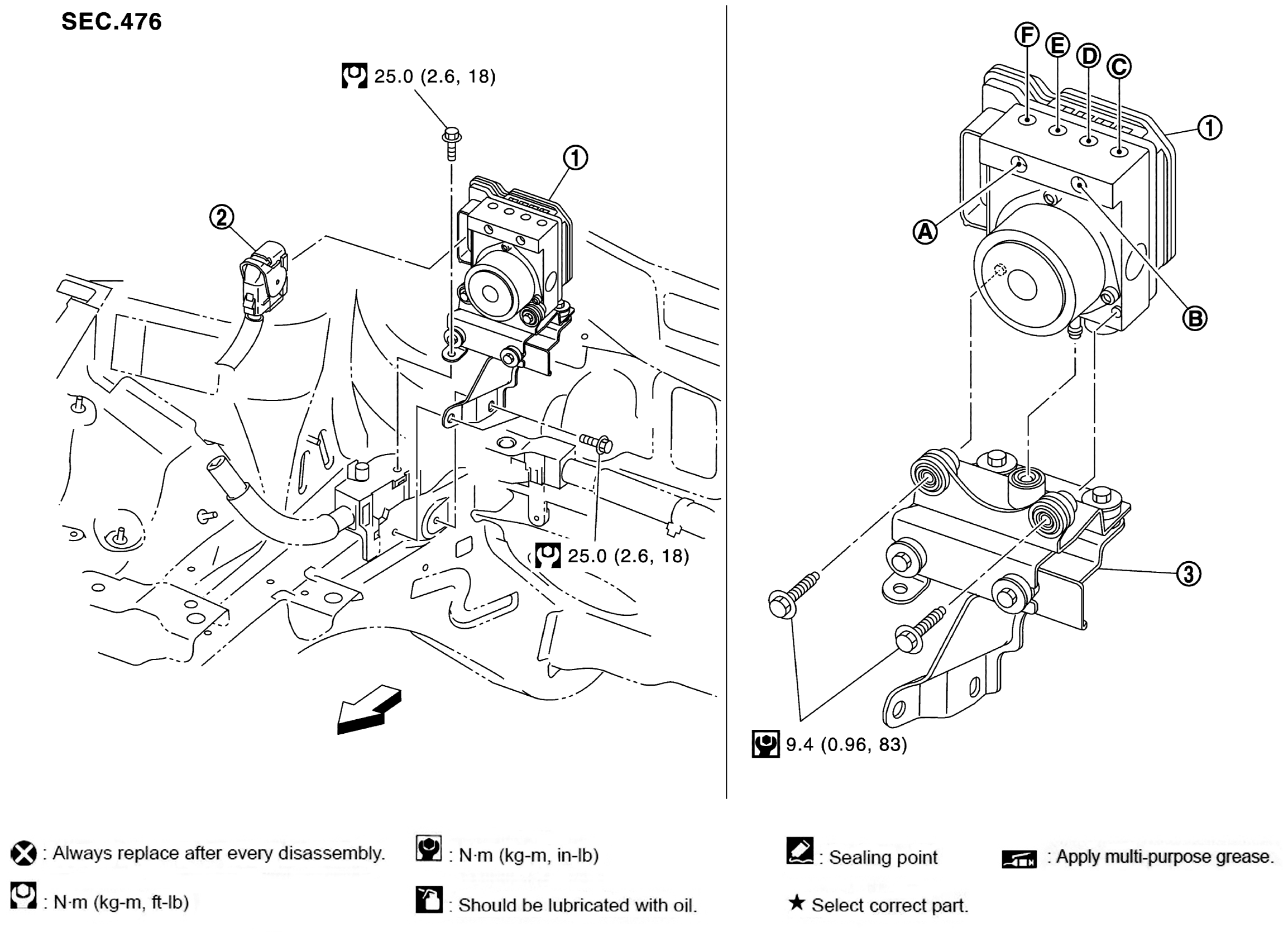

Fig 1: Exploded View Of ABS Actuator And Electric Unit (Control Unit) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	ABS actuator and electric unit (control unit)	2.	ABS actuator and electric unit (control unit) harness connector	3.	Bracket
A.	To electrically-driven intelligent brake unit secondary side	B.	To electrically-driven intelligent brake unit primary side	C.	To front caliper (LH)
D.	To rear caliper (RH)	E.	To rear caliper (LH)	F.	To front caliper (RH)
Front
