Physical Values

Terminal
(Wire color)		 Description Condition Reference value
(Approx.)
+ - Signal name Input/Output
19
(G)		 Ground Battery power supply Input Ignition switch OFF Battery voltage
23
(LG)		 - M-CAN low Input/Output - -
24
(SB)		 - M-CAN high Input/Output - -
25
(P)		 - CAN low Input/Output - -
26
(L)		 - CAN high Input/Output - -
30
(G)		 Ground Reverse signal Input [Ignition switch ON]
  • R position
 7.0 V or more
[Ignition switch ON]
  • Other than R position
 3.0 V or less
31
(BG)		 Ground Ignition power supply Input Ignition switch ON Battery voltage
57
(R)		 Ground Camera power supply Output [Ignition switch ON] 6.2 V
58
(B)		 Ground Camera ground - Ignition switch ON 0 V
59
(B)		 87

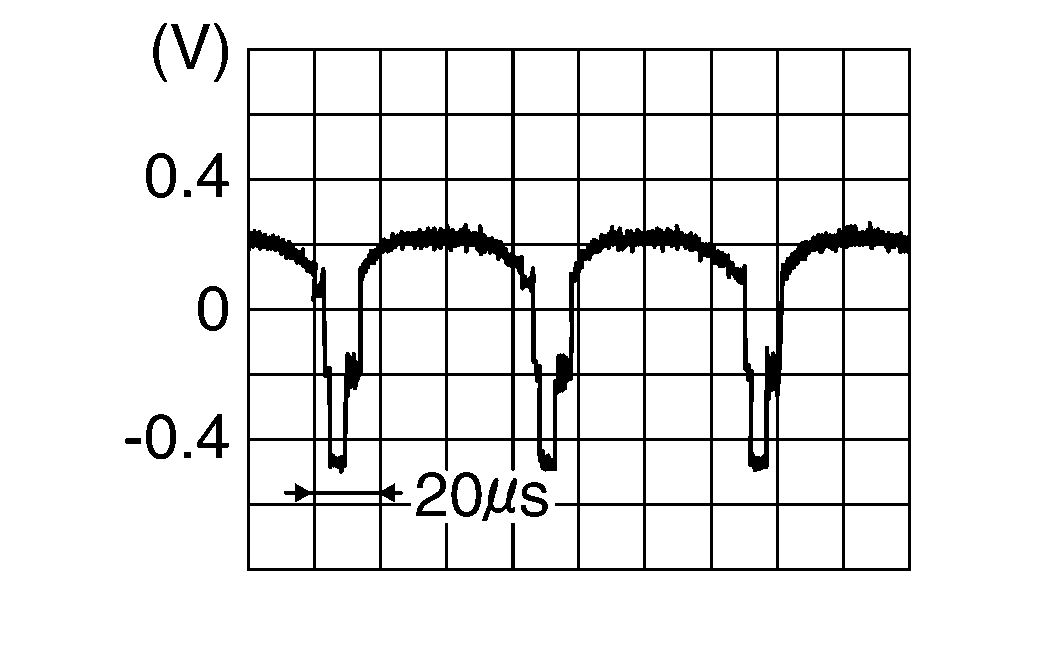

(B)		 Camera image signal (with around view monitor) Input [Ignition switch ON]
  • Image is displayed.
GNSSKIB0827E-827Courtesy of NISSAN NORTH AMERICA, INC.
59
(W)		 87
(B)		 Camera image signal (with rear view camera) Input [Ignition switch ON]
  • Image is displayed.
GNSSKIB0827E-827Courtesy of NISSAN NORTH AMERICA, INC.
60
(Shield)		 - Camera shield - - -
