Exploded View With Torque Specifications

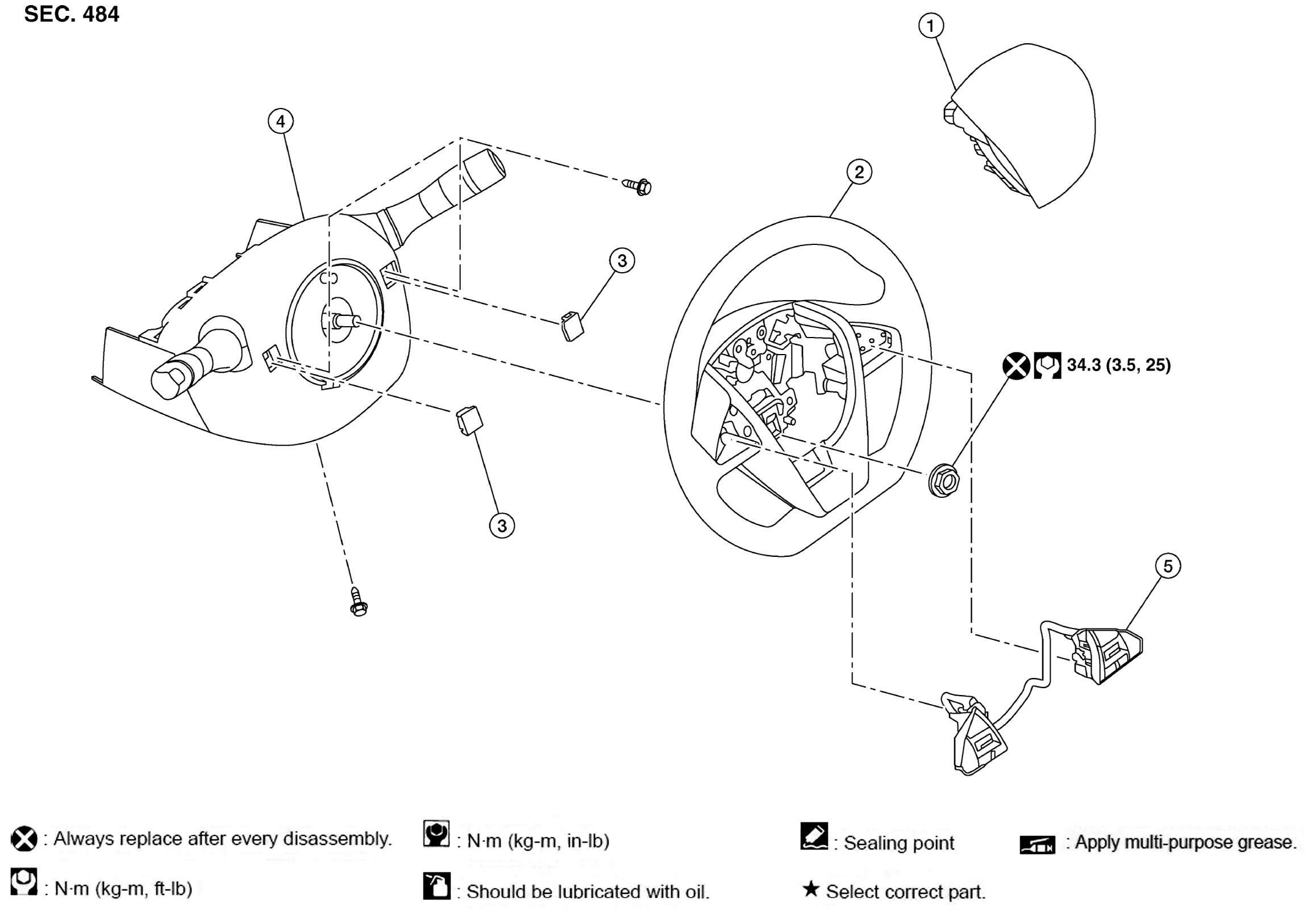

Fig 1: Exploded View Of Steering Wheel With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Driver air bag module
2.
Steering wheel
3.
Cover
4.
Steering column cover
5.
Steering wheel switches
Courtesy of NISSAN NORTH AMERICA, INC.
