Work Procedure

WRITE DOWN THE REGISTRATION CODE FROM THE NEW / REPLACEMENT AV CONTROL UNIT

On the replacement AV control unit's label, locate and write down the registration code (1).

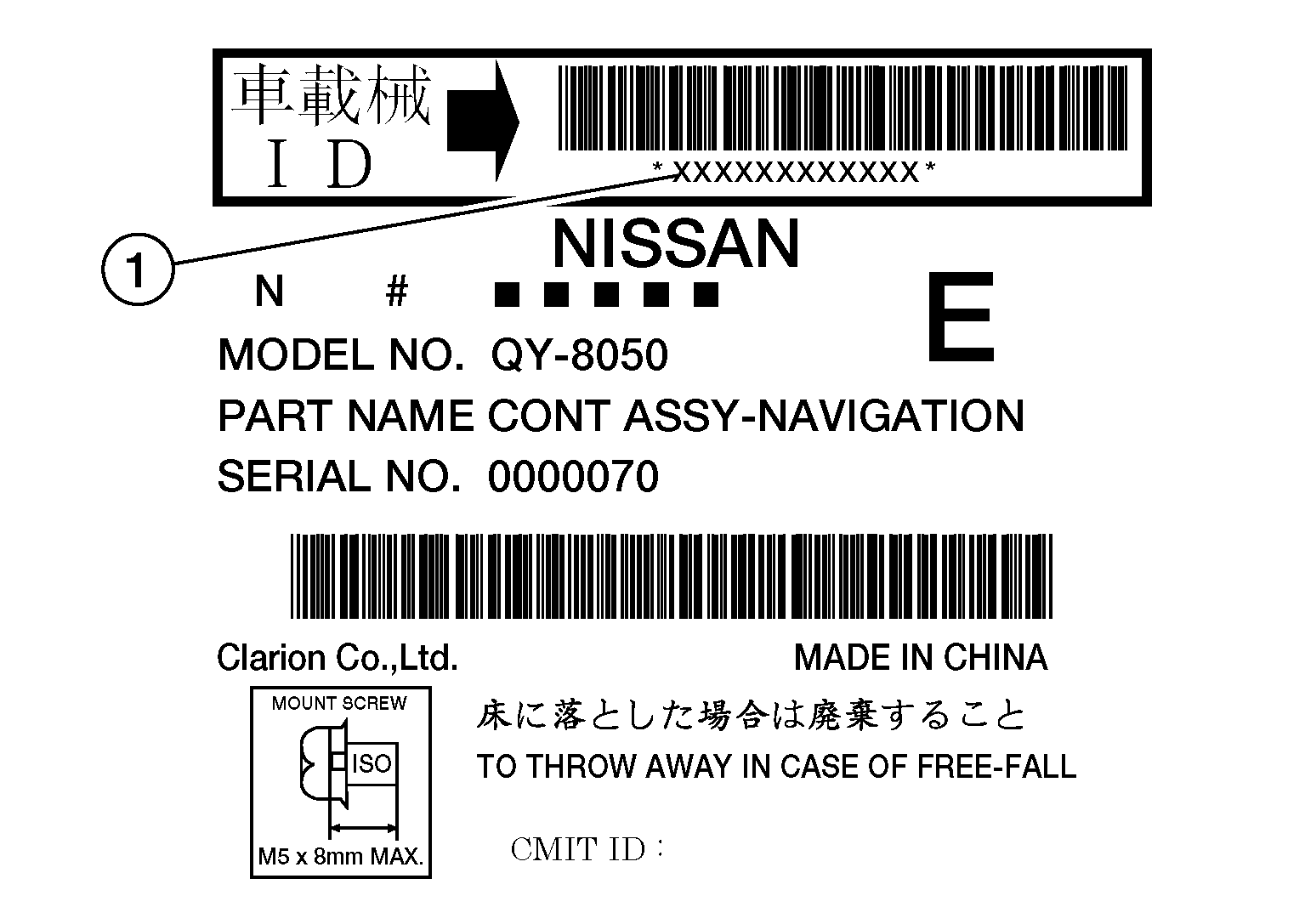

Fig 1: Locating Registration Code
Courtesy of NISSAN NORTH AMERICA, INC.

GO TO STEP 2 .

SAVING VEHICLE SPECIFICATION (AV CONTROL UNIT)

CONSULT Configuration

Perform "READ CONFIGURATION" to save or print current vehicle specification. Refer to DESCRIPTION .

NOTE:
If "READ CONFIGURATION" can not be used, use the "WRITE CONFIGURATION - Manual selection" after replacing AV control unit.

GO TO STEP 3 .

REPLACE AV CONTROL UNIT

Replace AV control unit. Refer to REMOVAL AND INSTALLATION .

GO TO STEP 4 .

CHECK REPLACEMENT AV CONTROL UNIT'S CONFIGURATION.
1. Place the radio into Self Diagnostic mode. Refer to ON BOARD DIAGNOSIS FUNCTION .
2. Select "Confirmation/Adjustment".
3. Select "Version Information".
4. If the "" matches the "ITM Part Number", GO TO 5.
5. If the "" does not match the "ITM Part Number", perform the "Factory Configuration Data Initialization" from the "Initialize Settings" menu under "Confirmation/Adjustment" to clear the factory configuration data.
GO TO STEP 5 .

WRITING VEHICLE SPECIFICATION (AV CONTROL UNIT)

CONSULT Configuration

Perform "WRITE CONFIGURATION - Config file" or "WRITE CONFIGURATION - Manual selection" to write vehicle specification. Refer to WORK PROCEDURE .

GO TO 6.

CLEAR DTC'S AND CHECK AV SYSTEM OPERATION.
1. Perform a " Self Diagnostic Result" for "MULTI AV" with CONSULT.
2. Clear any DTC's in Multi AV.
3. Verify operation of Multi AV system.
GO TO STEP 7 .

REGISTER THE REPLACEMENT AV CONTROL UNIT.

Perform AV control unit registration. Refer to WORK PROCEDURE .

Work End .
