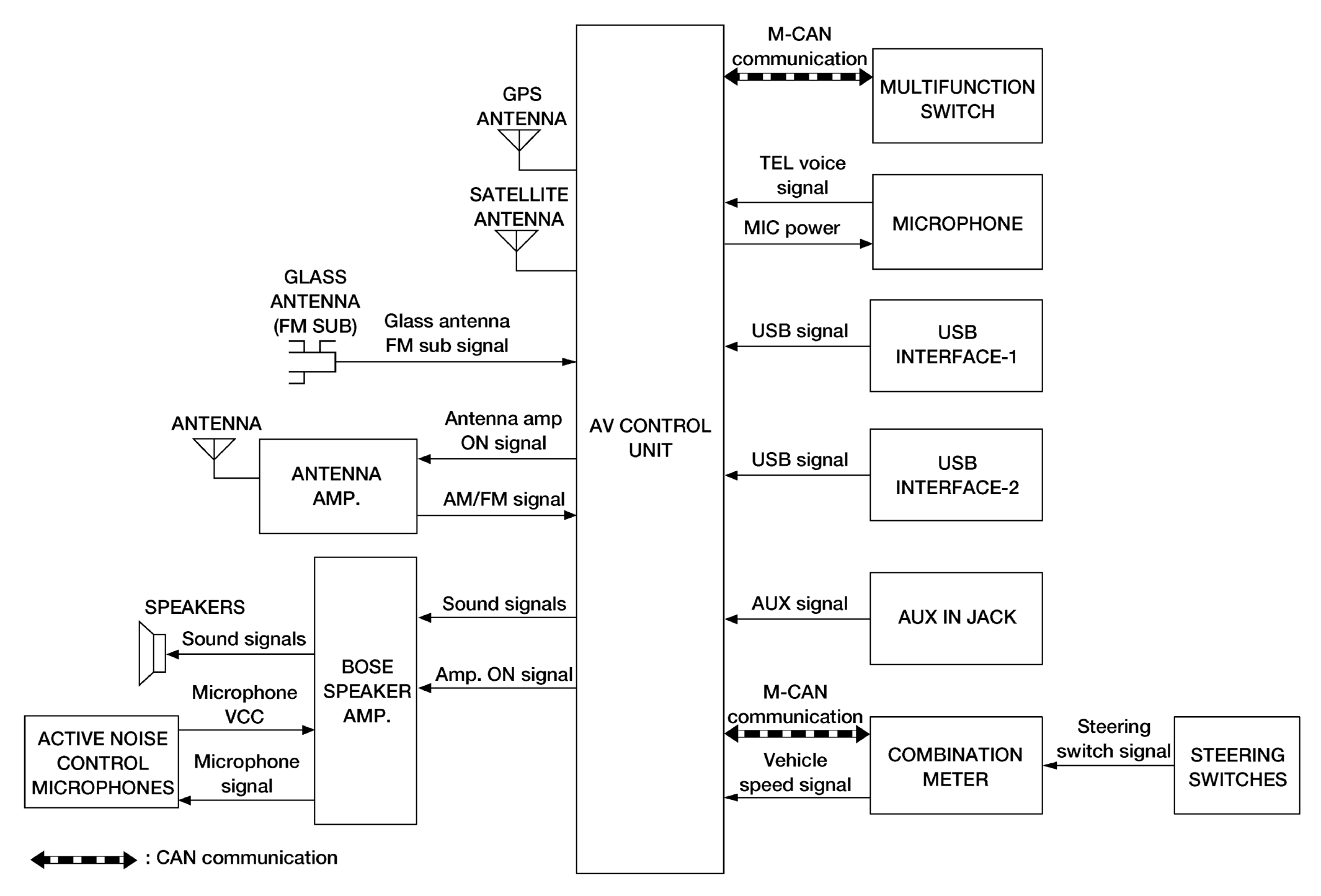

Home >> Nissan-Datsun >> 2016 >> Maxima SL >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Entertainment Systems >> Audio, Visual & Navigation System (Multi Av System) (Introduction, Wiring Diagrams And Basic Inspection) >> System Description >> Audio System >> With BOSE System >> System Description >> System Diagram
