Abs Actuator And Electric Unit (Control Unit): Notes

Electric unit (control unit) is integrated with actuator and comprehensively controls VDC function, TCS function, ABS function, EBD function and brake assist function.

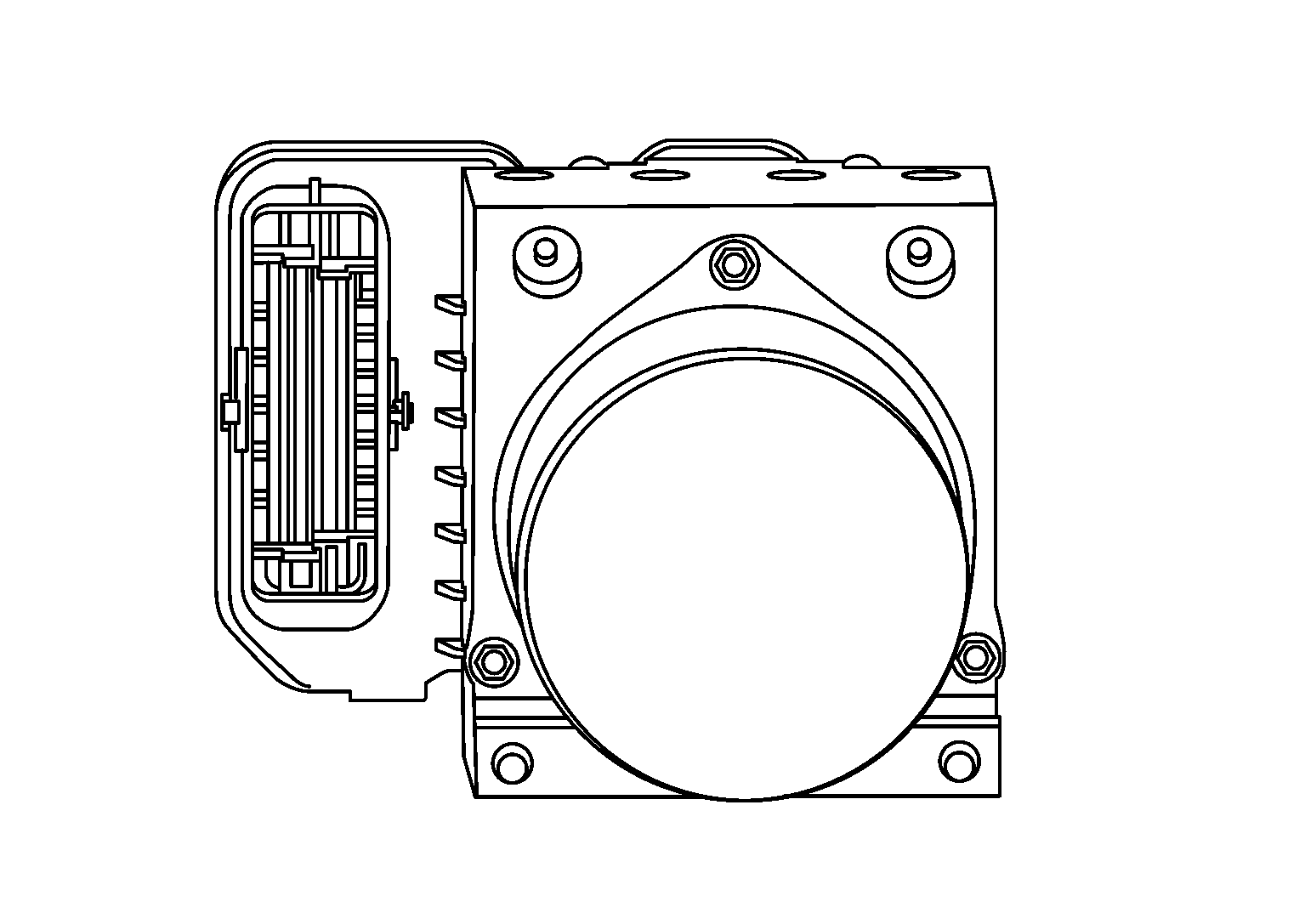

Fig 1: Identifying ABS Actuator And Electric Unit (Control Unit)

Courtesy of NISSAN NORTH AMERICA, INC.
