Repair and Diagnosis (Single Page)
>>
Heating, Ventilation & A/C (HVAC)
>>
HVAC Control Systems
>>
Heater & Air Conditioning Control System
>>
System Description
>>
Operation
>>
Switch Name And Function
>>
Control Operation
>>
A/C Switch Assembly
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
A/C Switch Assembly

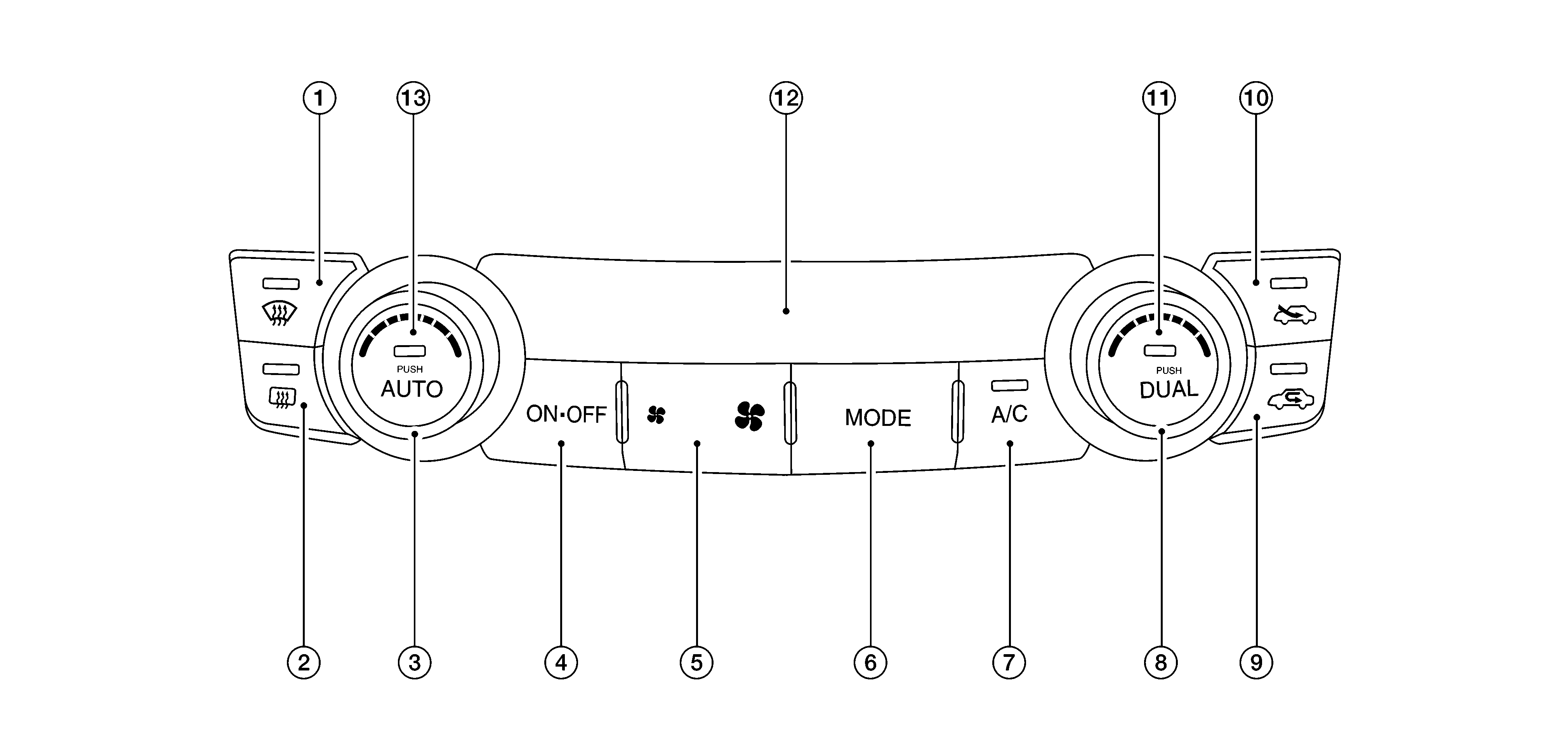

Fig 1: Identifying A/C Switch Assembly (With Auto A/C)
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Defroster switch
2.
Rear window defogger switch
3.
Temperature control dial (driver side)
4.
ON/OFF switch
5.
Fan control switch
6.
MODE switch
7.
A/C switch
8.
Temperature control dial (passenger side)
9.
Recirculation switch
10.
Fresh air switch
11.
DUAL switch
12.
Display
13.
AUTO switch
