Exploded View With Torque Specifications

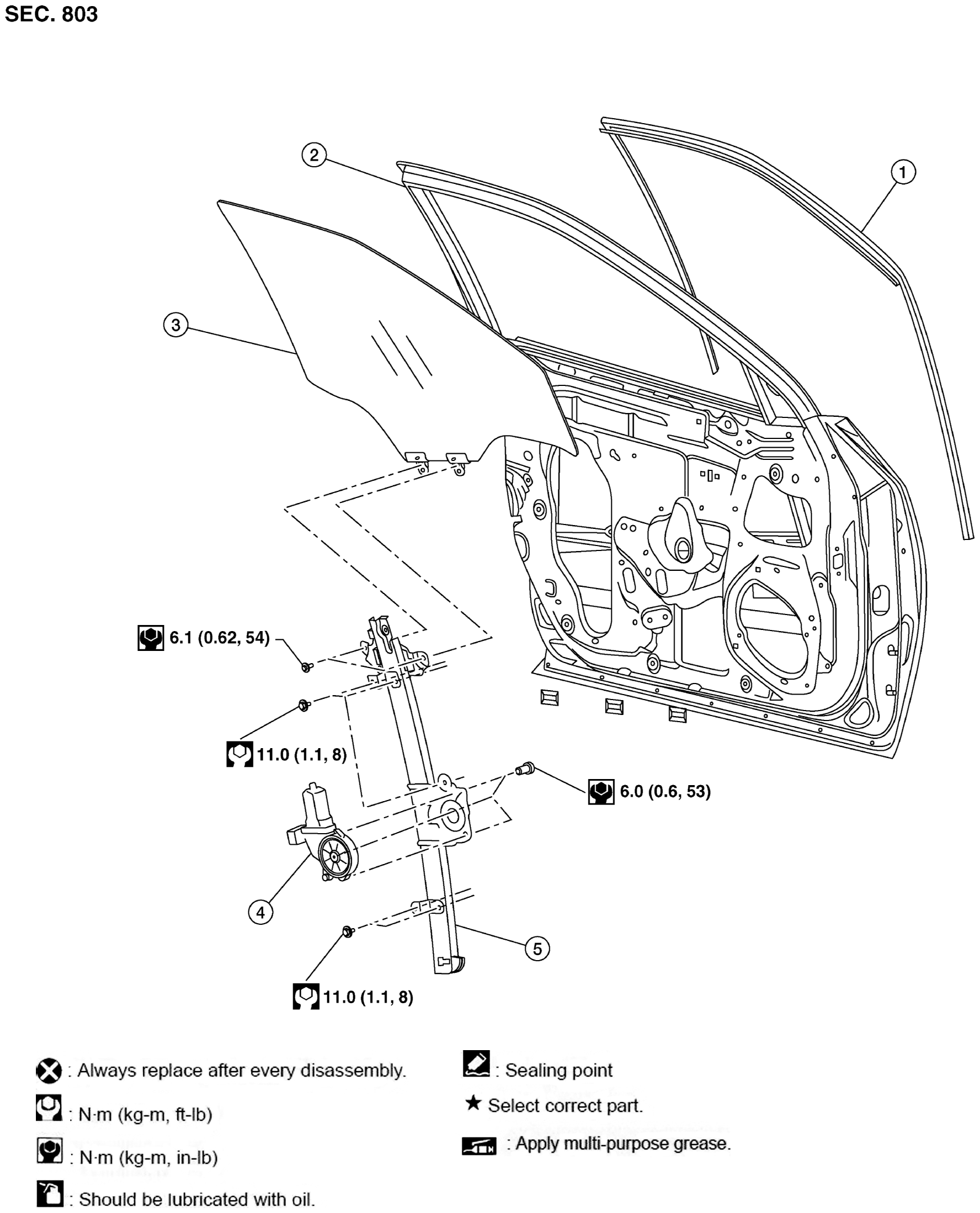

Fig 1: Exploded View Of Front Door Glass And Regulator With Torque Specifications
GNSAWKIA3522ZZ-522Courtesy of NISSAN NORTH AMERICA, INC.
1. Door glass rubber run 2. Door 3. Door glass
4. Front power window motor 5. Door glass regulator
