Exploded View With Torque Specifications

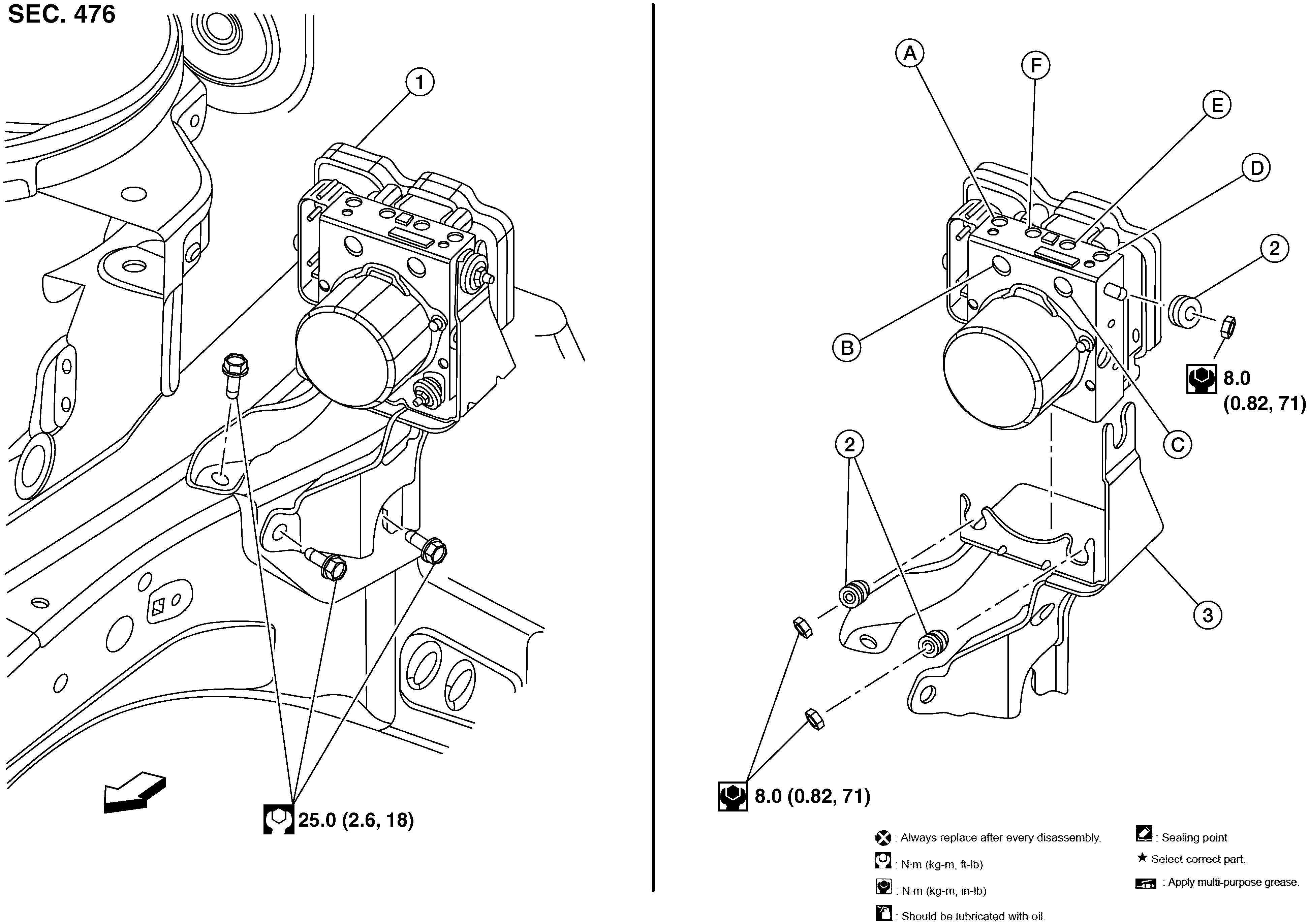

Fig 1: ABS Actuator And Electric Unit (Control Unit) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	ABS actuator and electric unit (control unit)	2.	Bushings	3.	Bracket
A.	To rear RH brake caliper	B.	From master cylinder secondary side	C.	From master cylinder primary side
D.	To rear LH brake caliper	E.	To front RH brake caliper	F.	To front LH brake caliper
	Front
