Exploded View With Torque Specifications

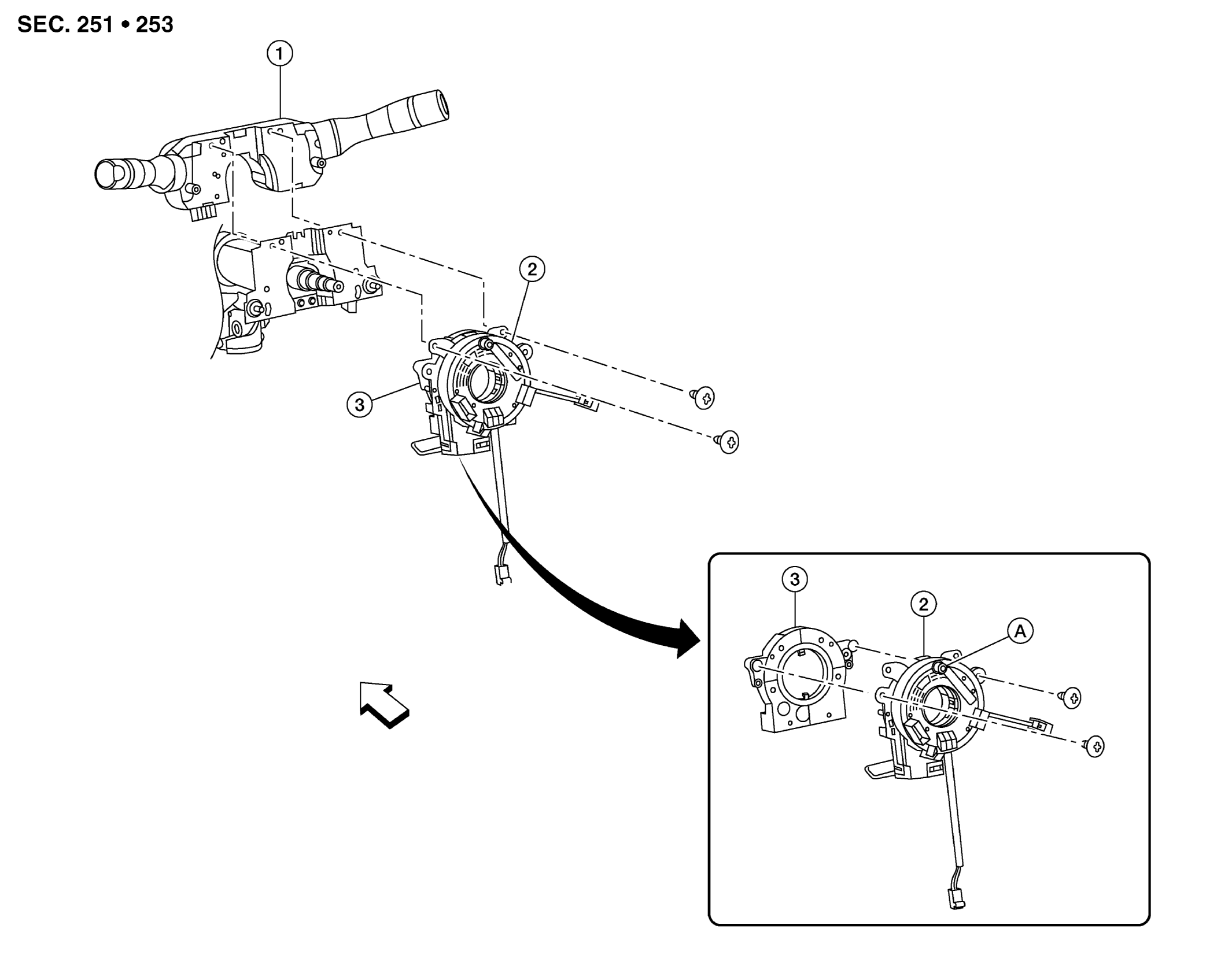

Fig 1: Exploded View Of Spiral Cable And Steering Angle Switch
GNSAWHIA0823ZZ-823Courtesy of NISSAN NORTH AMERICA, INC.
1. Combination switch 2. Spiral cable 3. Steering angle sensor
A. Locating pin ARROW Front
