Exploded View With Torque Specifications

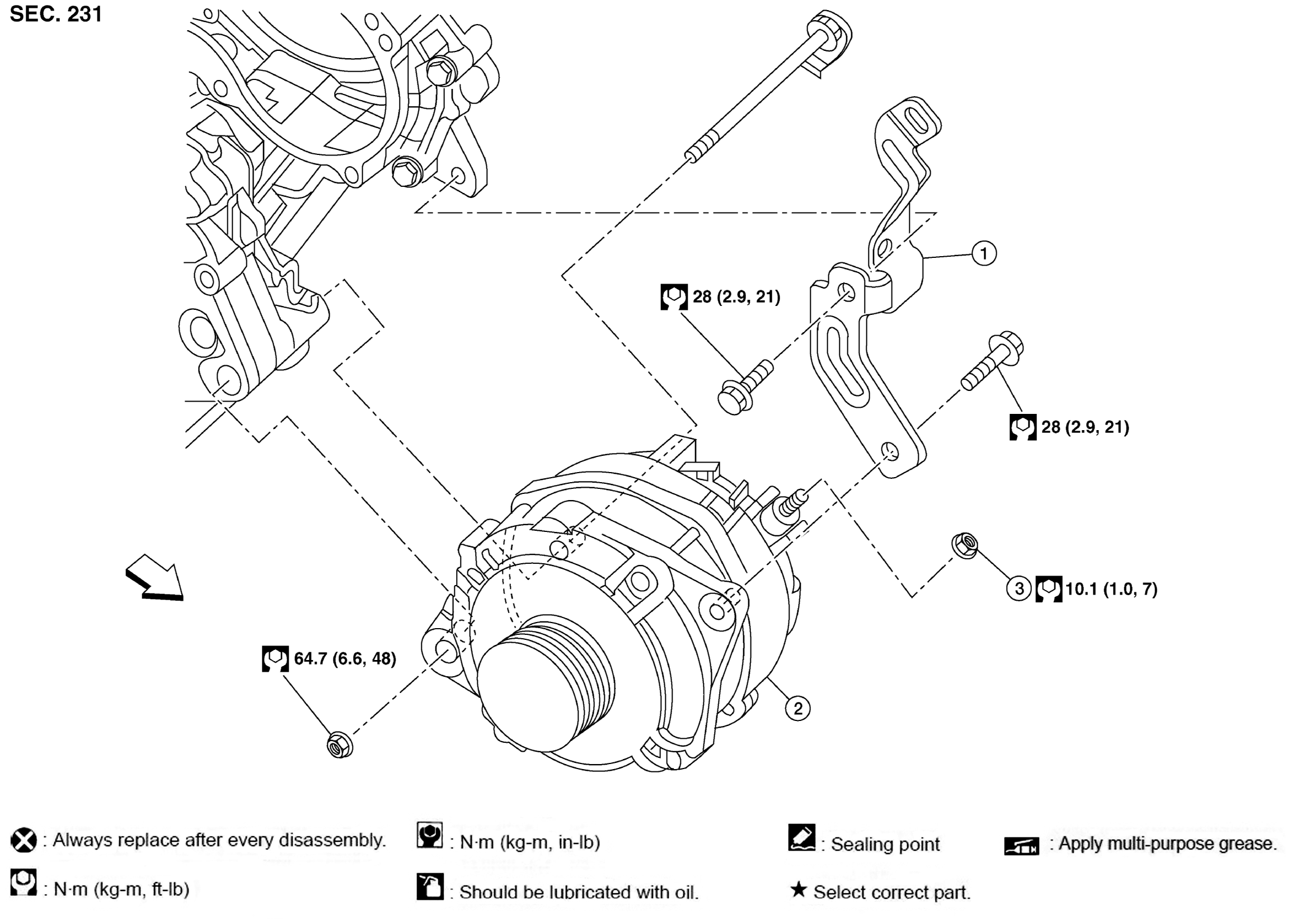

Fig 1: Exploded View Of Alternator With Torque Specifications
GNSAWBIA2726ZZ-726ARROWCourtesy of NISSAN NORTH AMERICA, INC.
1. Generator bracket 2. Generator 3. "B" terminal nut
ARROW Front
