Exploded View With Torque Specifications

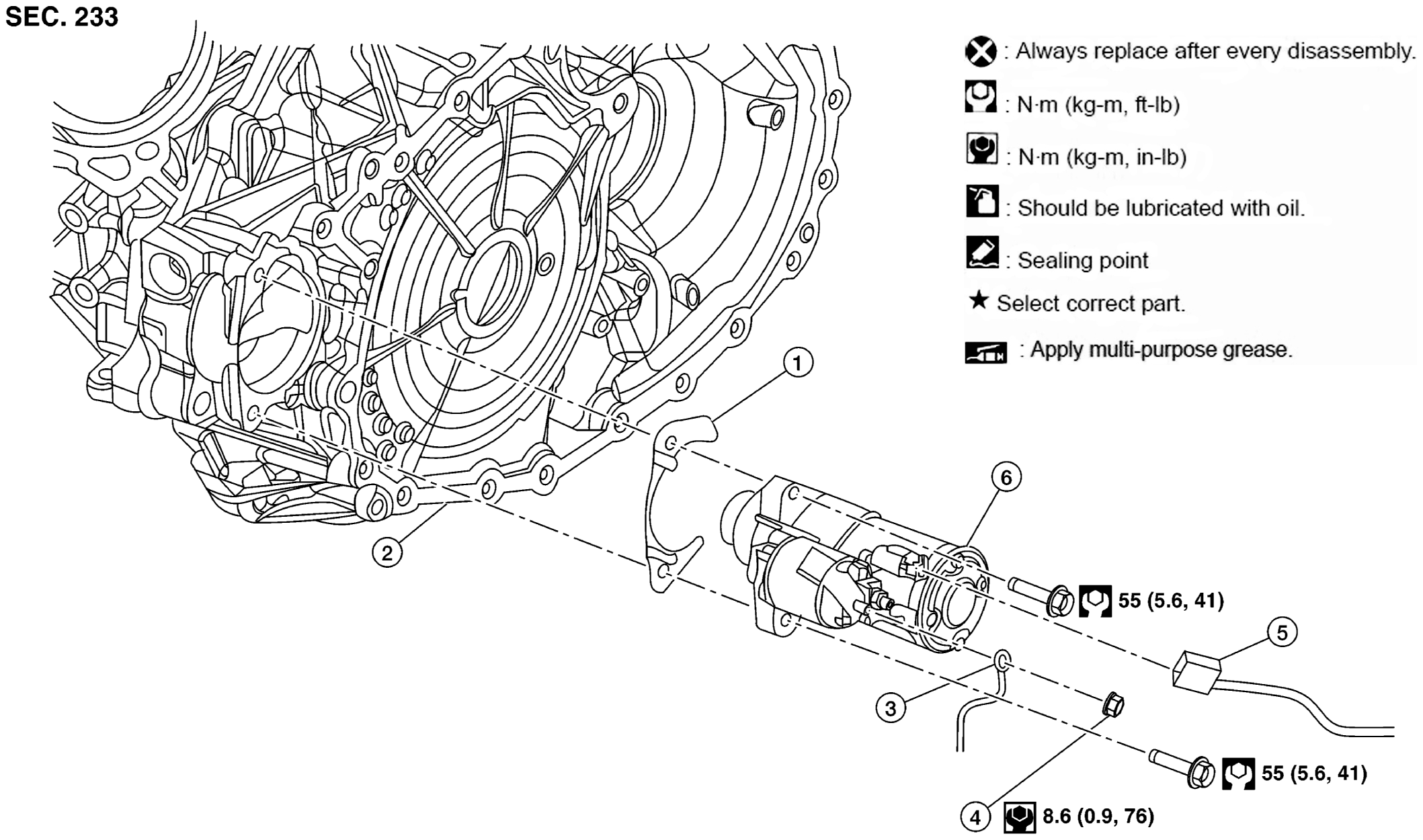

Fig 1: Exploded View Of Starter Motor With Torque Specifications
GNSAWBIA2722ZZ-722Courtesy of NISSAN NORTH AMERICA, INC.
1. Shim 2. Converter housing 3. "B" terminal harness
4. "B" terminal nut 5. Starter harness connector 6. Starter motor
