Exploded View With Torque Specifications

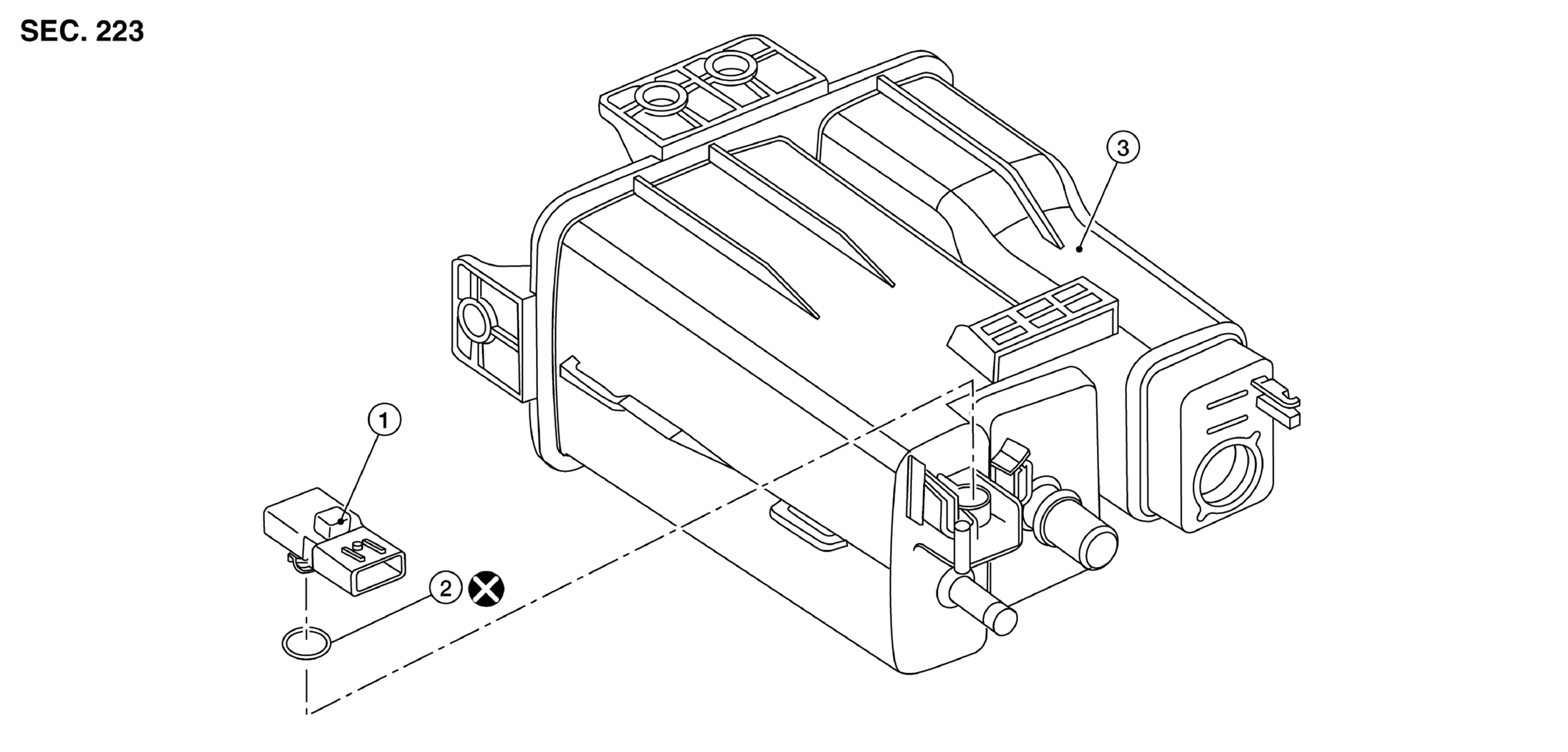

Fig 1: Exploded View Of EVAP Control System Pressure Sensor
GNSALBIA0753ZZ-753Courtesy of NISSAN NORTH AMERICA, INC.
1. EVAP control system pressure sensor 2. O-ring 3. EVAP canister
